GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
8-70 Section 8-6 - RX Board (FRU P/N: 5315027)
Section 8-6 RX Board (FRU P/N: 5315027)
8-6-0-1 Tools
• Common Phillips screwdrivers
8-6-0-2 Needed Manpower
• 1 person, 30 minutes
8-6-0-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-6-0-4 Removal Procedure
1) Remove the connector board assembly. Refer section 8-5-5 on page 64
2) Loosen the Five screws (1,2,3,4,5,) of TX board from the system. Refer Figure 8-76 on page 8-68
3) Remove the Tx board from the system. Refer Figure 8-76 on page 8-68

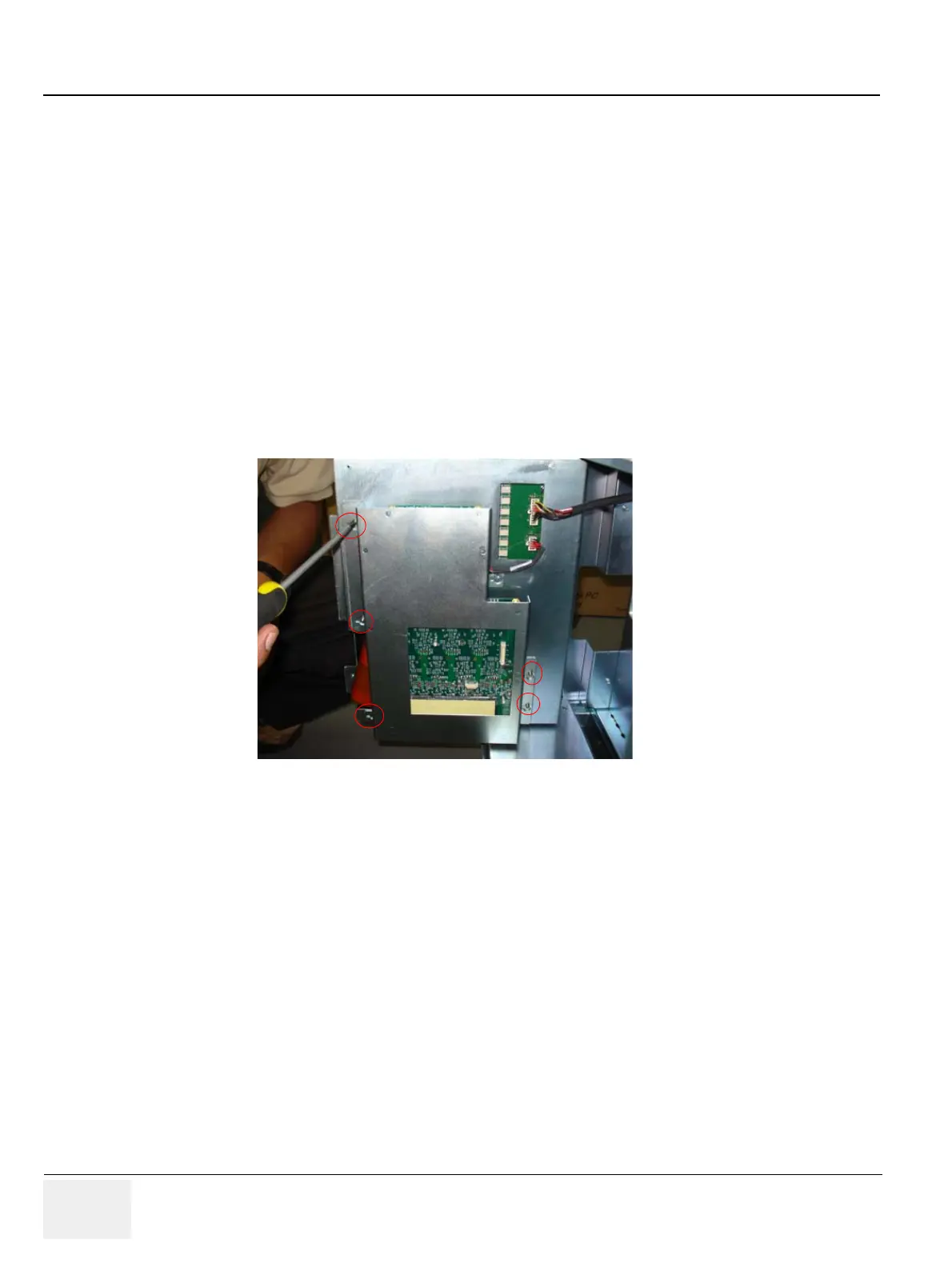

Figure 8-77 TX board Assembly
4) Remove the Tx conn board cable, Refer Figure 8-78 on page 8-71
To Next Page
