GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-51
7) Remove the Power cable from MST board Refer Figure 8-59 on page 8-51

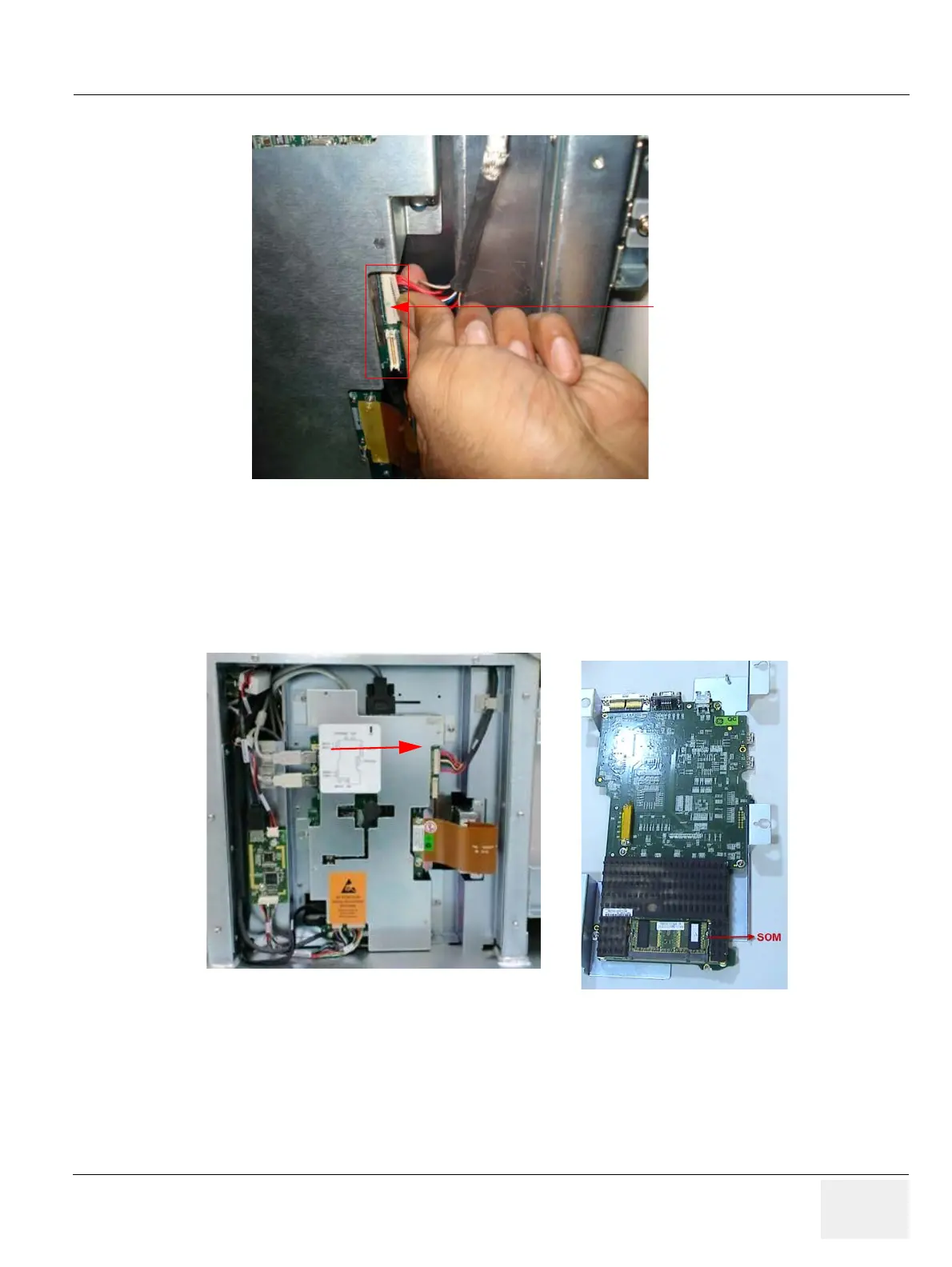

Figure 8-59 Removing Power cable of MST board
8) Loosen the 4 screws and slide the MST assembly as shown in the Figure below.
After removing the MST PCB on the other side remove the four screws to remove SOM as shown in
Figure.
Figure 8-60 MST Assy (LOGIQ P3BT10)
8-4-10-5 Mounting procedure
Install the new parts in the reverse order of removal.
