8-62 Section 8-5 - USB Cable Set (FRU P/N: 5315039)
4) Remove Rear panel assembly from the system Slide upwards as shown below Figure 8-69 on page
8-62

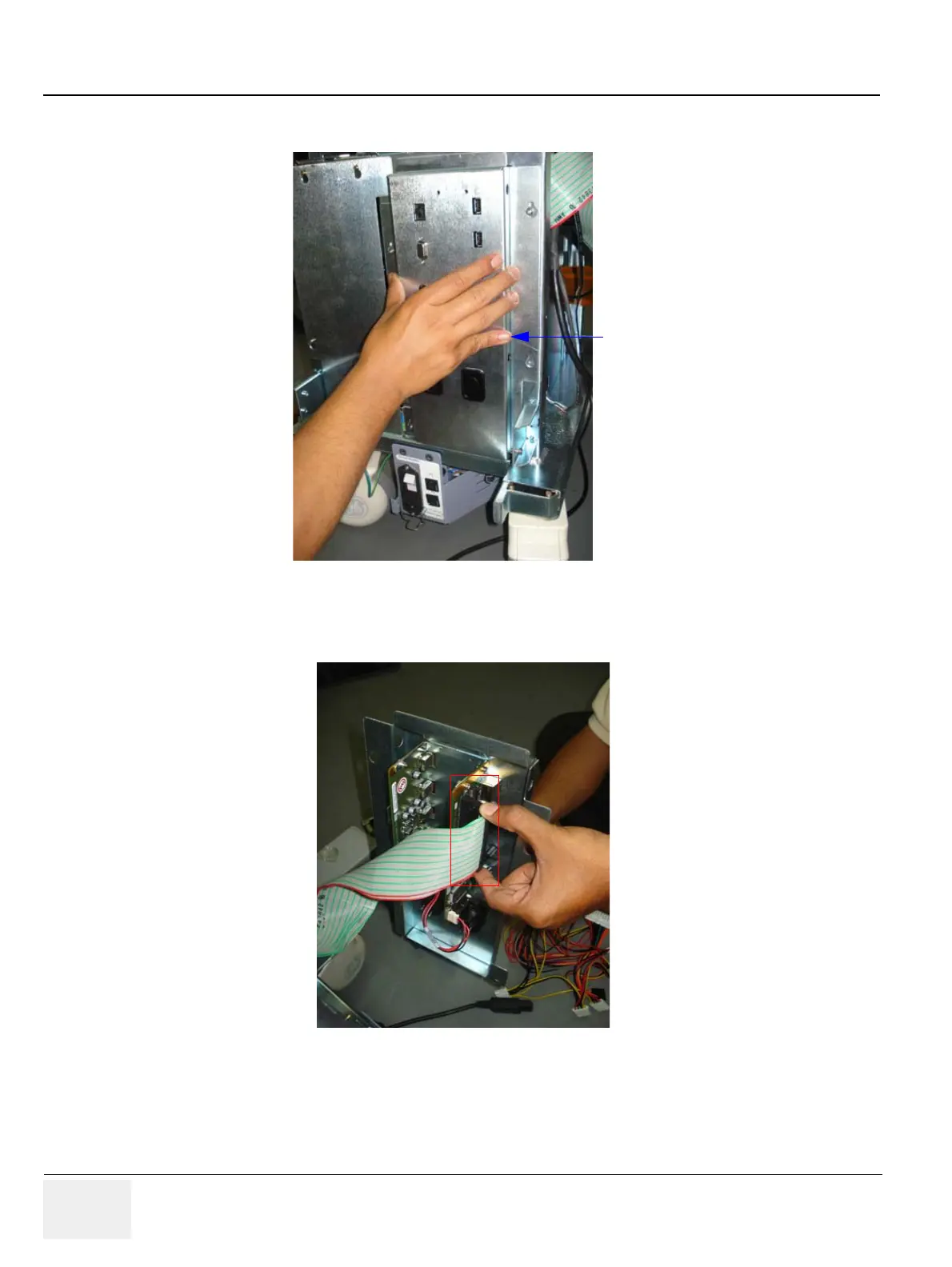

Figure 8-69 Removing Rear panel assembly
5) LOGIQ P3 - Disconnect the FRC cable, Power cable & USB Cables from rear pannel assembly.
Refer Figure 8-70 on page 8-62
Figure 8-70 Removing FRC & USB cables
8-5-4-5 Mounting procedure
1.) Install the new parts in the reverse order of removal.
