GE PROPRIETARY TO GE
D
IRECTION 5308917-100, REVISION 8 LOGIQ P3 SERVICE MANUAL
Chapter 8 Replacement Procedures 8-43
8-4-7 Rear EMI Cover (Part of EMI Cover Assy FRU P/N: 5315111)
This is a description on how to remove and replace the Rear EMI Cover (P/N: 5308951 - Not a FRU).
8-4-7-1 Tools
• Common phillips screwdrivers
8-4-7-2 Needed Manpower
• 1 person, 15 minutes
8-4-7-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-4-7-4 Removal Procedure
1) Remove Right cover. Refer section 8-4-3 on page 35 for details on how to remove Right cover.
2) Remove rear cover. Refer section 8-4-3 on page 35
3)Use the scewdriver and Loose the Five screws (1,2,3,4,5)
4) Remove Rear-side EMI cover. Refer Figure 8-49 on page 8-43 for details on how to remove Rear
cover.

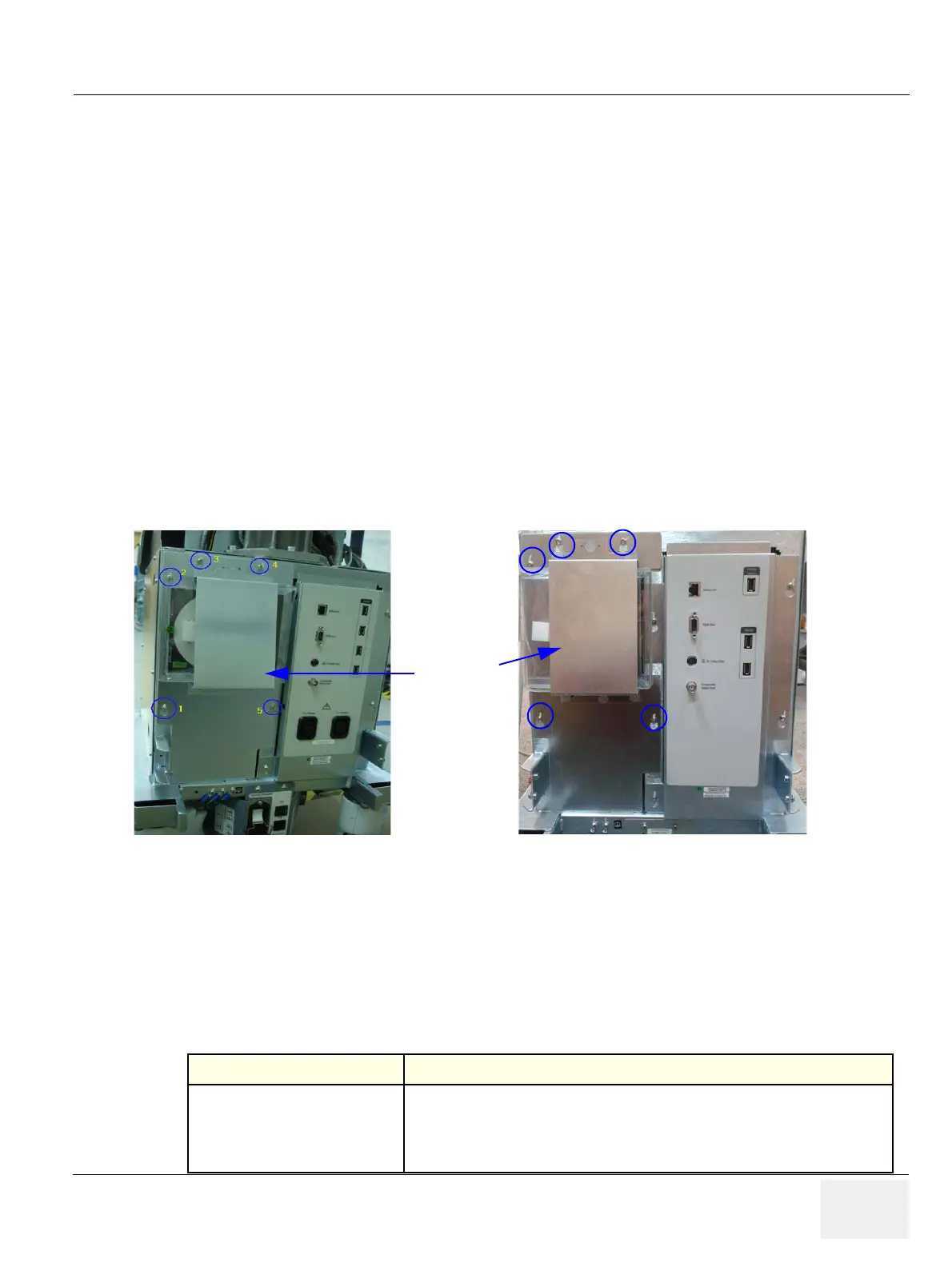

Figure 8-49 Rear-side EMI cover
8-4-7-5 Mounting procedure
Install the new parts in the reverse order of removal
8-4-7-6 Functional Checkout Procedure
Functional Test Debrief Script
Do Visual Inspection and ensure
no scratches observed and
fitment is done properly
Service Manual Direction 5308917-100, Section 8-4-7. Equipment passes all required
tests and is ready for use.
Rear-side
EMI cover
LOGIQ P3
LOGIQ P3 BT
