8-2-8 Keyboard Assembly for LP3 BT (FRU P/N: 5412217-1)
This is a description on how to remove and replace the keyboard Assembly.
8-2-8-1 Tools
• Common Torx screwdrivers
8-2-8-2 Needed Manpower
• 1person, 10 minutes
Note: The Freeze key is part of Keyboard.
8-2-8-3 Preparations
• Shutdown the system and switch off the main Circuit Breaker at the bottom rear side of the system.
8-2-8-4 Removal Procedure
1) Unscrew the three screws (A,B,C) of keyboard bottom cover of the system.

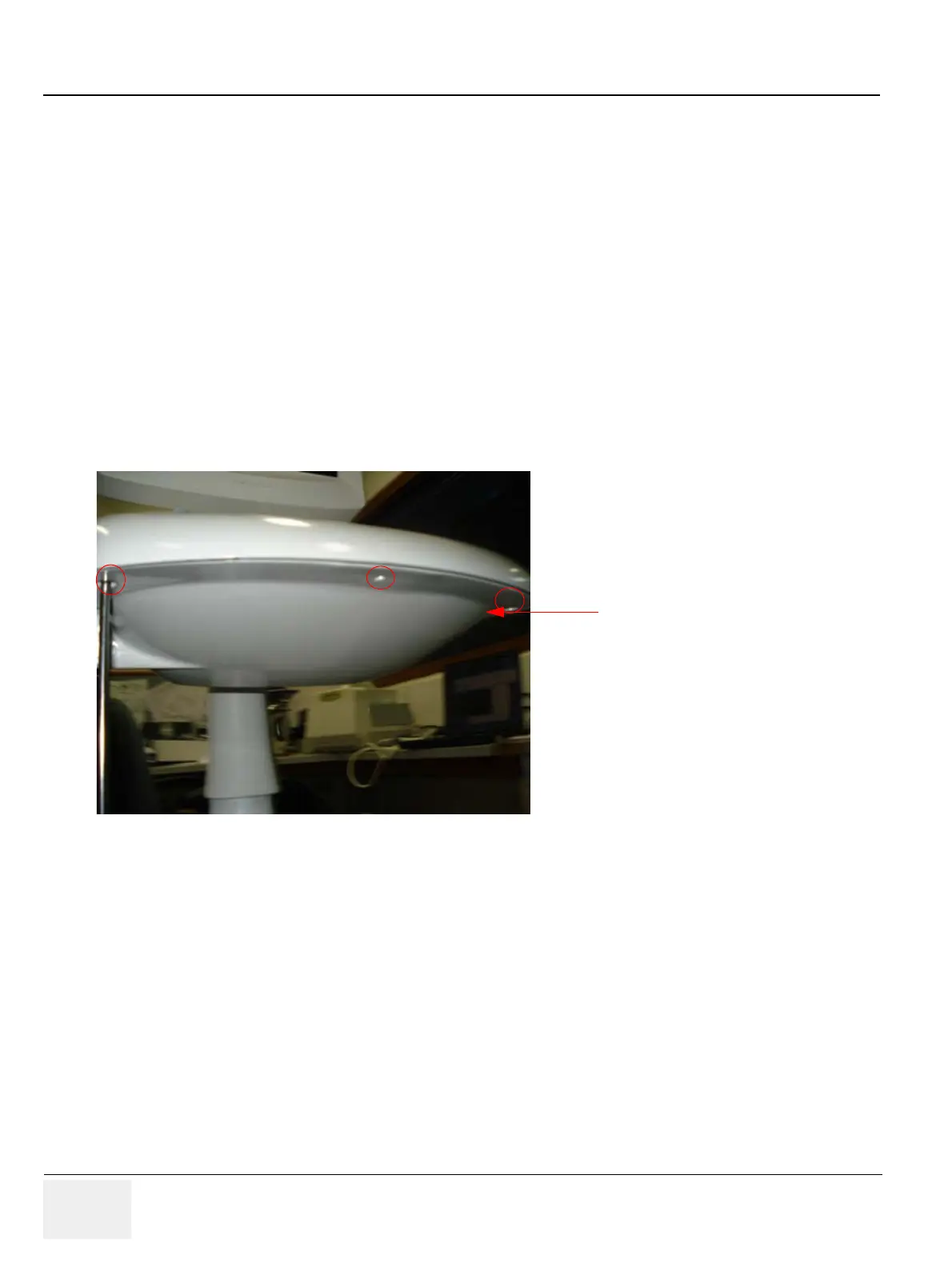

Figure 8-15 Keyboard Bottom view
B
C
Remove the three screws as shown.
A
