Chapter 4 - Functional Checks 4-13
For further details refer to the Voluson® P8 / Voluson® P6 Basic User Manual, Chapter 7, M Mode.
4-4-2-1 MCF Mode Check
For further details refer to the Voluson® P8 / Voluson® P6 Basic User Manual, Chapter 7.4.
12
ENHANCE Due to this function a finer, sharper impression of the image is produced.
13
DYNAMIC CONTROL.
Dynamic Range enhances a part of the grayscale to make it easier to display pathology.
14
DISPLAY FORMAT
For selection of different rations of display format.
15
Gray Map Common with 2D Mode Gray Map
16
F2 After pressing [F2], the menu area changes to the “Utilities” menu.
By pressing the M control and the CF control, the MCF mode is switched on in the preparation mode.
The M-cursor with M-Color window appears on the active 2D image.

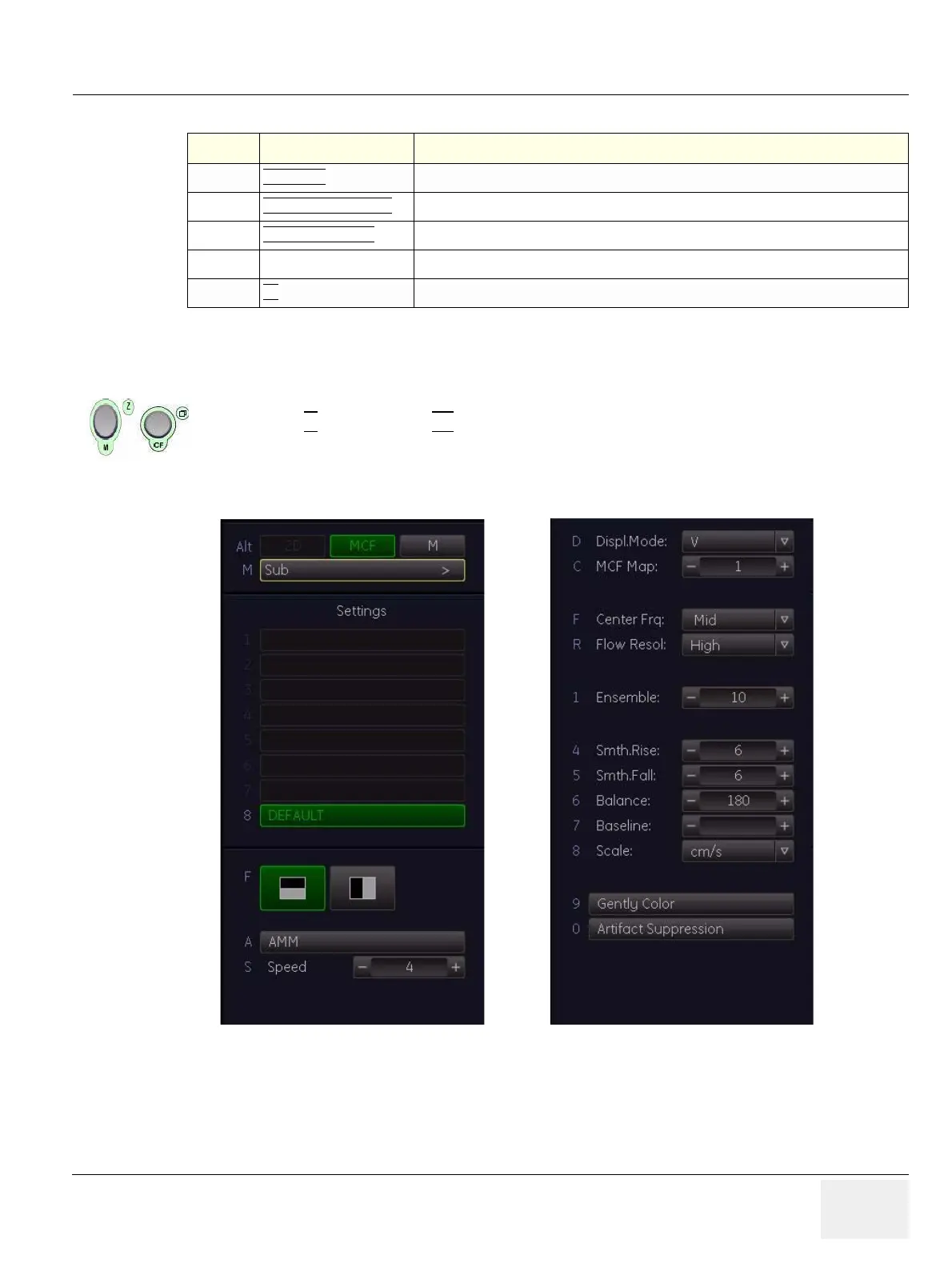

Figure 4-10 MCFM Main and MCFM Sub Menu
Table 4-4 M Mode Functions
Step Task Expected Results
