8-40 Section 8-17 - Replacement of SIDE COVER L ASSY
Section 8-17
Replacement of SIDE COVER L ASSY
8-17-1 Manpower
One person, 5 minutes
8-17-2 Tools
Philips Screwdriver
8-17-3 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
8-17-4 Removal Procedure

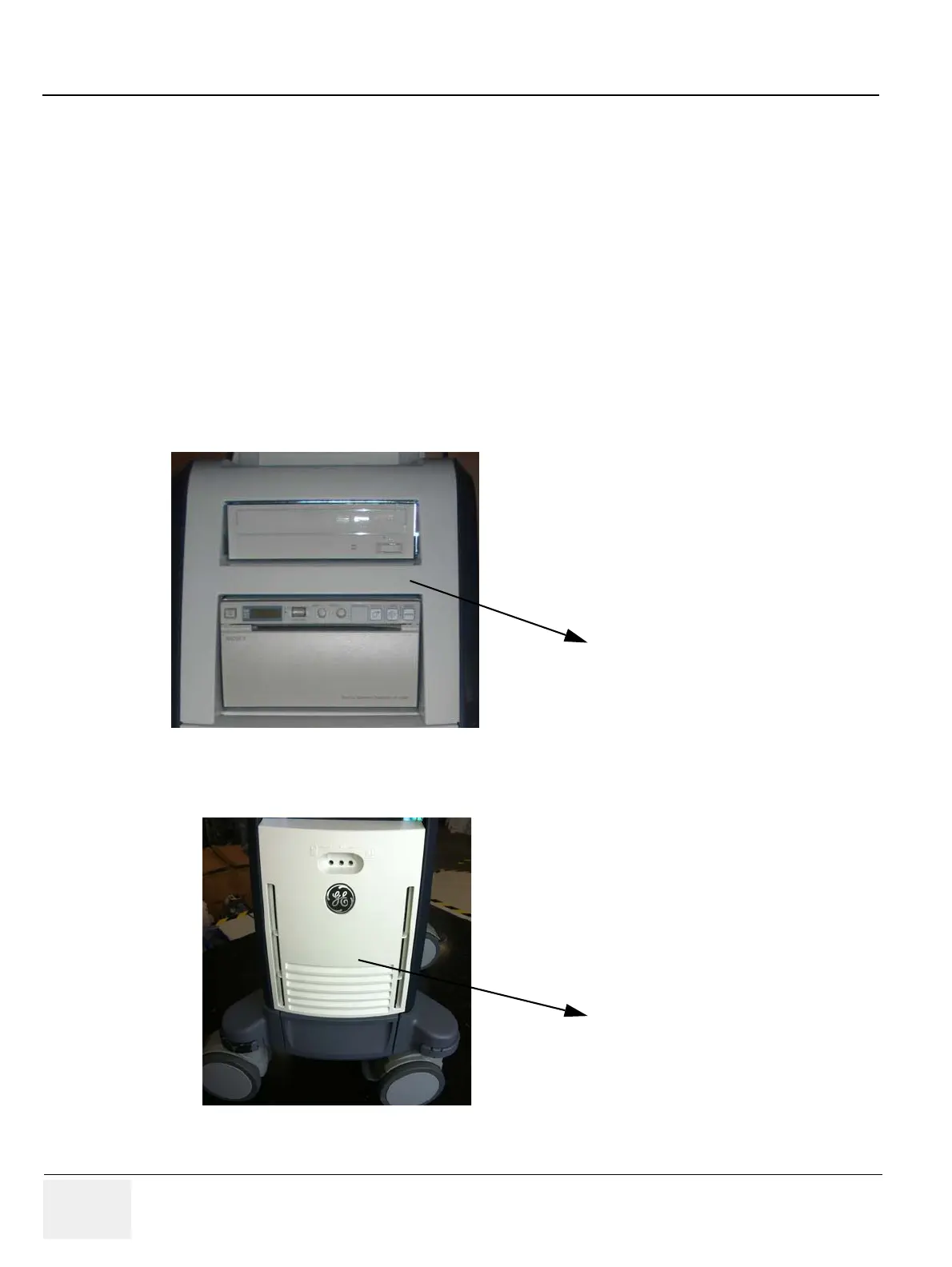

1.) Pull out the MID CABINET ASSY. Refer to the figure below.
2.) Pull out the FRONT COVER ASSY. Refer to the figure below.
Figure 8-47 Removing the MID CABINET ASSY
Figure 8-48 Removing the FRONT COVER ASSY
MID CABINET ASSY
FRONT COVER ASSY
