Chapter 8 - Replacement Procedures 8-103
8-41-5 VERTICAL TV PROBE HOLDER Installation
1.) Install VERTICAL TV PROBE HOLDER BASE on the right side bottom of OPIO with 2 screws.
2.) Place the TV PROBE HOLDER RUBBER on the PROBE HOLDER BASE.
3.) Perform: FRU8-43: Replacement of FULL AN KEY - Functional Tests.

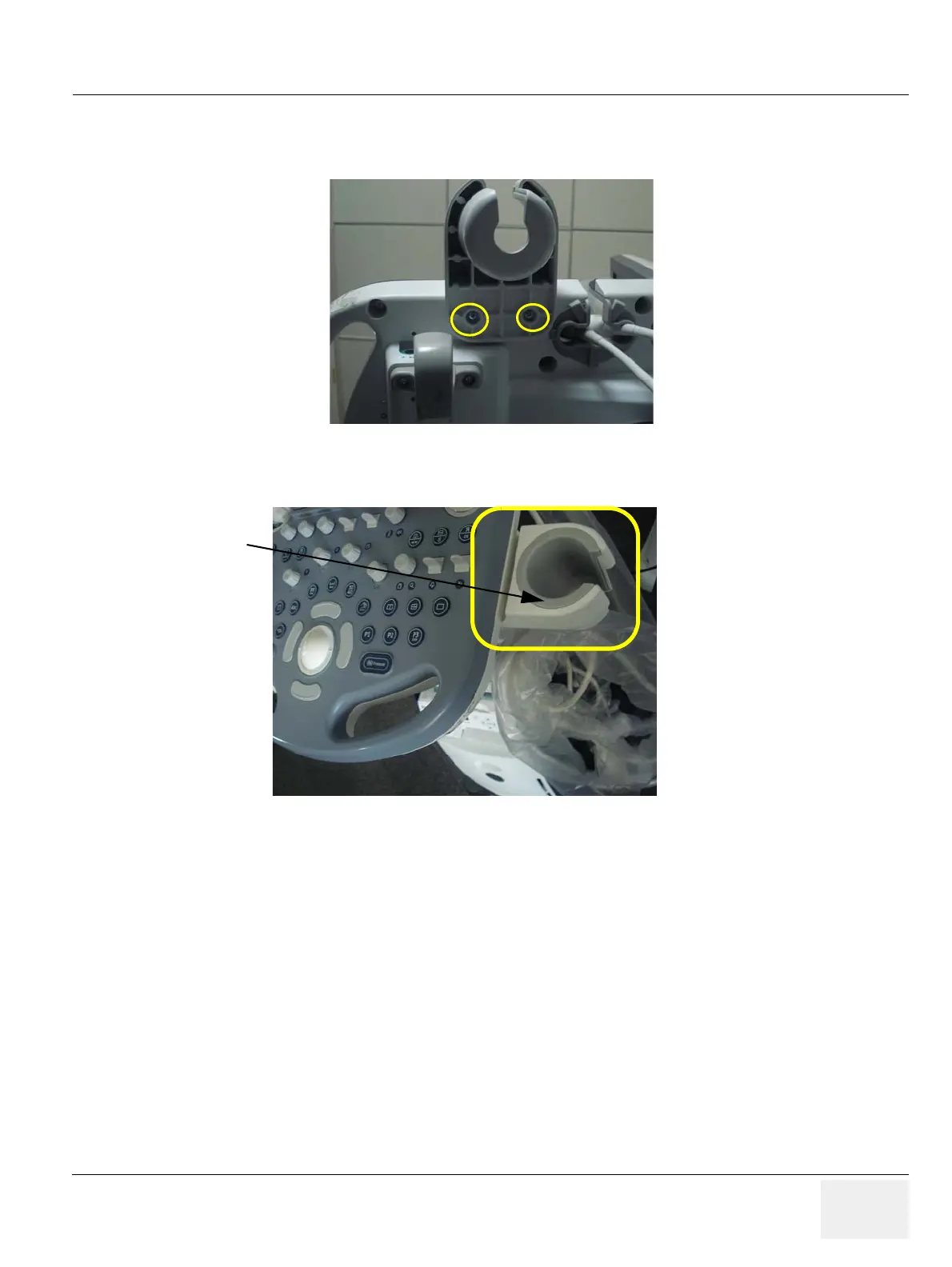

Figure 8-131 Assemble TV PROBE HOLDER BASE with 2 screws (2159634, BH M4x10)
Figure 8-132 Insert TV PROBE HOLDER RUBBER to PROBE HOLDER BASE
TV PROBE
TV PROBE
HOLDER BASE
HOLDER
RUBBER
