Chapter 9 - Renewal Parts 9-15
Section 9-12
Probes
Table 9-11 below outlines the replacement parts described in the sub-sections.
9-12-1 2D-Probes - Curved Array Transducers
Table 9-11 Probes - Replacement Parts
Sub-section Description Page Number
9-12-1
2D-Probes - Curved Array Transducers
9-15
9-12-2
2D-Probes - Linear Array Transducer
9-16
9-12-3
Real-Time 4D Volume Probes
9-17

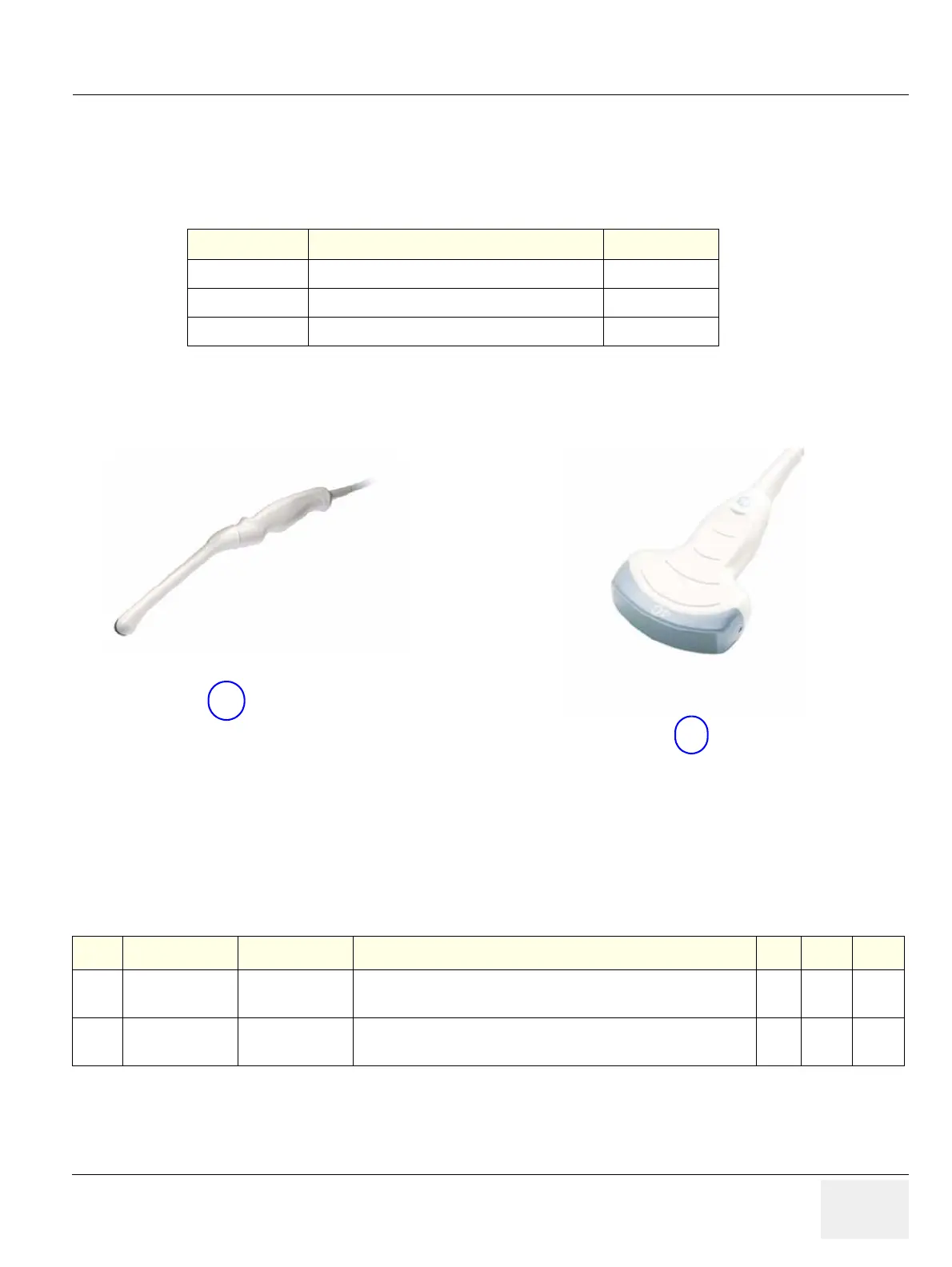

Figure 9-8 2D curved array Transducers
Table 9-12 2D curved array Transducers
Item Part Name Part Number Description Qty CRU FRU
801
E8C-RS 2290777
Micro Convex transducer 4.0 - 12.0 MHz, 128 Elements
Applications: OB, Gyn, Fetal Cardio, Urology
-1 1
802
4C-RS 5131629
broadband curved array transducer, 2.0 - 5.0 MHz, 128
Elements Applications: Abdominal, Obstetrics, Gynecology
-1 1
801
802

GE Voluson P8 Specifications

General

Category	Ultrasound System
Probe Ports	3 active probe ports
DICOM	Yes
Power Requirements	100-240 VAC, 50/60 Hz
Applications	Obstetrics, Gynecology
Imaging Modes	Color Doppler, Power Doppler
Connectivity	Ethernet, USB
Operating System	Windows-based
