2-8 Section 2-3 - Facility Needs
2-3-3-1 Recommended Ultrasound Room Layout

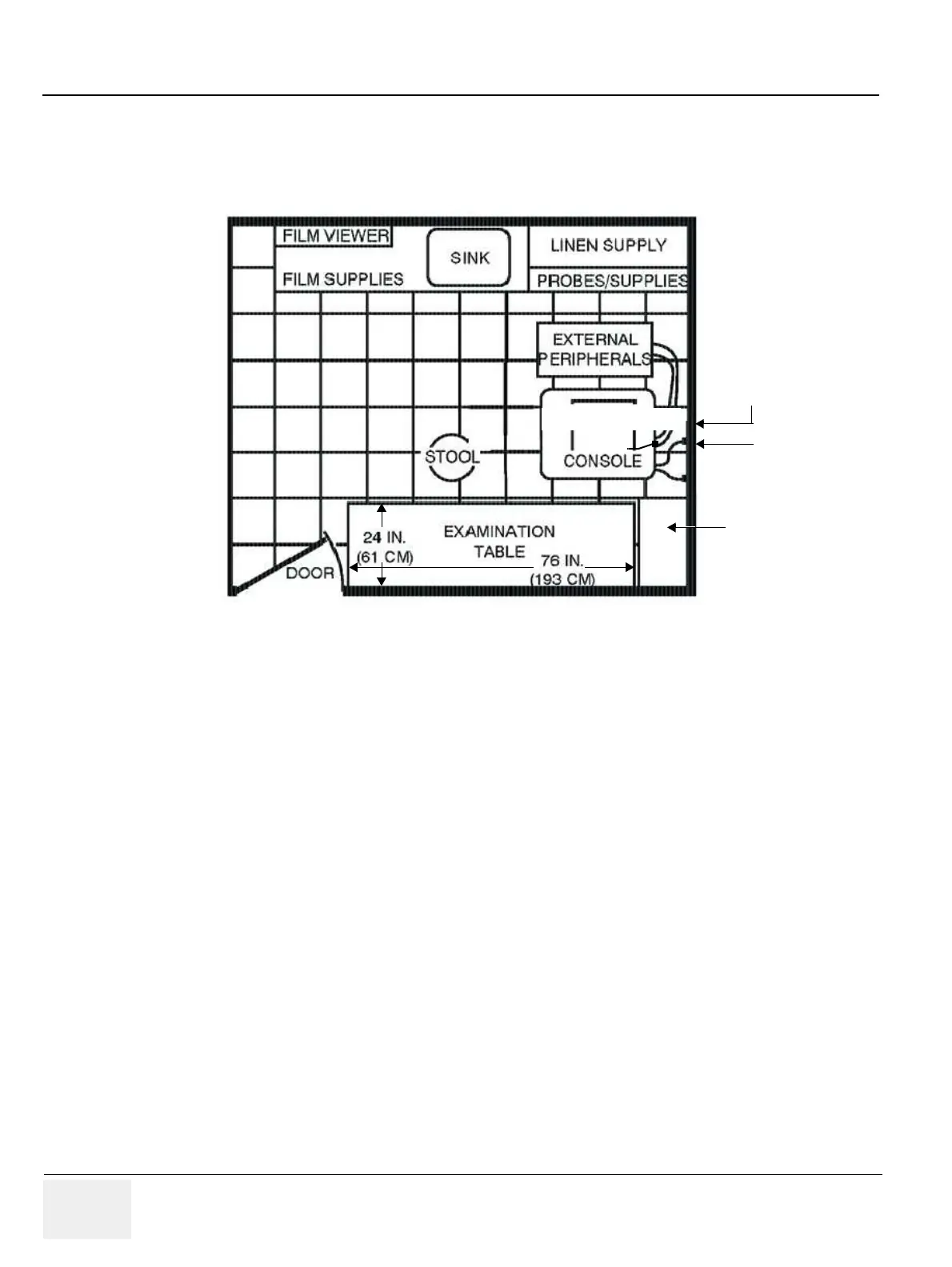

Figure 2-1 below shows a floor plan illustrating the recommended layout of the Ultrasound Room and
depicting the minimal room layout requirements.
Figure 2-1 Recommended Floor Plan 4.3m x 5.2m (14ft x 17ft)
35.5 IN.
(92 CM)
Dedicated Power Outlets
Hospital Network
Cabinet for
Software and Manuals
(optional)
VOLUSON P6/P8

GE Voluson P8 Specifications

General

Category	Ultrasound System
Probe Ports	3 active probe ports
DICOM	Yes
Power Requirements	100-240 VAC, 50/60 Hz
Applications	Obstetrics, Gynecology
Imaging Modes	Color Doppler, Power Doppler
Connectivity	Ethernet, USB
Operating System	Windows-based
