Chapter 8 - Replacement Procedures 8-51
Section 8-22
Replacement of the Caster Cap
8-22-1 Manpower
One person, 2 minutes
8-22-2 Tools
None
8-22-3 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
NOTE: Lock Caster before before removing it.
8-22-4 Removal Procedure
1.) Remove the Side Tray by removing the 2 screws below. Refer to the figure below.
2.) Pull the Caster Cap as shown in the figure above.
8-22-5 Installation Procedure
1.) Install the new parts in the reverse order of removal.
2.) Perform: FRU8-21: Replacement of the Caster Cap - Functional Tests.

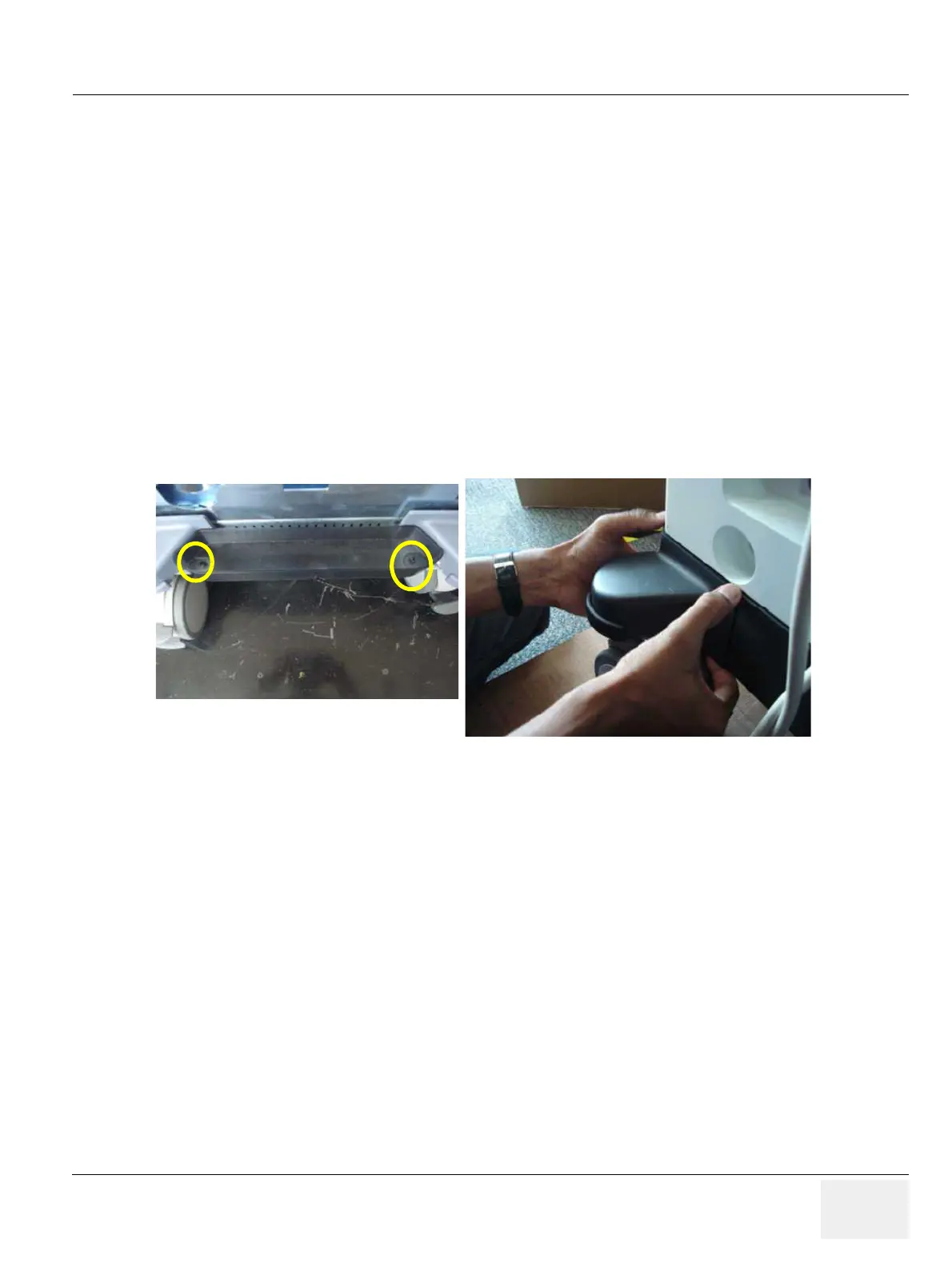

Figure 8-62 Removeing the CASTER CAP
