GE Voluson P8 Service Manual

GE HEALTHCAREDRAFT VOLUSON® P8 / VOLUSON® P6
DIRECTION 5459672-100, R
EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL
Chapter 7 - Diagnostics/Troubleshooting 7-37
7-9-5 Temperature Test
This test is used to check the operation of Temperature Warning Message by simulating warning
temperature level.
The critical system temperature is fixed at 60 Celsius.
When exceeding the critical temperature, a warning message is displayed on the screen.
1.) Select the TEMPERATURE TEST
button in the Diagnostics Tool window. (see : Figure 7-44 below).
The current system temperature is displayed.
2.) Using the "arrow up"(up) and/or "arrow down"(down) button, set the threshold of the "critical"
temperature below the currently shown system temperature.
For example: currently shown temperature is 33.9°C, so set the threshold of "critical" temperature
to 30°C.
After approx. 30 seconds, a warning message is displayed (see : Figure 7-45 below).
3.) Quit this first warning message with OK
.
4.) Please wait..

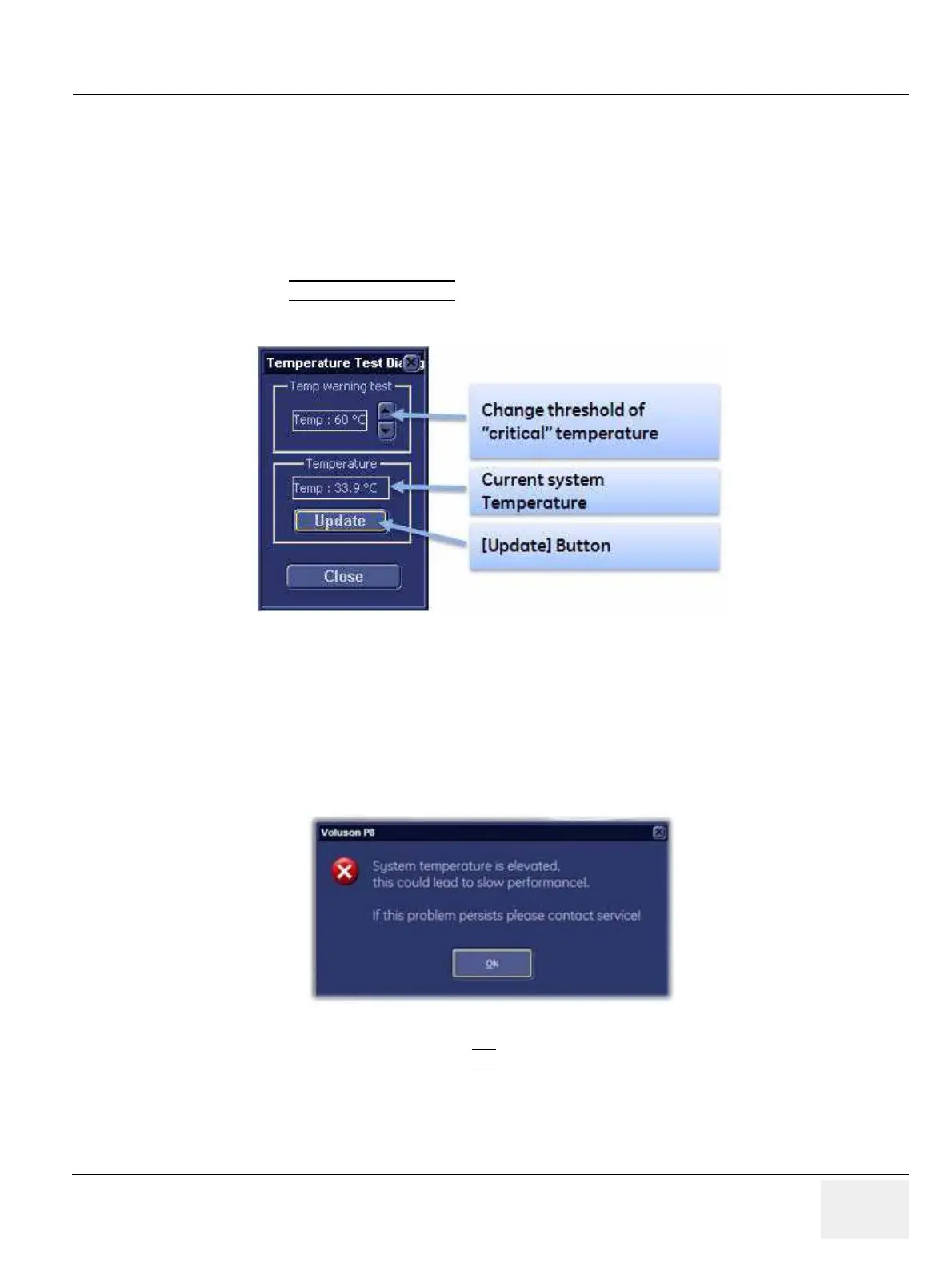

Figure 7-44 Temperature Test Dialog Window
Figure 7-45 Temperature Test Dialog Window

GE Voluson P8 Specifications

General

Category	Ultrasound System
Probe Ports	3 active probe ports
DICOM	Yes
Power Requirements	100-240 VAC, 50/60 Hz
Applications	Obstetrics, Gynecology
Imaging Modes	Color Doppler, Power Doppler
Connectivity	Ethernet, USB
Operating System	Windows-based
