3-16 Section 3-5 - Connection of Auxiliary Devices
3-5-4 Connecting the DeskJet Color Printer
3-5-4-1 Connection via Bluetooth Adapter
The DeskJet Color Printer can be connected to an external, non-isolated power source. The bluetooth
adapter should be directly connected to the indicated USB 3 on rear panel

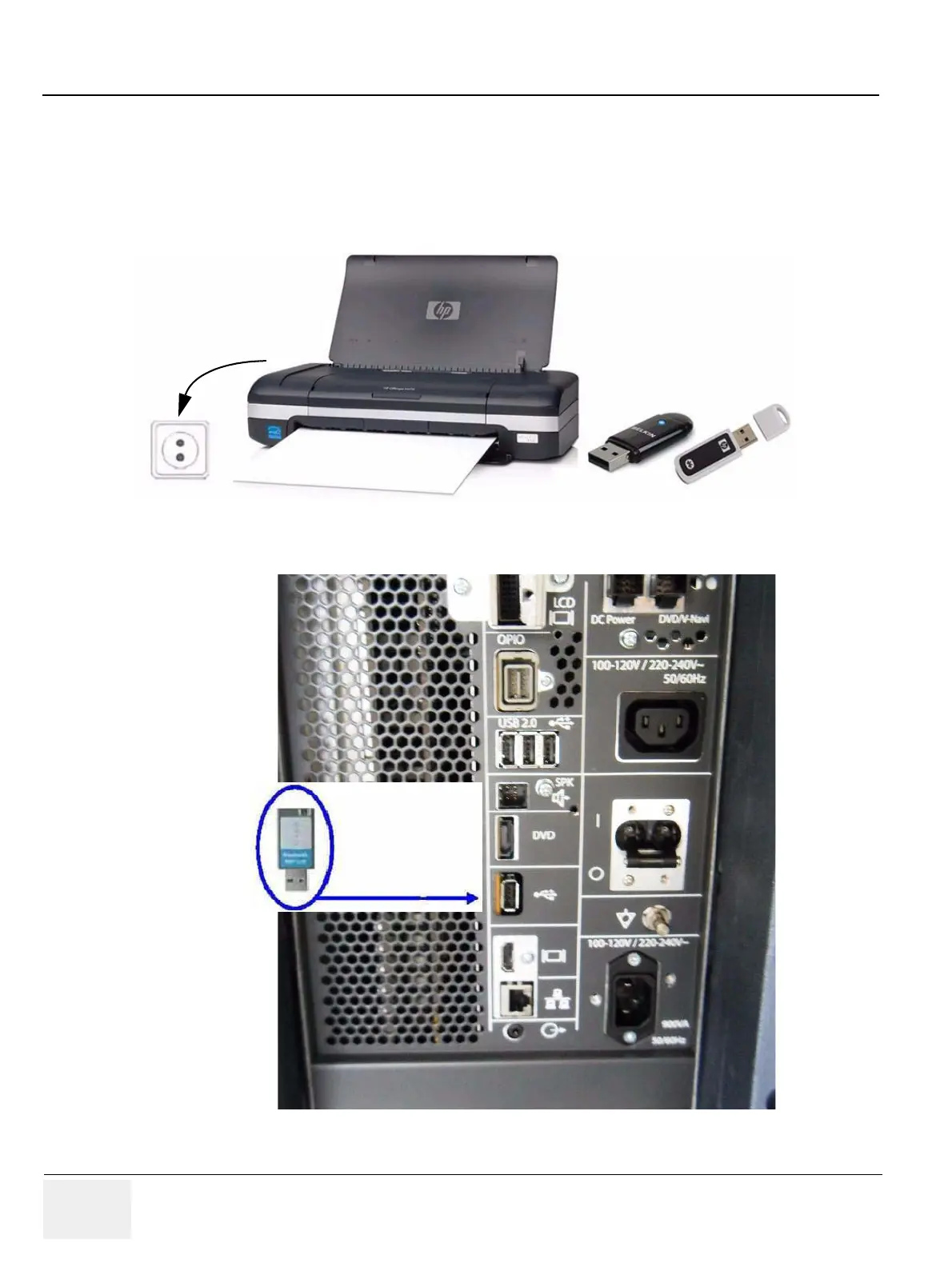

Figure 3-8 HP Officejet H470 DeskJet Printer connection (via Bluetooth Adapter)
Power Cable
connected to the
rear side
Bluetooth
Printer Adapter
of the printer
USB Bluetooth Adapter
connected to USB port
