GE HEALTHCARERAFT VOLUSON® P8 / VOLUSON® P6

DIRECTION 5459672-100, R

EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL

8-70 Section 8-31 - Replacement of the DVR

2.) Remove the dummy board from the RFS.

8-31-5 Installation Procedure

1.) Install the new parts in the reverse order of removal.

2.) Perform: FRU8-32: Replacement of the DVR - Functional Tests..

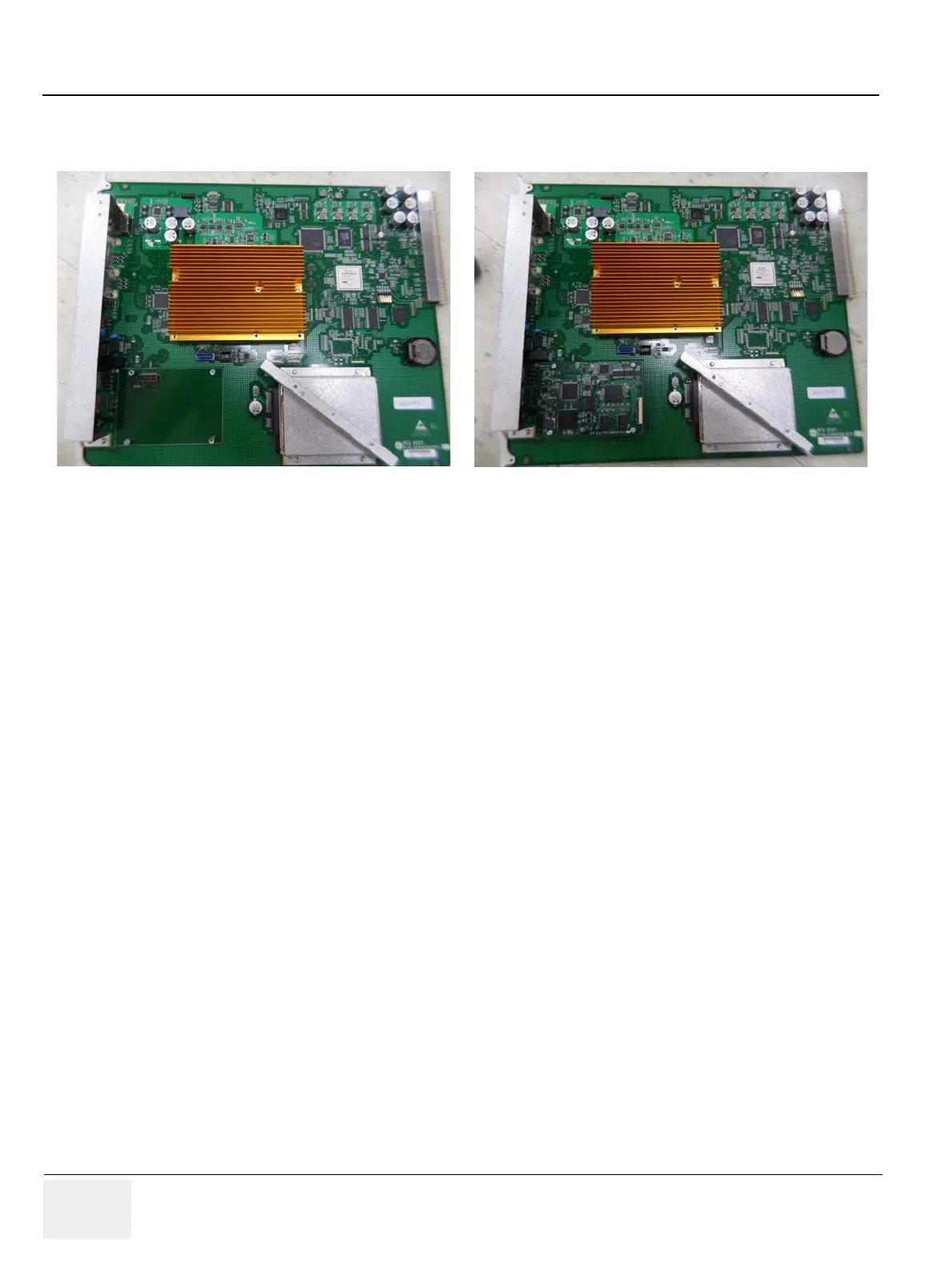

Figure 8-82 Installing DVR
