GE Voluson P8 Service Manual

GE HEALTHCAREDRAFT VOLUSON® P8 / VOLUSON® P6
DIRECTION 5459672-100, R
EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-65
Section 8-29
Replacement of the SOM
8-29-1 Manpower
One person, 30 minutes
8-29-2 Tools
Philips screwdriver, Allen Wrench
8-29-3 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
2.) Remove the rear cover as described in Section 8-25 on page 8-55, except for pulling out the NEST.
3.) Remove the RFS board as described in 8-28-3 on page 8-61.
8-29-4 Removal Procedure
1.) Unscrew 5 screws and pull the SOM board out of the RFS.

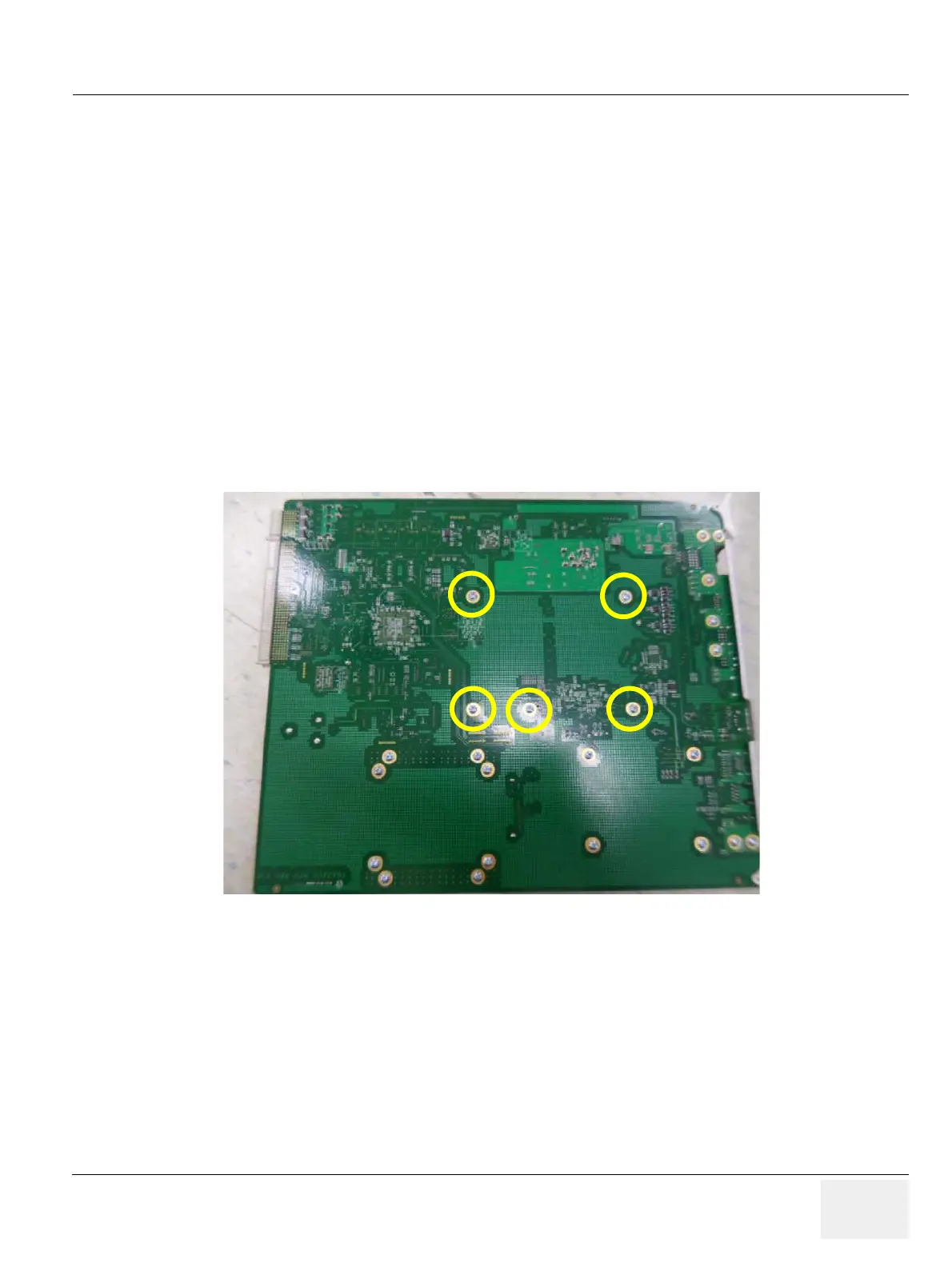

Figure 8-77 Pulling the SOM board
