Chapter 5 - Components and Functions (Theory) 5-23
5-3-3 RFS - Radio Frequency interface and System controller
5-3-3-1 RFS board - FPGA
A.) Beamformer interface
• LVDS-interface
• Raw ultrasound data is transferred from the Beamformer to the Interface FPGA.
• Configuration data (Probe Setup data, Beam Setup data) is transferred from the Interface FPGA to
the Beamformer.
• FPGA configuration data is transferred from the Interface FPGA to the Beamformer
B.) DMA Logic
• Receives pre-processed ultrasound data coming from the Processing FPGA.

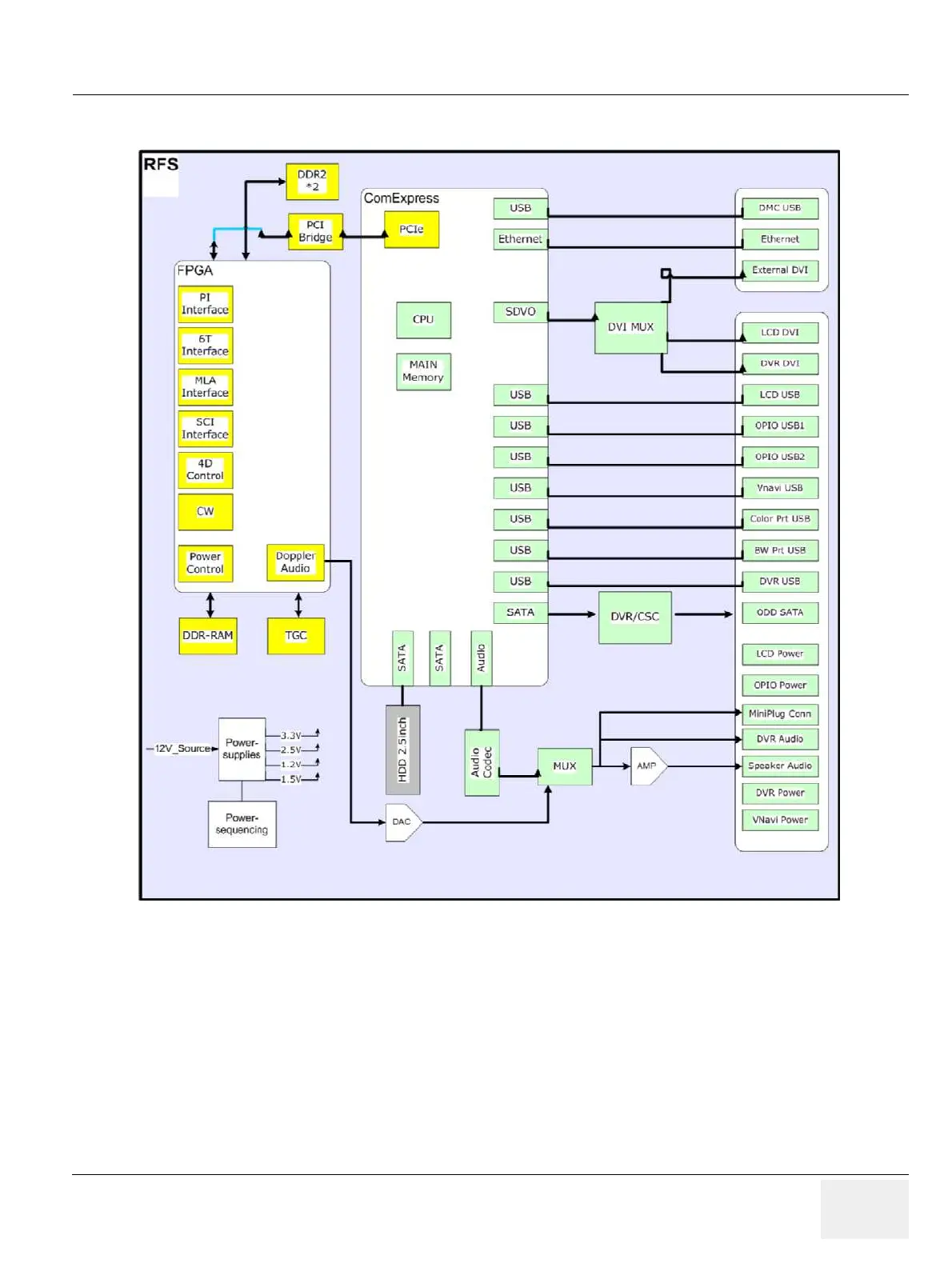

Figure 5-9 RFS-Board - Block diagram

GE Voluson P8 Specifications

General

Category	Ultrasound System
Probe Ports	3 active probe ports
DICOM	Yes
Power Requirements	100-240 VAC, 50/60 Hz
Applications	Obstetrics, Gynecology
Imaging Modes	Color Doppler, Power Doppler
Connectivity	Ethernet, USB
Operating System	Windows-based
