GE Voluson P8 Service Manual

GE HEALTHCAREDRAFT VOLUSON® P8 / VOLUSON® P6
DIRECTION 5459672-100, R
EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-83
Section 8-38
Replacement of AN KEY TOP
8-38-1 Manpower
One person, 30 minutes
8-38-2 Tools
Flat head screw driver
8-38-3 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
8-38-4 Key Caps - Removal Procedure
1.) Remove “1” and “Enter” keys with Tool A.
2.) Confirm that two screw holes exist. if not, skip the next step, 3.
3.) Loosen 2 screws (Don’t unscrew fully).
4.) Perform: FRU8-40: Replacement of AN KEY TOP - Functional Tests.

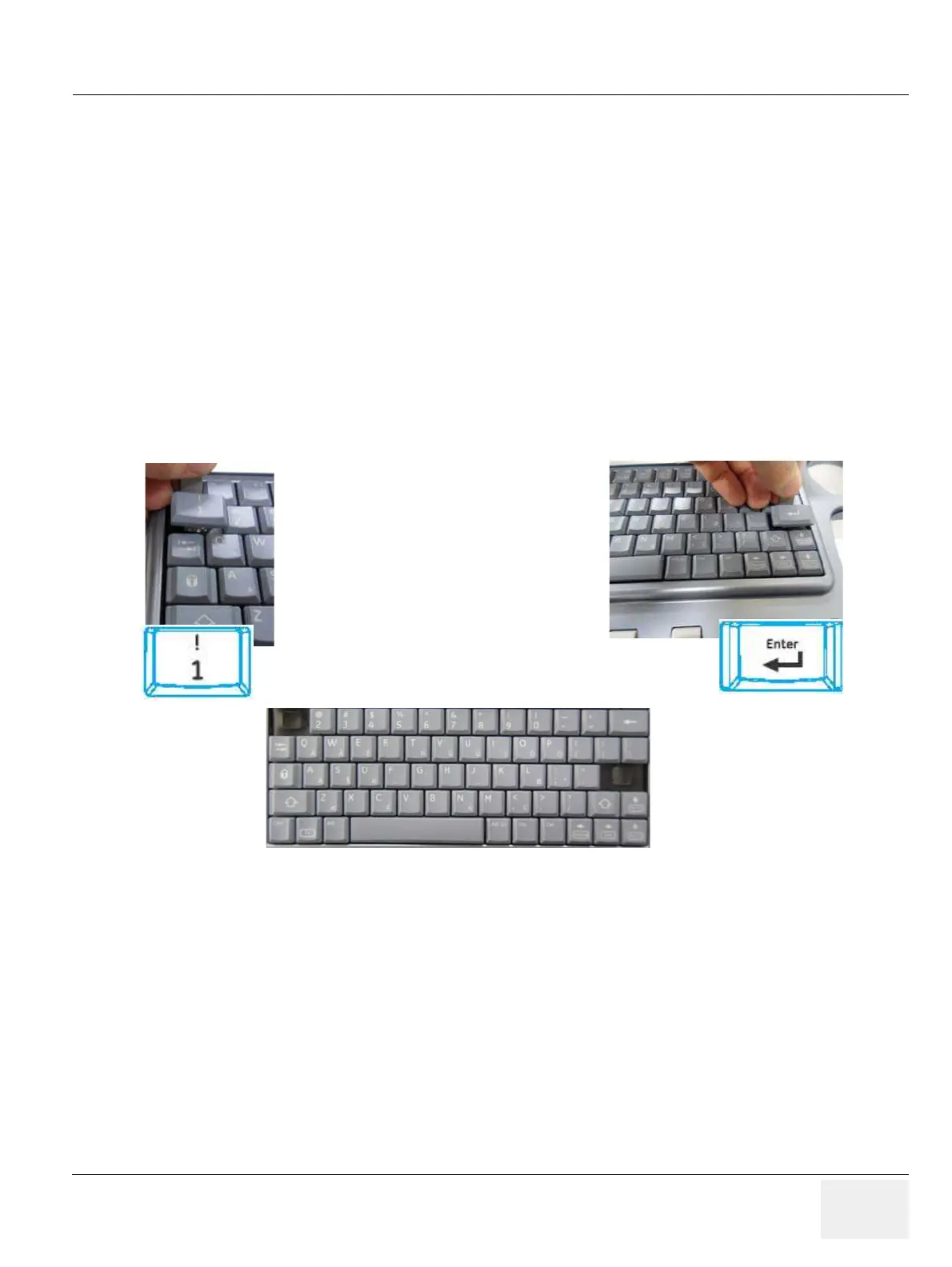

Figure 8-99 removing “1” key and “ Enter” key
