GE Voluson P8 Service Manual

GE HEALTHCAREDRAFT VOLUSON® P8 / VOLUSON® P6
DIRECTION 5459672-100, R
EVISION 6 DRAFT (JANUARY 17, 2013) PROPRIETARY SERVICE MANUAL
Chapter 8 - Replacement Procedures 8-49
Section 8-21
Replacement of AN KEYBOARD ASSY
8-21-1 Manpower
One person, 15 minutes
8-21-2 Tools
Philips Screwdriver
8-21-3 Preparations
1.) Power Off/Shutdown the system as described in 4-3-2 on page 4-4.
8-21-4 Removal Procedure
1.) Follow the removal procedure of Section 8-19-4 (step 1~3)
2.) Disconnect the 2 HUB TO MAIN OPIO CABLES. Refer to the figure below.
3.) Unscrew 10 screws. and pull out the AN KEYBOARD and OPIO HUB PWA ASSY. Refer to the
figure below.

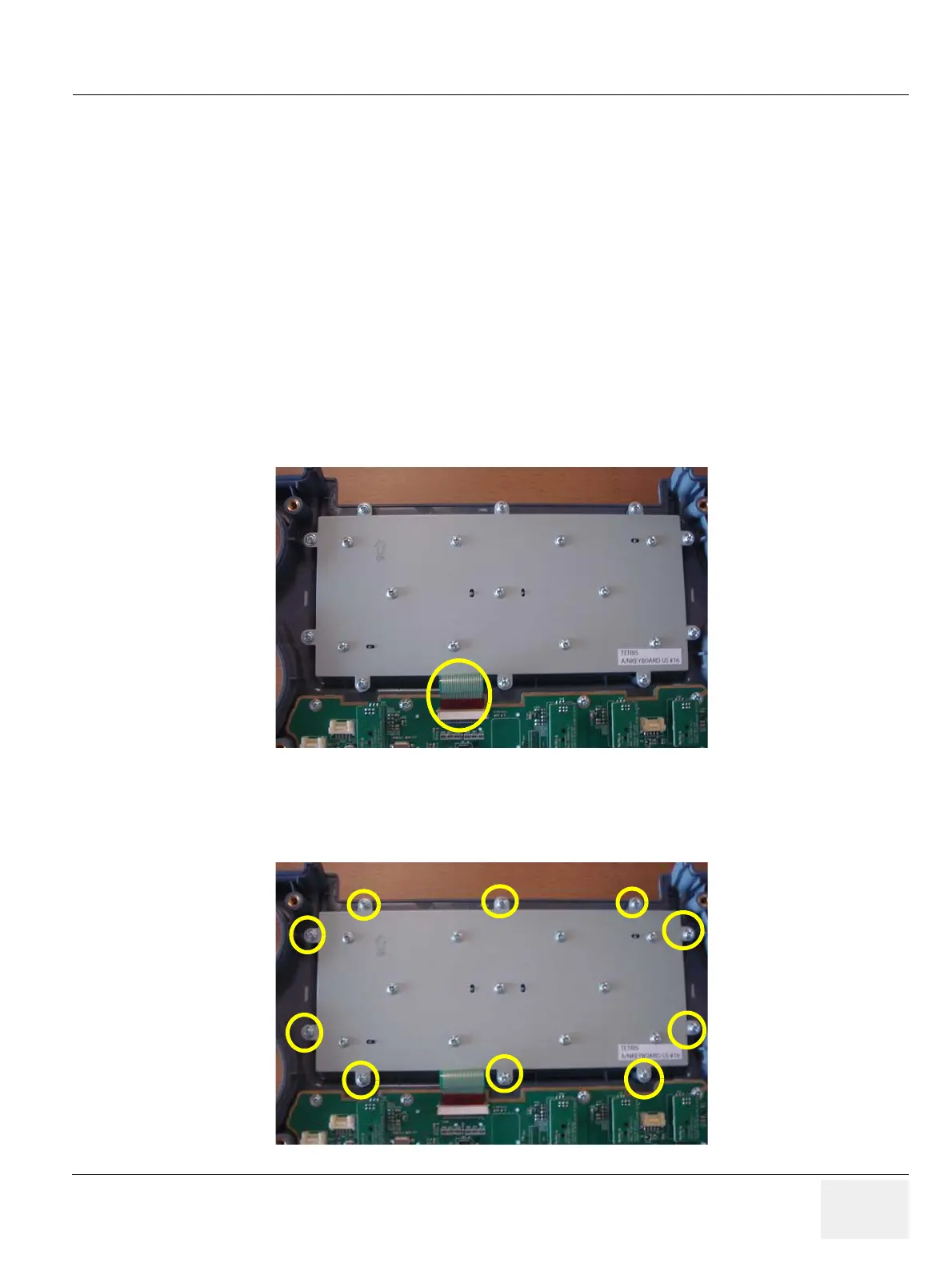

Figure 8-60 Disconnecting the 2 HUB TO MAIN OPIO CABLES
Figure 8-61 Unscrewing 10 screws from the AN KEYBOARD

GE Voluson P8 Specifications

General

Category	Ultrasound System
Probe Ports	3 active probe ports
DICOM	Yes
Power Requirements	100-240 VAC, 50/60 Hz
Applications	Obstetrics, Gynecology
Imaging Modes	Color Doppler, Power Doppler
Connectivity	Ethernet, USB
Operating System	Windows-based
