106 Servicing Your Honda
Exhaust Pipe/Muffler
1. Remove the gasket (1).
2. Install the muffler clamp (2) and a new gasket
onto the exhaust pipe (3).
3. Install the muffler (4).
4. Install the muffler clamp (2) by aligning the tab
(5) of the muffler clamp with the cutout (6) of
the muffler.
5. Install the washer A (7), washer B (8), muffler
mounting B bolt (9) and muffler mounting A
bolt (10).
Be careful not to get the air cleaner case rubber
(11) caught between the subframe (12) and
muffler stay (13) while installing the muffler.
Check for cuts, slits, or cracks in the rubber.
Replace the rubber, if necessary.
6. Tighten the muffler clamp bolt (14) to the
specified torque:
21 N·m (2.1 kgf·m, 15 lbf·ft)
7. Tighten the muffler mounting B bolt (9) and
muffler mounting A bolt (10) to the specified
torque:
26 N·m (2.7 kgf·m, 19 lbf·ft)

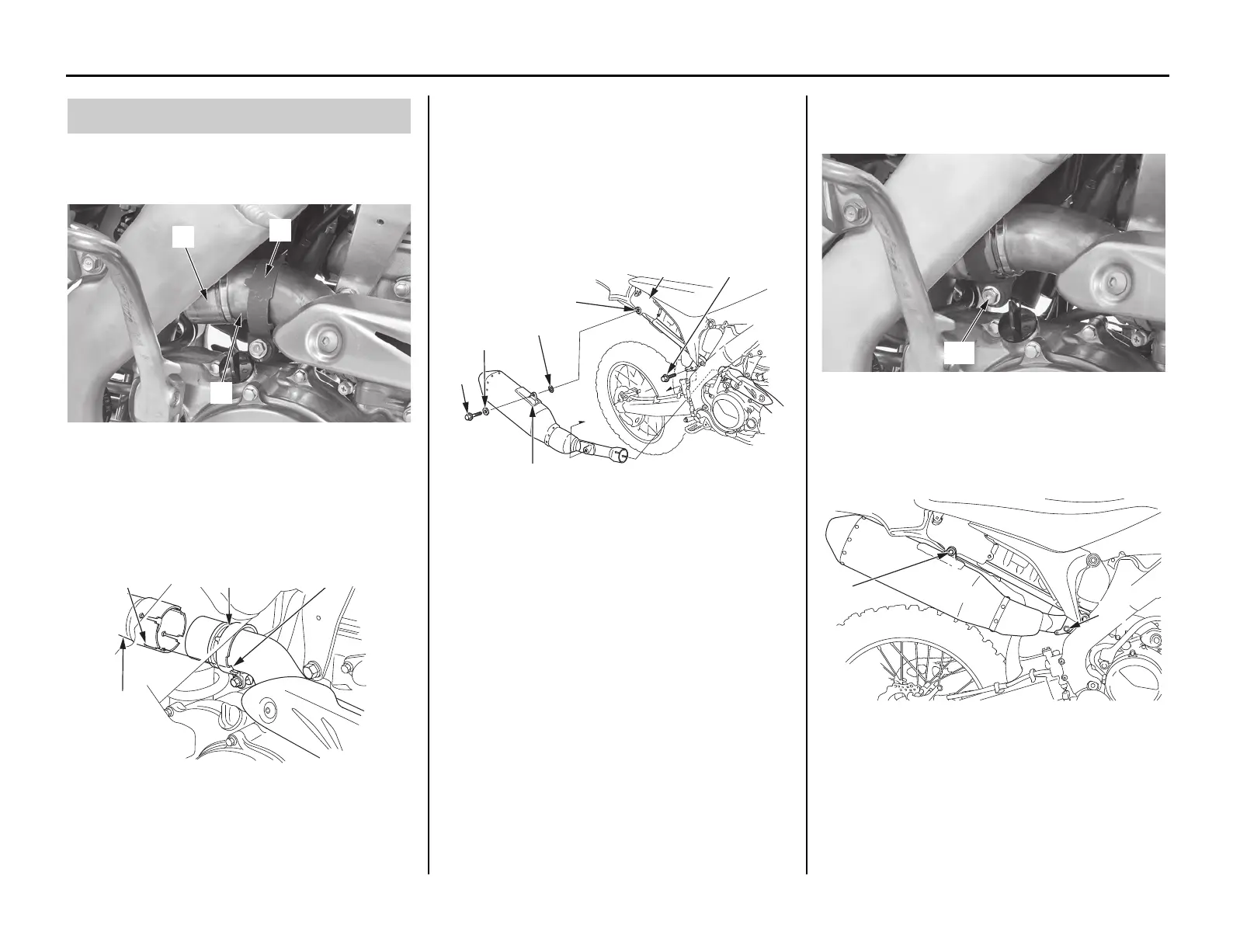

Muffler Installation
(1) gasket (new) (3) exhaust pipe
(2) muffler clamp
(2) muffler clamp (5) tab
(4) muffler (6) cutout
(3)
(1)
(2)
(5)(2)(6)
(4)
(7) washer A
(8) washer B
(9) muffler mounting B bolt
(10) muffler mounting A bolt
(11) air cleaner case rubber
(12) subframe
(13) muffler stay
(8)
(7)
(13)
(10)(11)
(12)
(9)
(14) muffler clamp bolt
(9) muffler mounting B bolt
(10) muffler mounting A bolt
(14)
(10)
(9)
