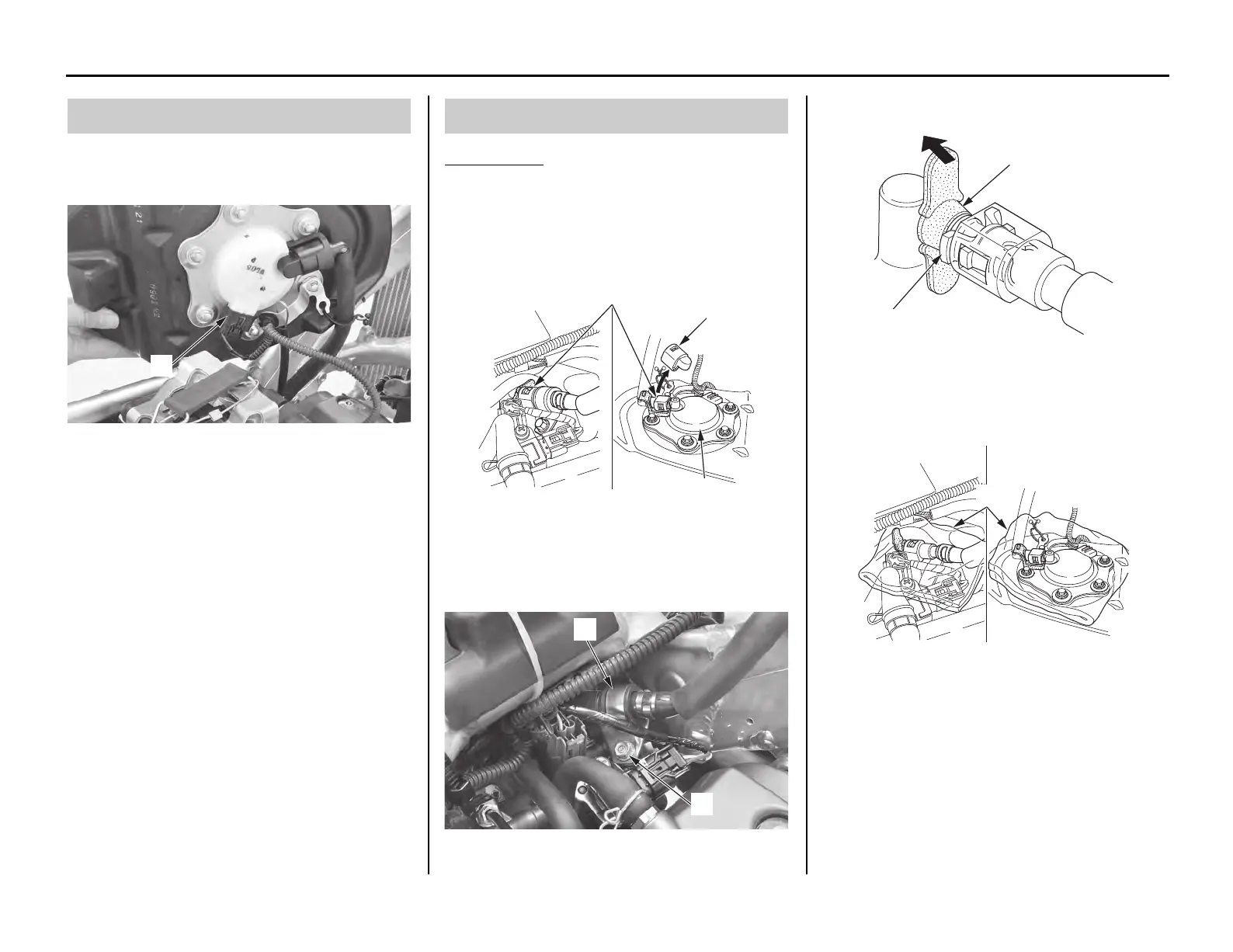

Fuel System
(cont’d)
Servicing Your Honda 45
1. Hang the fuel tank to the left side of the frame
(page 38).
2. Disconnect the fuel pump connector (1).
3. Reposition the fuel tank and start the engine
and let it idle until the engine stalls.
Disconnection
1. Relieve the fuel pressure (page 45).
2. Hang the fuel tank to the left side of the frame.
3. Remove the fuel quick connect fitting cover
(1) from the fuel pump (2).
4. Check the fuel quick connect fitting (3) for
dirt, and clean if necessary.
5. Remove the bolt (4), clamp and setting rubber
(5).
6. Pull and release the joint rubber (6) of the
injector side from the retainer (7).
7. Place a shop towel (8) over the fuel quick
connect fitting.
Fuel Pressure Relieving
(1) fuel pump connector
(1)
Fuel Line Replacement
(1) fuel quick connect fitting cover
(2) fuel pump
(3) fuel quick connect fitting
(4) bolt (5) clamp and setting rubber
(1)
(2)
(3)
Injector side: Fuel Pump side:
(5)
(4)
(6) joint rubber (injector side only)
(7) retainer
(8) shop towel
(6)
(7)
(8)
Injector side: Fuel Pump side:
