Honda CRF450R 2011 User Manual

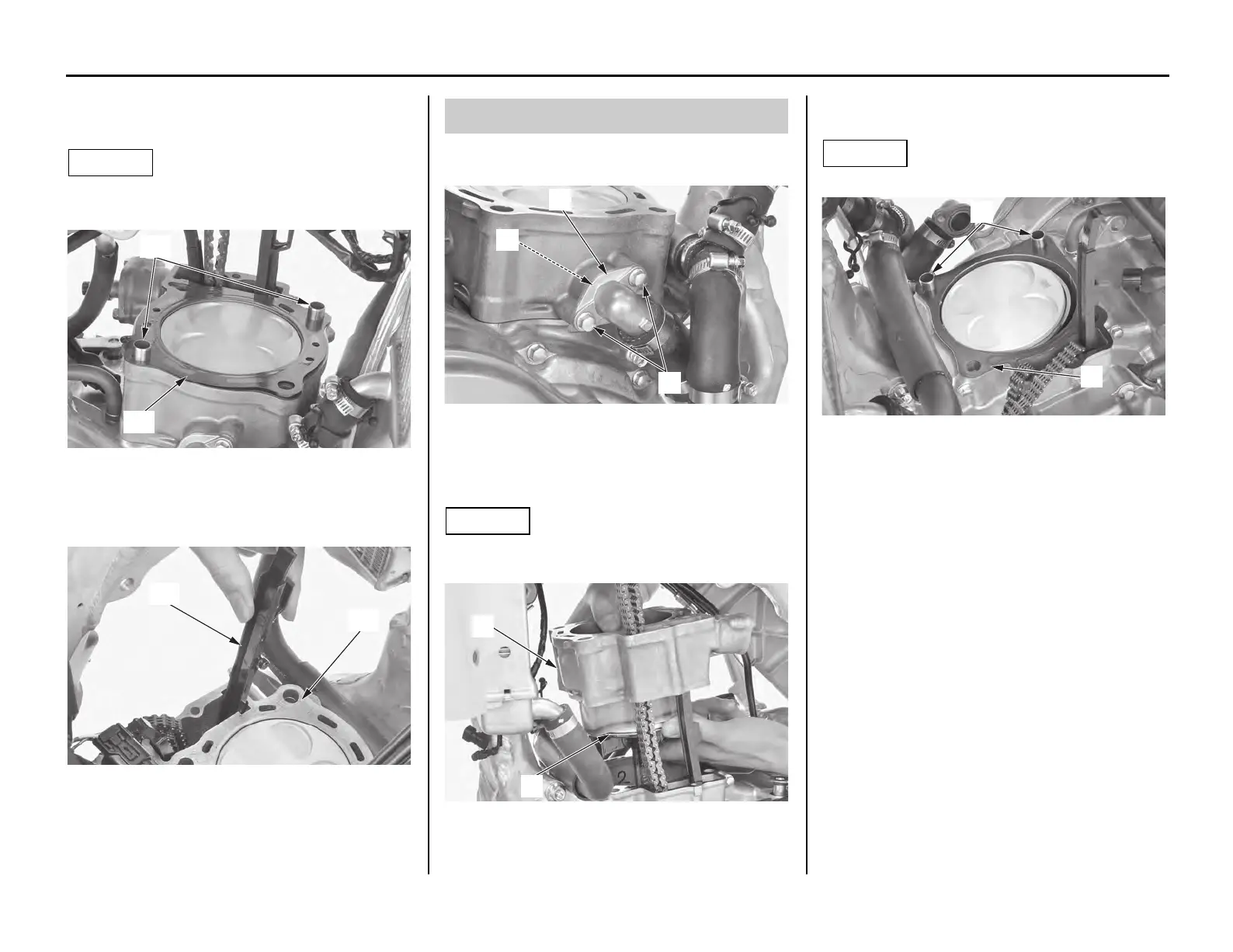

Servicing Your Honda 83
Piston/Piston Rings/Piston Pin
19. Remove the dowel pins (22) and cylinder head
gasket (23).
NOTICE
Do not let the dowel pins and cam chain fall into
the crankcase.
20. Remove the cam chain guide (24) from the
cylinder (25).
1. Remove the water hose joint bolts (1), water
hose joint (2) and O-ring (3).
2. Remove the cylinder (4) while holding the
piston (5).
NOTICE
Do not let the cam chain fall into the crankcase.
Do not pry on or strike the cylinder.
3. Remove the dowel pins (6) and cylinder gasket
(7).
NOTICE
Do not let the dowel pins fall into the crankcase.
(22) dowel pins
(23) cylinder head gasket
(24) cam chain guide
(25) cylinder
(23)
(22)
(25)
(24)
Cylinder Removal
(1) water hose joint bolts (3) O-ring
(2) water hose joint
(4) cylinder (5) piston
(2)
(1)
(3)
(4)
(5)
(6) dowel pins (7) cylinder gasket
(7)
(6)
CRF450R.book Page 83 Thursday, July 8, 2010 9:34 AM

Honda CRF450R 2011 Specifications

General

Engine Type	449cc liquid-cooled single-cylinder four-stroke
Bore x Stroke	96.0mm x 62.1mm
Compression Ratio	12.0:1
Transmission	Close-ratio five-speed
Final Drive	#520 chain; 13T/48T
Front Brake	Single 240mm disc with twin-piston caliper
Rear Brake	Single 240mm disc
Front Tire	80/100-21
Rear Tire	120/80-19
Trail	114mm (4.5 inches)
Induction	PGM-FI, 46mm throttle body
Front Suspension	48mm inverted with rebound and compression damping adjustability; 12.2 inches travel
Rear Suspension	Pro-Link single shock with rebound and compression damping adjustability; 12.4 inches of travel
Wheelbase	58.7 inches
Seat Height	37.6 inches
Fuel Capacity	1.5 gallons
