5. Attach one latch strike
1
to the front of the right rail
2
, as shown in Figure 59, using the captive
screw
3
. Turn the screw only finger tight. Attach the other latch strike to the front of the left rail in
the same way.
6. Attach the slide rail to the left rear mounting flange with a single screw and latch strike. The screw
should be only finger tight. Likewise, attach the other slide rail to the right rear mounting flange. The
installation of the support rails for the SAN Volume Controller 2145-8G4 is complete.
Installing the support rails for the SAN Volume Controller 2145-8F4 or the SAN
Volume Controller 2145-8F2
You must install the support rails that hold the SAN Volume Controller 2145-8F4 or the SAN Volume
Controller 2145-8F2.
When you are ready to install the support rails, use the customer's hardware-location chart and the
Electronic Industries Alliance (EIA) positions on the rack to determine where in the rack that the SAN
Volume Controller node is to be installed.
Perform the following steps to install the support rails:
2
svc00239

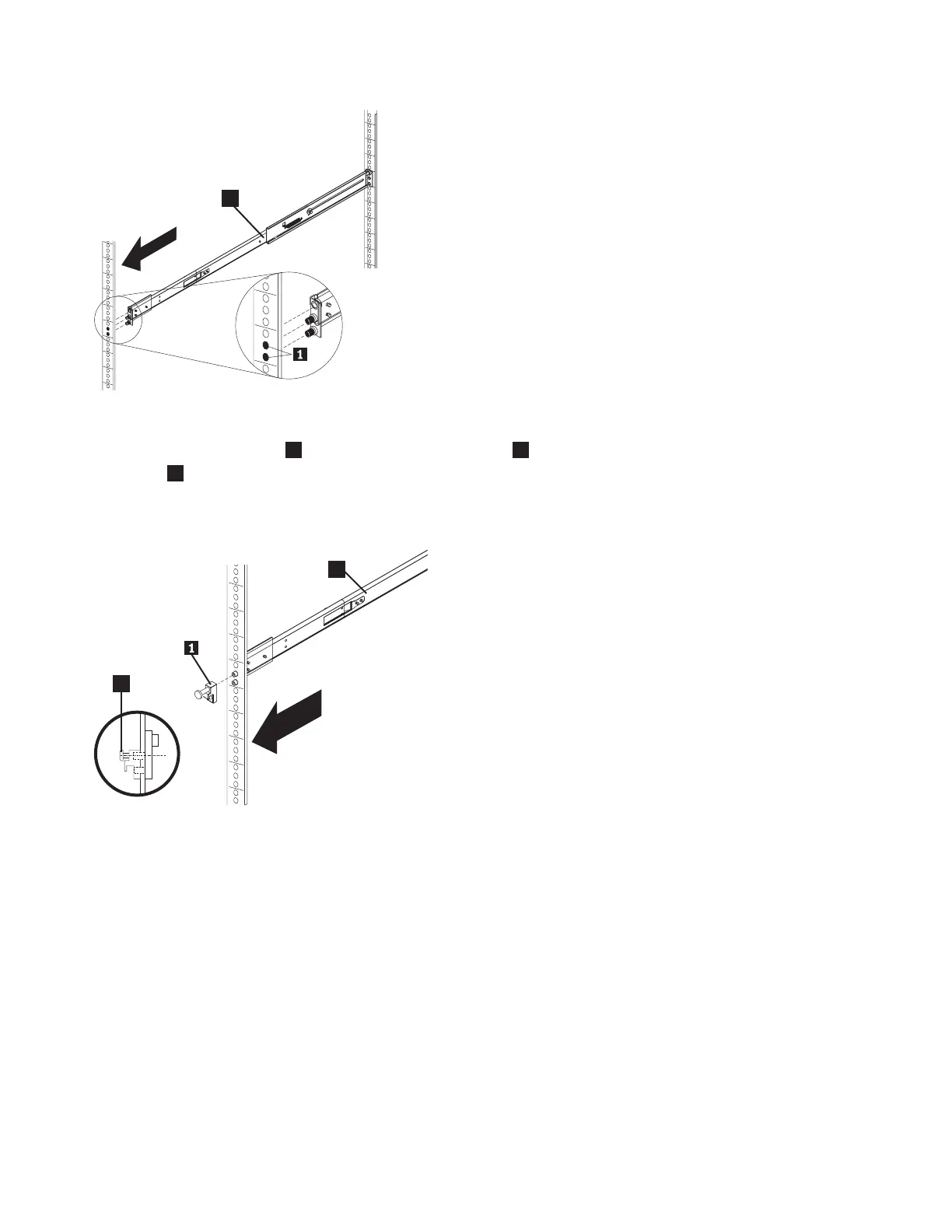

Figure 58. Extending the right slide rail
2
3
svc00238
Figure 59. Attaching the latch strike to the front of the slide rail
74 IBM SAN Volume Controller Hardware Maintenance Guide
