1 Disk-drive backplane
2 Backplane edges on the 2145-CG8 and tabs on the 2145-CF8
3 Backplane-bracket slots
3. Reconnect the cables to the disk-drive backplane.
The boot-drive cable and the high-speed SAS-adapter cable are shown in Figure 123.
1 Boot-disk signal cable that is plugged into the disk-drive backplane to support drive bay 4
2 High-speed SAS-adapter cable that is plugged into the middle of the backplane to support
drive bays 0, 1, 2, and 3
(Not pictured) Backplane-control cable that should plug into the lower right connector on the
back of the backplane
4. Reconnect the boot-disk SAS cable to the SAS disk controller.
The boot-drive cable and the high-speed SAS-adapter cable are shown in Figure 124 on page 137.
1
2

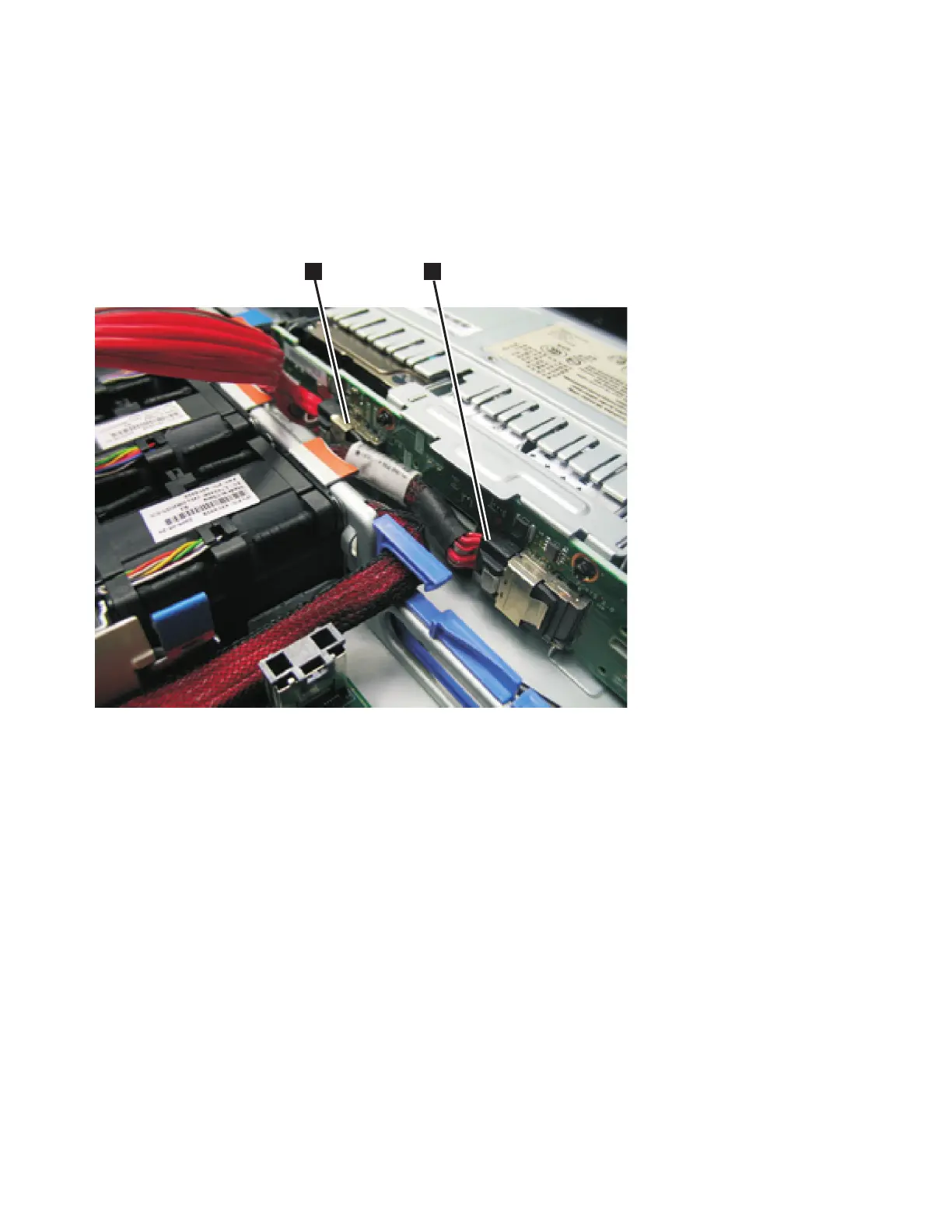

Figure 123. Boot-disk SAS cable and the high-speed SAS cable connected to the disk backplane in the SAN Volume
Controller 2145-CG8 or 2145-CF8
136 IBM SAN Volume Controller Hardware Maintenance Guide
|
|
