2. Starting from the rear, press the release tab
3
backwards, away from the rail. Push the
rail-adjustment bracket
2
toward the center of the rack until it snaps into place. Lift the tab that
secures the rear of the slide rail to the rear mounting flange.
3. Repeat step 2 to remove the front bracket and then remove the support rail from the rack.
4. Repeat steps 1 through 3 for the other support rail.
Removing the support rails for the SAN Volume Controller 2145-8G4
This topic describes how to remove the SAN Volume Controller 2145-8G4 support rails.
Perform the following steps to remove the SAN Volume Controller 2145-8G4 support rails:
1. Loosen and remove the captive screw
3
and latch strike
1
from the left rear mounting flange, as
shown in Figure 45 on page 65, to release the slide rail
2
. Loosen and remove the captive screw
from the right rear mounting flange and release the other slide rail in the same way.

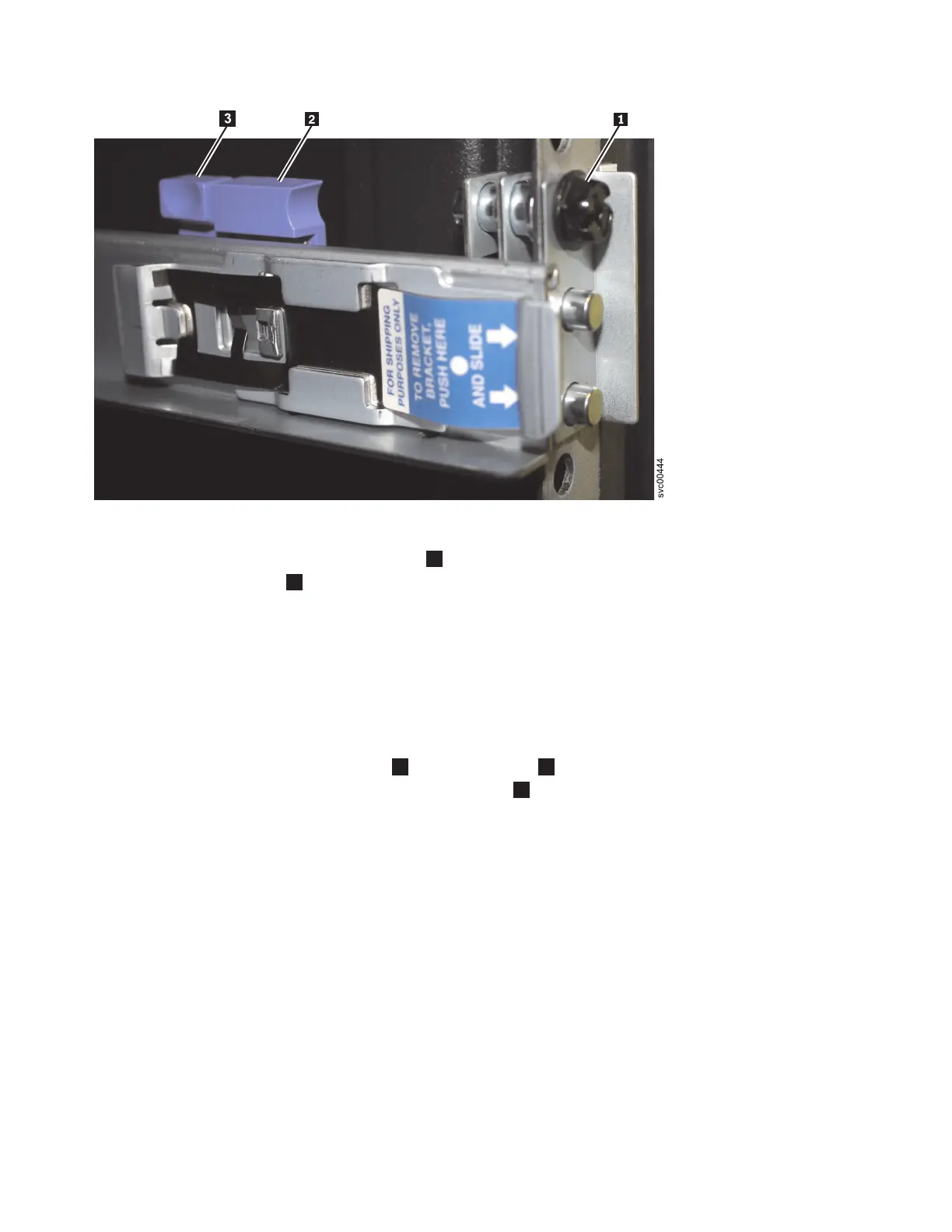

Figure 44. The rail-adjustment bracket and the release tab on the rear rail-locking carrier
