c. Pull the baffle slightly to the right to locate the two clips in the support rail.
10. Reconnect the light path ribbon cable connector and the CD-RW ribbon cable connector, as shown in
Figure 300 on page 299.
a. Replace the video cable connector and the USB cable connector.
b. Replace the cable connectors for fans 6, 5, 4 and 3.
svc00381

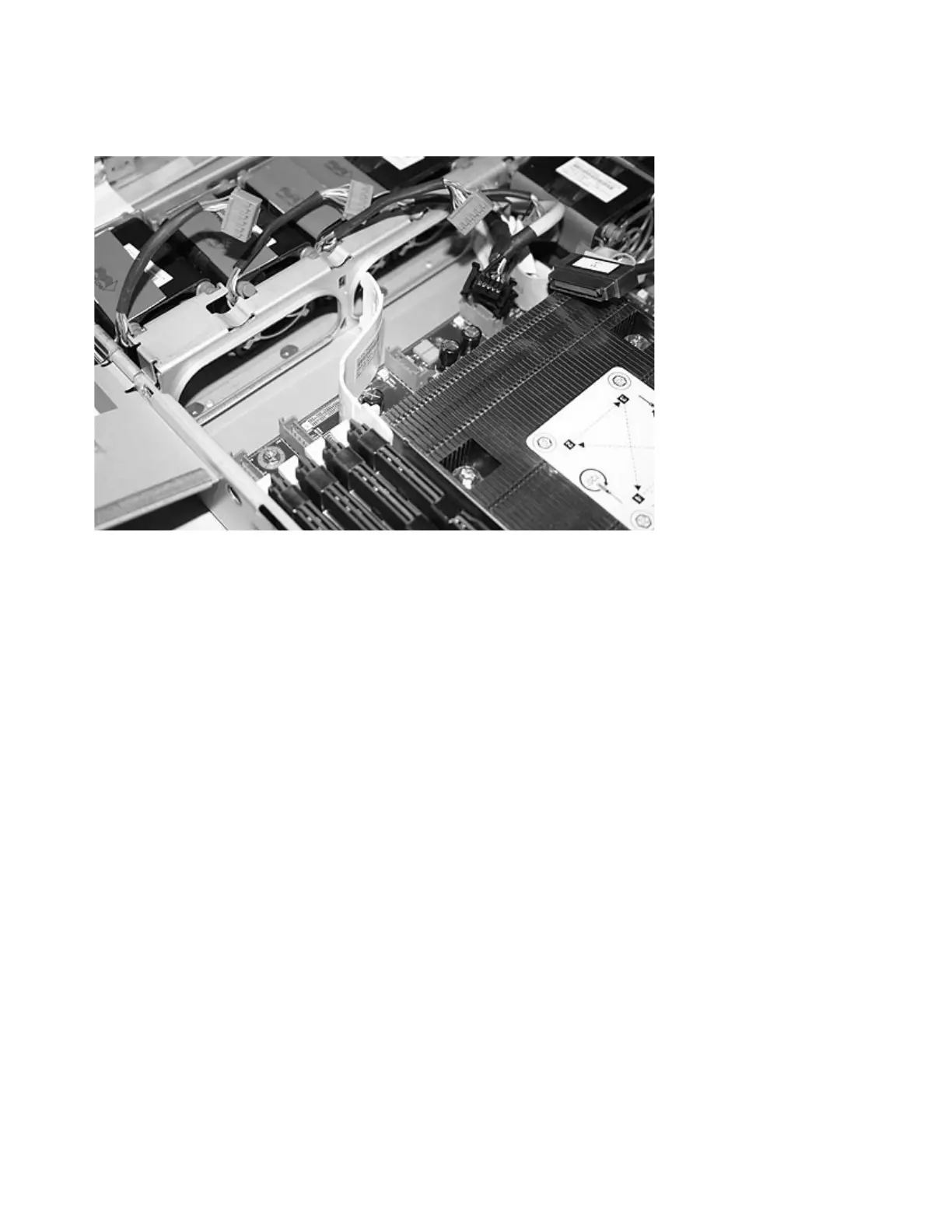

Figure 299. Right air baffle on the SAN Volume Controller 2145-8G4 system board
298 IBM SAN Volume Controller Hardware Maintenance Guide
