IBM SAN Volume Controller 2145-CG8 User Manual

1

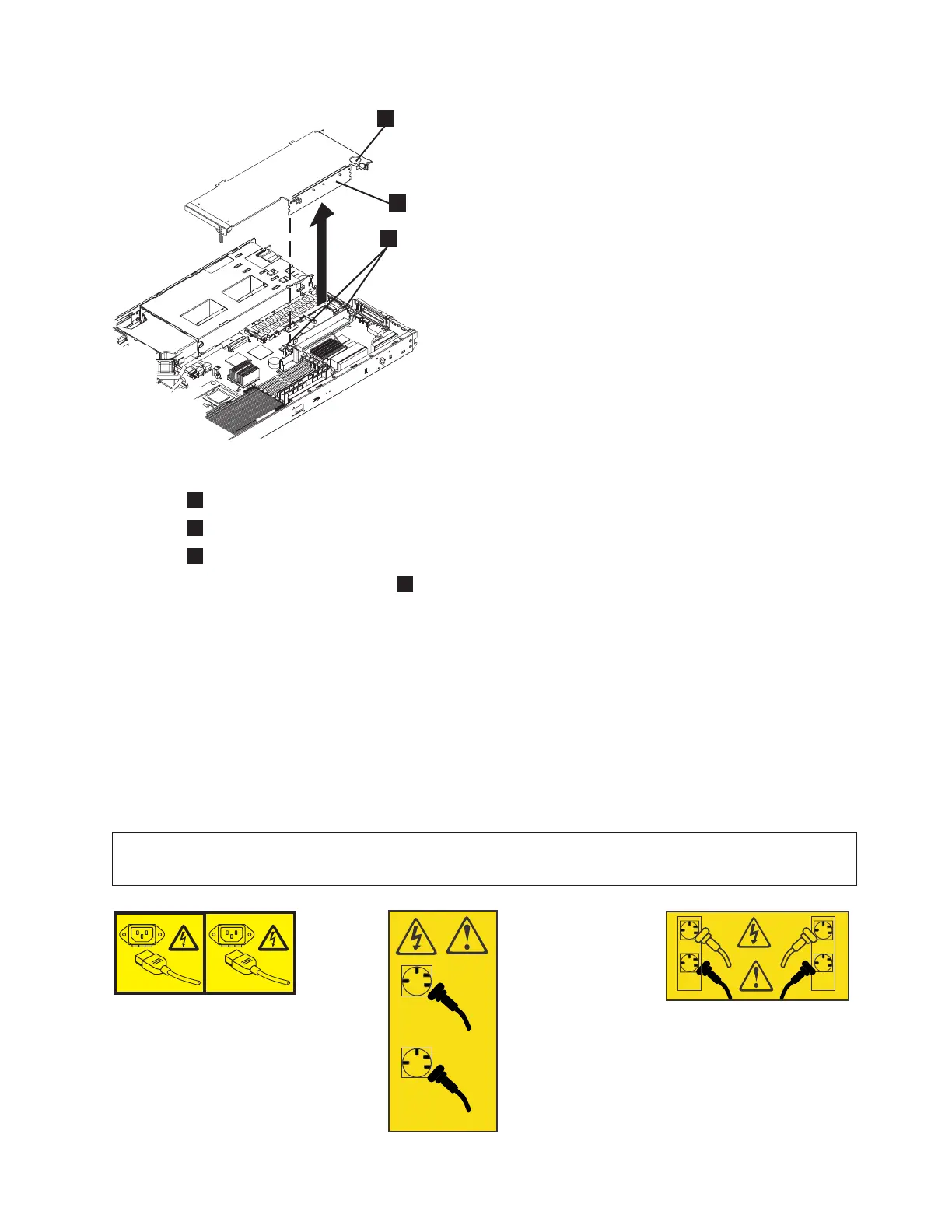

Access hole to retention latch
2
Riser card
3
Riser-card retention latches
b. Unlatch the PCI slot 2 riser card
2
and pull it clear of the system-board edge connector.
c. Lift the riser card clear of the frame and pull the Fibre Channel card from the riser-card edge
connector.
Replacing the Fibre Channel adapter assembly
Use these instructions when you need to replace the adapter assemblies.
Replacing the SAN Volume Controller 2145-CG8 or 2145-CF8 Fibre Channel
adapter assembly
Perform the following steps to replace the SAN Volume Controller 2145-CG8 or 2145-CF8 Fibre Channel
adapter assembly:
DANGER
Multiple power cords. The product might be equipped with multiple power cords. To remove all
hazardous voltages, disconnect all power cords. (L003)
svc00322
1
2
or
1
2
svc00735
or
1
3
4
2
svc00734
1
2
3
svc00102
Figure 180. SAN Volume Controller 2145-8F2 or SAN Volume Controller 2145-8F4 slot 2 adapter
Chapter 2. Removing and replacing parts 185
|
|
|
|
|
|
||
|
||
|
