2. Replace the six screws on the system board, as shown in Figure 294 on page 295, to secure the
system board to the chassis.
svc00382

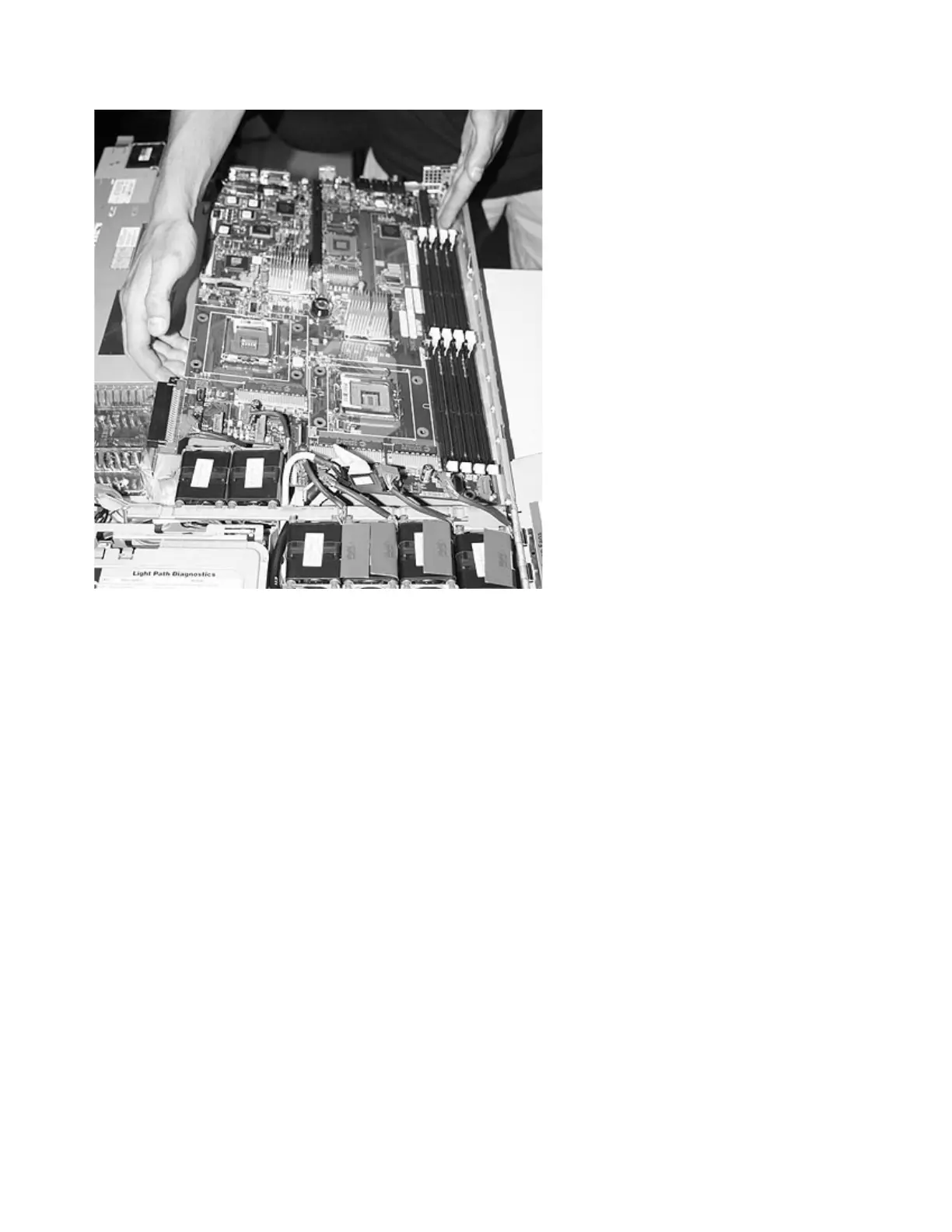

Figure 293. SAN Volume Controller 2145-8G4 system board
294 IBM SAN Volume Controller Hardware Maintenance Guide
