6. Use a small screwdriver to push in the retention springs (
1
in Figure 221) on the sides of the
operator-information panel assembly.
1
Retention springs
2
Operator-information panel assembly cover
3
Cables
7. Slide the assembly forward and out of the node.
8. Push out on the two sides of the assembly cover to flare it out.
9. Rotate the assembly cover (
2
in Figure 221) up and off of the operator-information panel assembly.
10. Unplug the two cables from the rear of the assembly (
3
in Figure 221).
Replacing the operator-information panel assembly
You might be prompted to replace the SAN Volume Controller operator-information panel assembly.
Take precautions to avoid damage from static electricity. Wear an anti-static wrist strap and use a
static-protected mat or surface. For more information, see “Handling static-sensitive devices” on page xx.
1
svc00108
2
Figure 220. SAN Volume Controller 2145-8F4 operator-information panel
svc00118

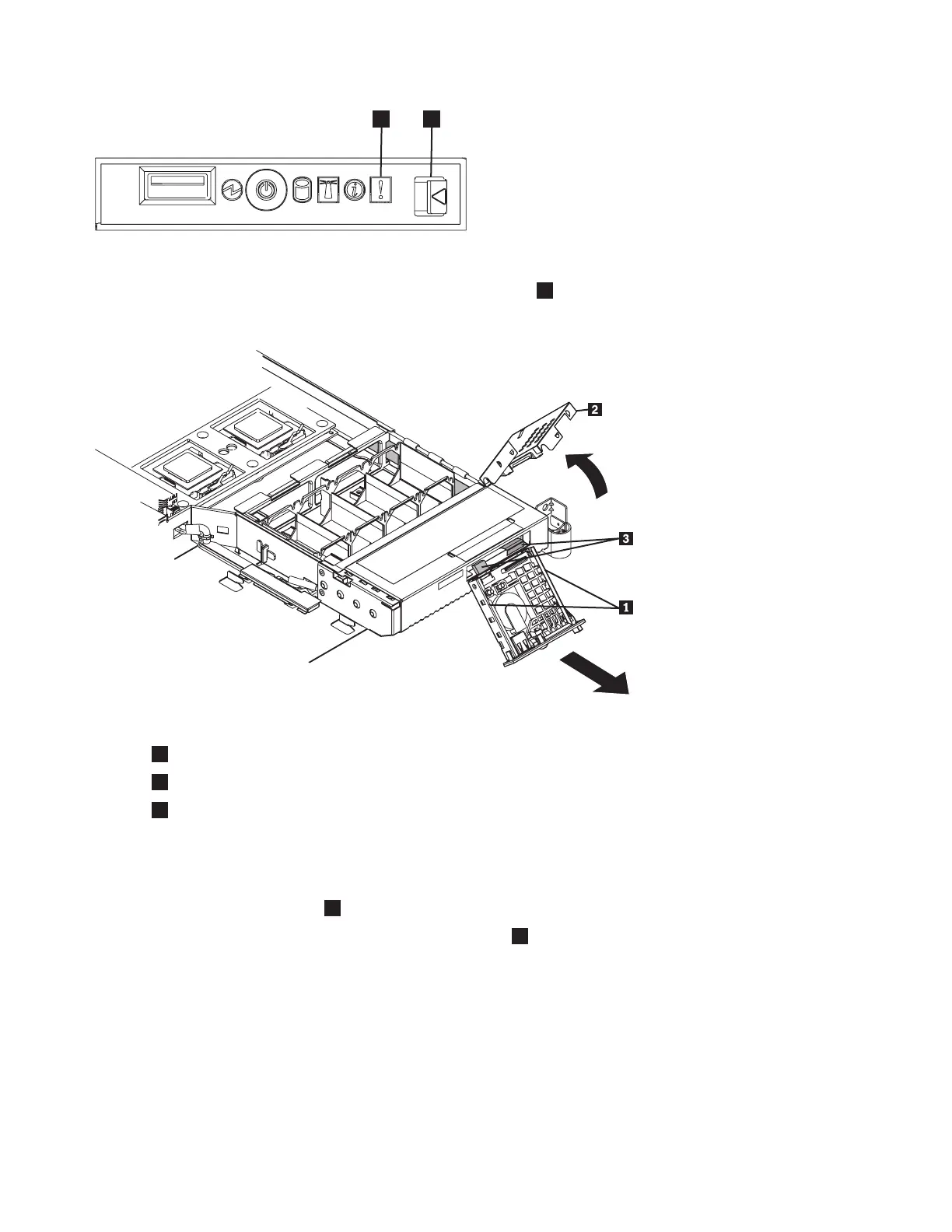

Figure 221. SAN Volume Controller 2145-8F2 with exposed operator-information panel
224 IBM SAN Volume Controller Hardware Maintenance Guide
