To disengage the slide rails from the rear of the rack, pull the slide rail forward to unlatch the rear
hooks and take the rails out of the rack.
Removing the support rails for the SAN Volume Controller 2145-8A4
You can remove the support rails that hold the SAN Volume Controller 2145-8A4 node.
To remove the SAN Volume Controller 2145-8A4 support rails, perform the following steps:
1. Remove the M6 screw
1
from the front and rear brackets.
Rear of rack

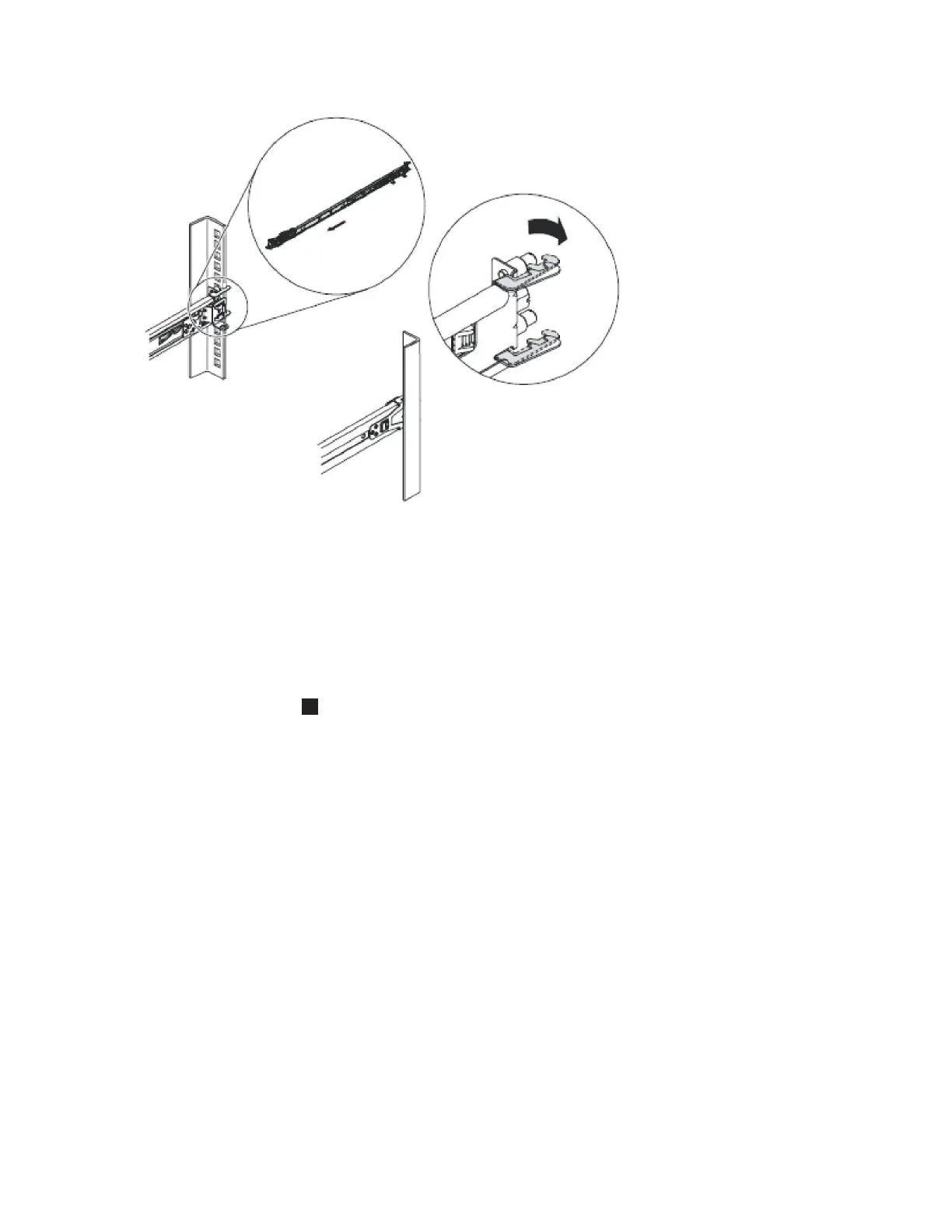

Figure 43. Removing the rear end of the slide rails
Chapter 2. Removing and replacing parts 63
