IBM SAN Volume Controller 2145-CG8 User Manual

1 Boot-disk SAS cable that is plugged into the disk-controller-and-USB-riser-card assembly
2 Blue bulkhead clip with the high-speed SAS-adapter cable and the boot-disk SAS cable
Removing the disk-controller and USB riser-card assembly
You can remove the disk-controller and USB riser-card assembly.
Take precautions to avoid damage from static electricity. Wear an anti-static wrist strap and use a
static-protected mat or surface. For more information, see “Handling static-sensitive devices” on page xx.
Removing the SAN Volume Controller 2145-CG8 or 2145-CF8 disk-controller and
USB riser-card assembly
You can remove the SAN Volume Controller 2145-CG8 or 2145-CF8 disk-controller and USB riser-card
assembly.
21

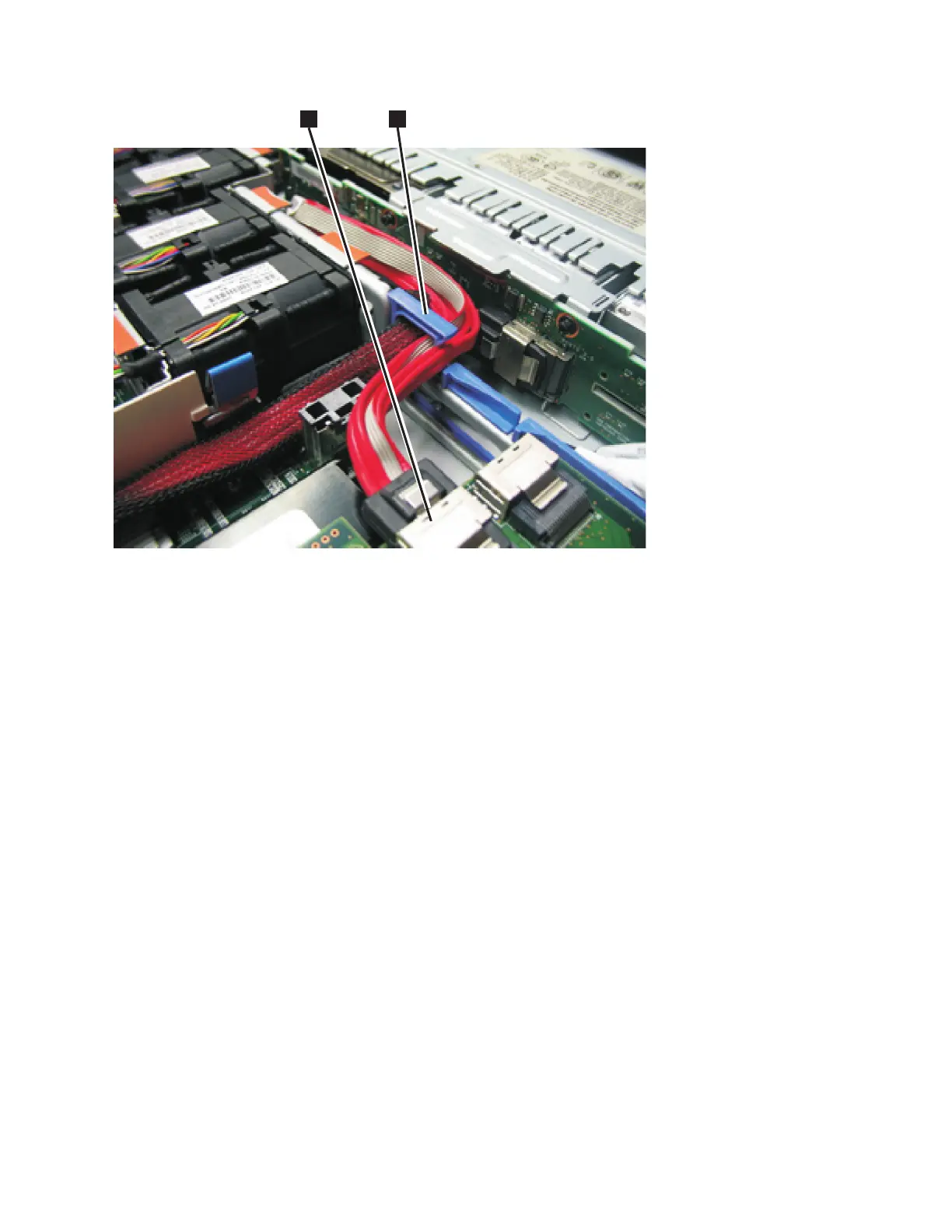

Figure 203. Boot-disk SAS cable routed through the blue bulkhead clip and connected to the SAS disk controller in the
SAN Volume Controller 2145-CG8 or 2145-CF8
Chapter 2. Removing and replacing parts 207
|
|
