a. Slide the I/O connector portion of the adapter through the slot 1 opening and align the edge
connector on the low-profile adapter with the connector on the riser card. Press the edge connector
firmly into the riser-card connector. Make sure that the adapter snaps into the riser card securely
and the adapter is lying on top of the low-profile adapter support.
b. Push the adapter down past the tab so that the adapter snaps into place on the support.
c. Check the retention latches on the riser card and make sure that they are still securely in place.
d. Close the Fibre Channel card retainer to secure the card.
2. Install the Fibre Channel card in slot 2.
a. Align the edge connector on the Fibre Channel adapter with the connector on the riser card. Press
the edge connector firmly into the riser-card connector. The card is fully installed when the gold
connectors on the edge of the Fibre Channel cards are no longer visible.
b. Grasp the riser card assembly by its top edge or upper corners and align the riser card with the
guides for the riser-card connector.
c. Press the riser card edge connector firmly into the slot 2 riser-card edge connector on the system
board. Make sure that the retention latches snap into place to secure the riser card into the slot 2
riser-card connector.
3. Replace the top cover. See “Replacing the top cover” on page 81.
4. Place the node in the rack. See “Replacing the SAN Volume Controller in a rack” on page 55.
Removing and replacing an Ethernet SFP transceiver
When a failure occurs on a single 10 gigabits per second (Gbps) Ethernet link, the small form-factor
pluggable (SFP) transceiver might need to be replaced.
DANGER
Multiple power cords. The product might be equipped with multiple power cords. To remove all
hazardous voltages, disconnect all power cords. (L003)
svc00322
1
2
or
1
2
svc00735
or
1
3
4
2
svc00734
svc00100
1

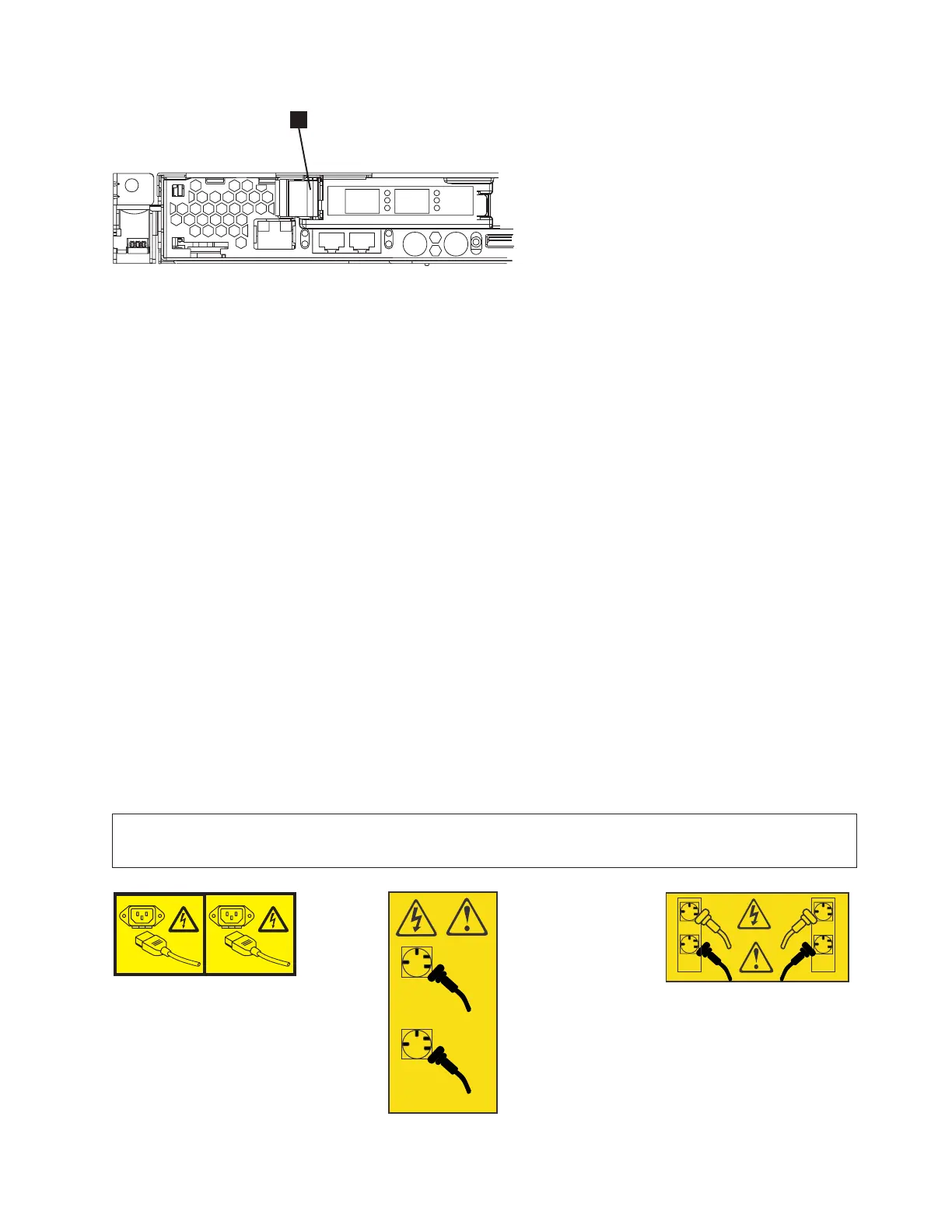

Figure 185. SAN Volume Controller 2145-8F2 or SAN Volume Controller 2145-8F4 PCI slot 1 card retainer
Chapter 2. Removing and replacing parts 189
|
|
|
|
|
|
|
|
|
|
||
|
||
|
|
