8. If you turned off the node during the service procedure, turn on the node.
Replacing the SAN Volume Controller 2145-8A4 top cover
This topic describes how to replace the SAN Volume Controller 2145-8A4 top cover.
To replace the top cover on the SAN Volume Controller 2145-8A4, complete the following steps:
1. Make sure that all internal cables are correctly routed so that they do not interfere with the cover
installation.
2. Set the cover on top of the node so that approximately 1.3 cm (0.5 in) extends from the rear.
3. Slide the cover forward and into position.
4. Replace the node in the rack.
Replacing the SAN Volume Controller 2145-8G4 top cover
This topic describes how to replace the SAN Volume Controller 2145-8G4 top cover.
Important: Before you slide the cover forward, make sure that all the tabs on both the front, rear, and
side of the cover engage the chassis correctly. If all the tabs do not engage the chassis correctly, it will be
very difficult to remove the cover later.
To replace the top cover on the SAN Volume Controller 2145-8G4, complete the following steps:
1. Position the internal cables so that they do not interfere with the cover installation.
2. Position the cover on top of the SAN Volume Controller 2145-8G4 and open the fan door.
3. Tighten the thumbscrew 1, which is shown in Figure 71 on page 84, until the cover correctly
engages all the inset tabs on the SAN Volume Controller 2145-8G4.
svc_bb1ka055

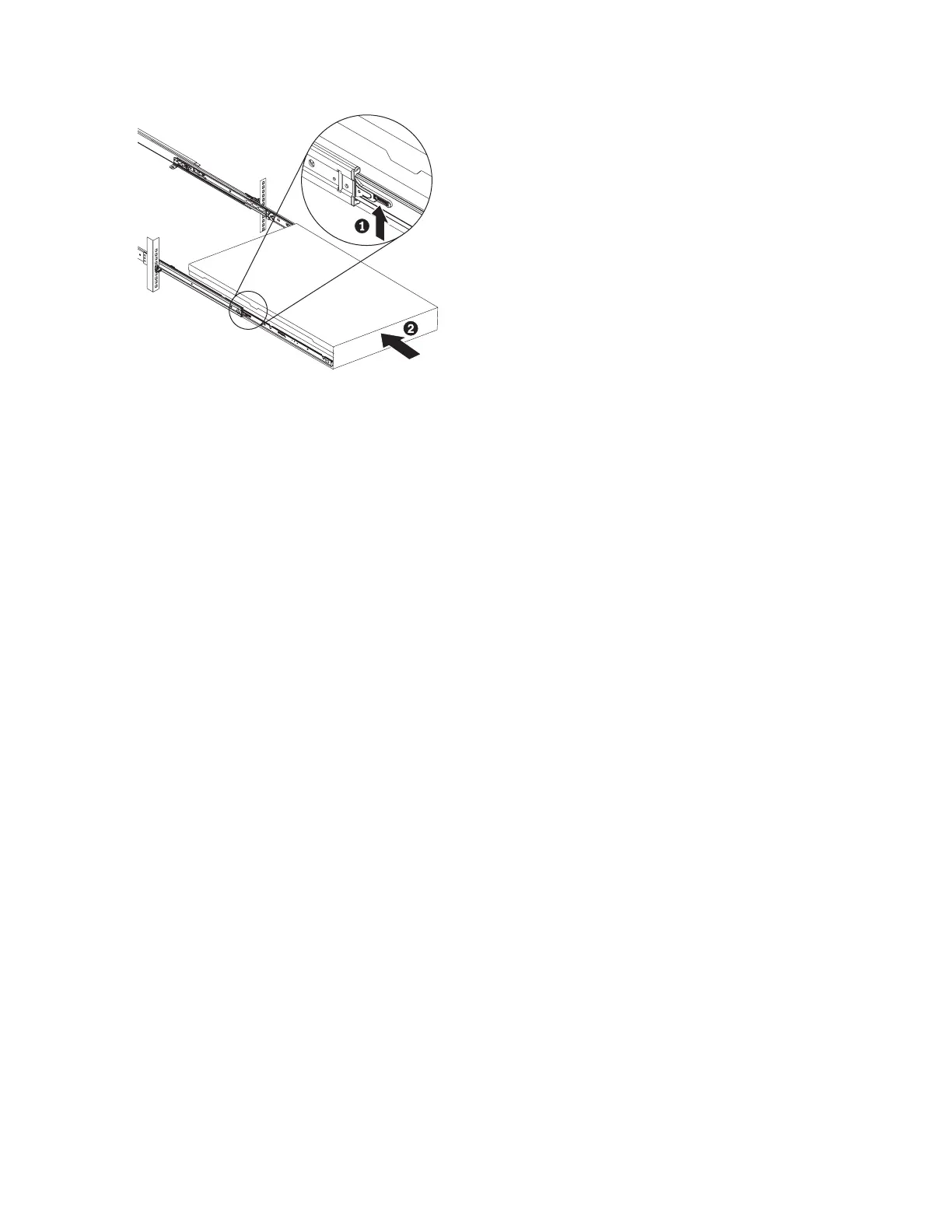

Figure 70. Raising the SAN Volume Controller 2145-CF8 or 2145-CG8 locking levers of the slide rails of the rack
Chapter 2. Removing and replacing parts 83
|
|
|
|
|
