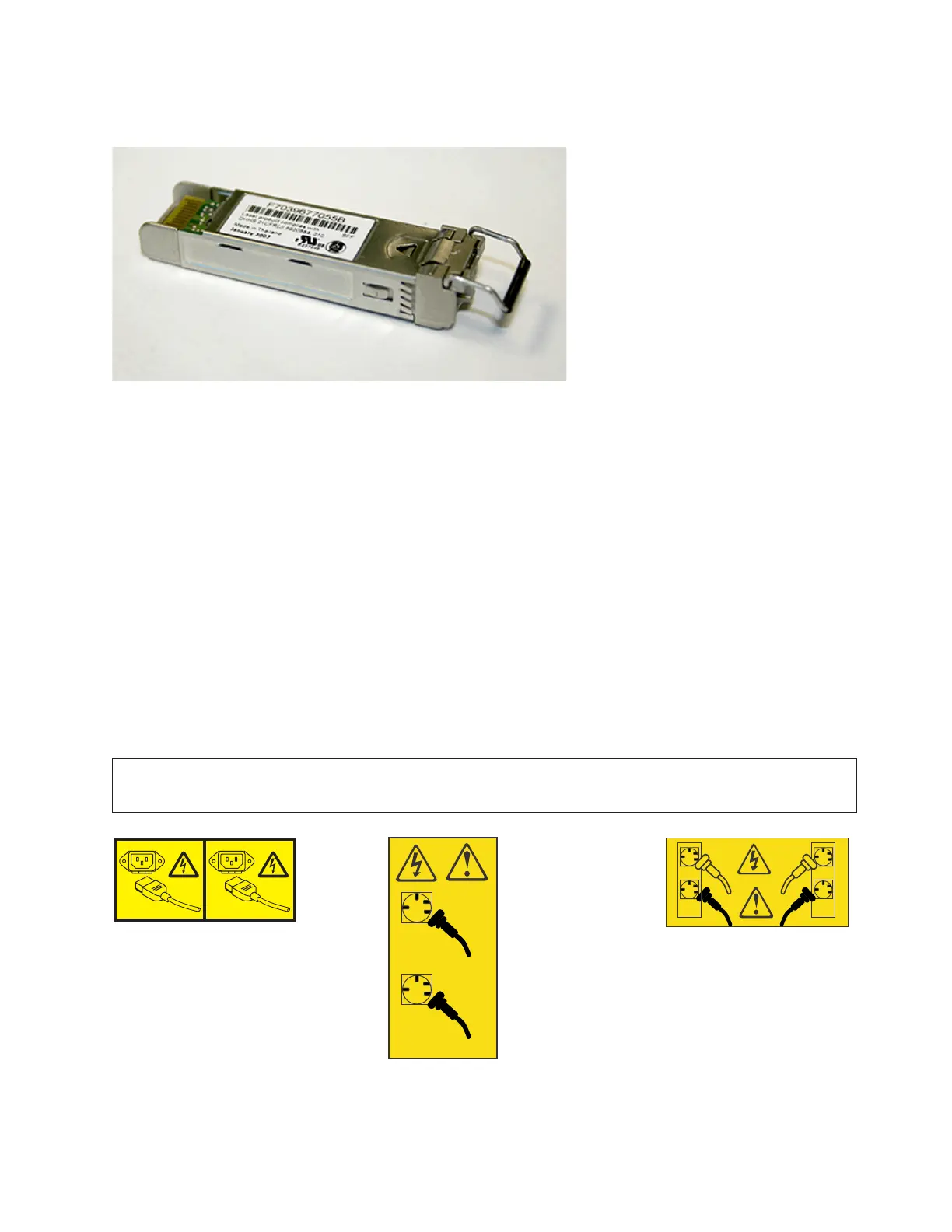

Figure 187 illustrates an SFP transceiver and its release handle.
7. Power on the node by using the front panel power button.
8. Confirm that the error is now fixed. Check the SAN port status using the front-panel display. If
possible, check the status given by the Ethernet monitoring tools of the customer. Either mark the
error as fixed or restart the node depending on the failure indication that you originally noted.
Removing the 10 Gbps Ethernet riser-card assembly
An authorized IBM service provider can remove the 10 Gbps Ethernet riser-card assembly.
Take precautions to avoid damage from static electricity. Wear an anti-static wrist strap and use a
static-protected mat or surface. For more information, see “Handling static-sensitive devices” on page xx.
Removing the SAN Volume Controller 2145-CG8 10 Gbps Ethernet riser-card
assembly
An authorized IBM service provider can remove the 10 gigabits per second (Gbps) Ethernet riser-card
assembly from the SAN Volume Controller 2145-CG8 node.
DANGER
Multiple power cords. The product might be equipped with multiple power cords. To remove all
hazardous voltages, disconnect all power cords. (L003)
svc00322
1
2
or
1
2
svc00735
or
1
3
4
2
svc00734
Figure 188 on page 192 shows the connectors on the rear of the SAN Volume Controller 2145-CG8:
svc00418
Figure 187. SFP transceiver
Chapter 2. Removing and replacing parts 191
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
||
|
|
|
|
