Replacing the SAN Volume Controller 2145-CG8 or 2145-CF8 operator-information
panel assembly
You can replace the operator-information panel on a SAN Volume Controller 2145-CG8 or 2145-CF8.
DANGER
Multiple power cords. The product might be equipped with multiple power cords. To remove all
hazardous voltages, disconnect all power cords. (L003)
svc00322
1
2
or
1
2
svc00735
or
1
3
4
2
svc00734
This service action assumes that:
v The node is turned off. If you must turn off the node, ensure that its data is mirrored and
synchronized, and that there are no dependent volumes, as described in MAP 5350 in the IBM System
Storage SAN Volume Controller Troubleshooting Guide.
v The power cables are disconnected.
v The top cover is removed.
Perform the following steps to replace the operator-information panel:
1. Read the safety information to which “Preparing to remove and replace parts” on page 26 refers.
2. From the front of the node, slide the operator-information panel into the node until it clicks into
place.
3. Inside the node, connect the cable to the rear of the operator information panel assembly.
1
2

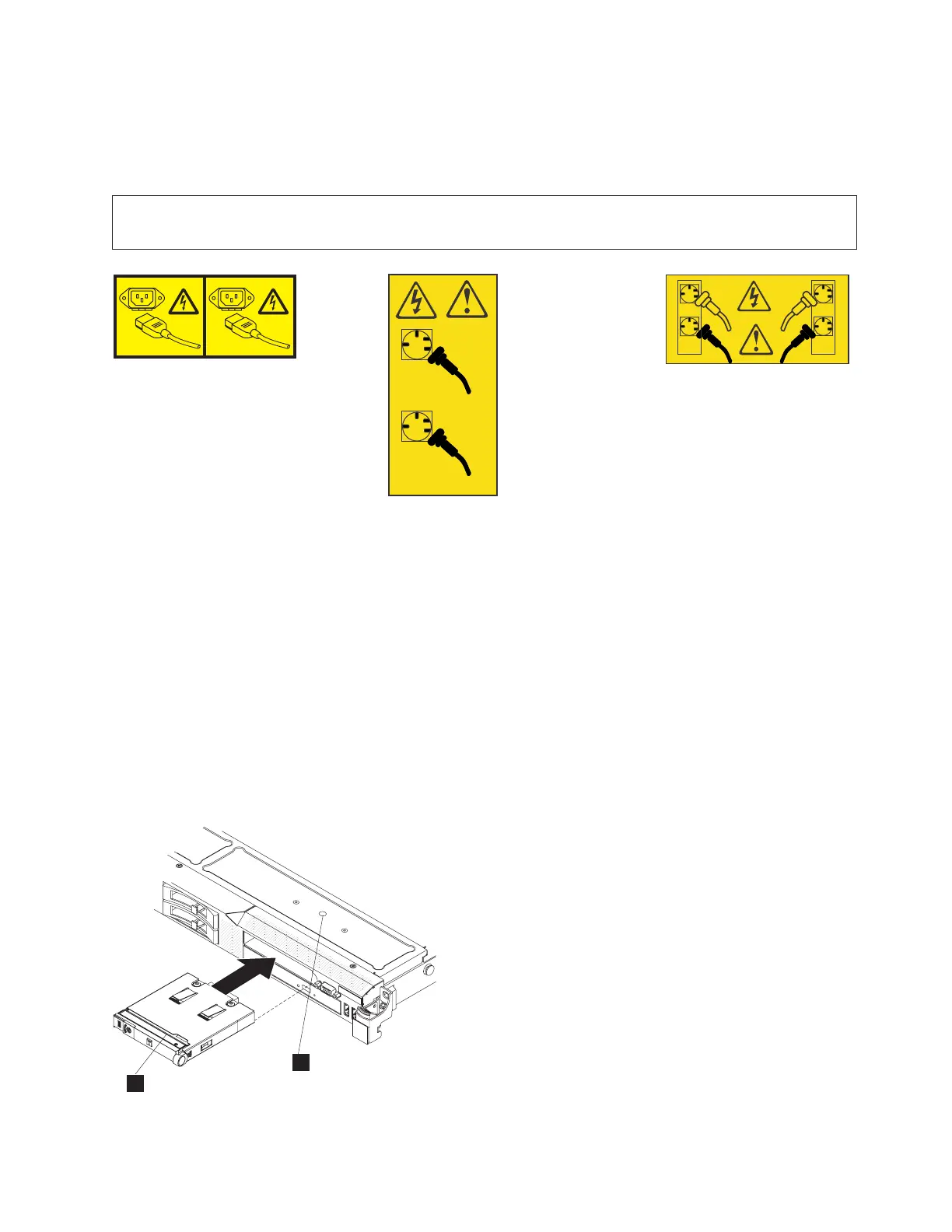

Figure 222. Replacing the SAN Volume Controller 2145-CG8 or 2145-CF8 operator-information panel
Chapter 2. Removing and replacing parts 225
|
|
|
|
|
|
|
|
|
|
||
|
||
|
|
|
|
