DANGER
Multiple power cords. The product might be equipped with multiple power cords. To remove all
hazardous voltages, disconnect all power cords. (L003)
svc00322
1
2
or
1
2
svc00735
or
1
3
4
2
svc00734
The SAN Volume Controller 2145-CG8 or 2145-CF8 uses two toolless cable-retention brackets, one to
retain each cable from the uninterruptible power-supply to one of the two SAN Volume Controller
2145-CG8 or 2145-CF8 power supplies, as shown in the following figure.
Each cable-retention bracket attaches to the back of the SAN Volume Controller 2145-CG8 or 2145-CF8
node. The brackets connect without screws.
This service action requires you to:
v Optionally, turn off the node.
v Disconnect the power cable that the retention bracket is on.
To remove a cable-retention bracket, perform these steps:
1. Read the safety information to which “Preparing to remove and replace parts” on page 26 refers.
2. Optional: Follow the procedure in MAP 5350 in the IBM System Storage SAN Volume Controller
Troubleshooting Guide to verify that the node data is mirrored and synchronized, and that there are no
dependent volumes before turning off the node.
1
2

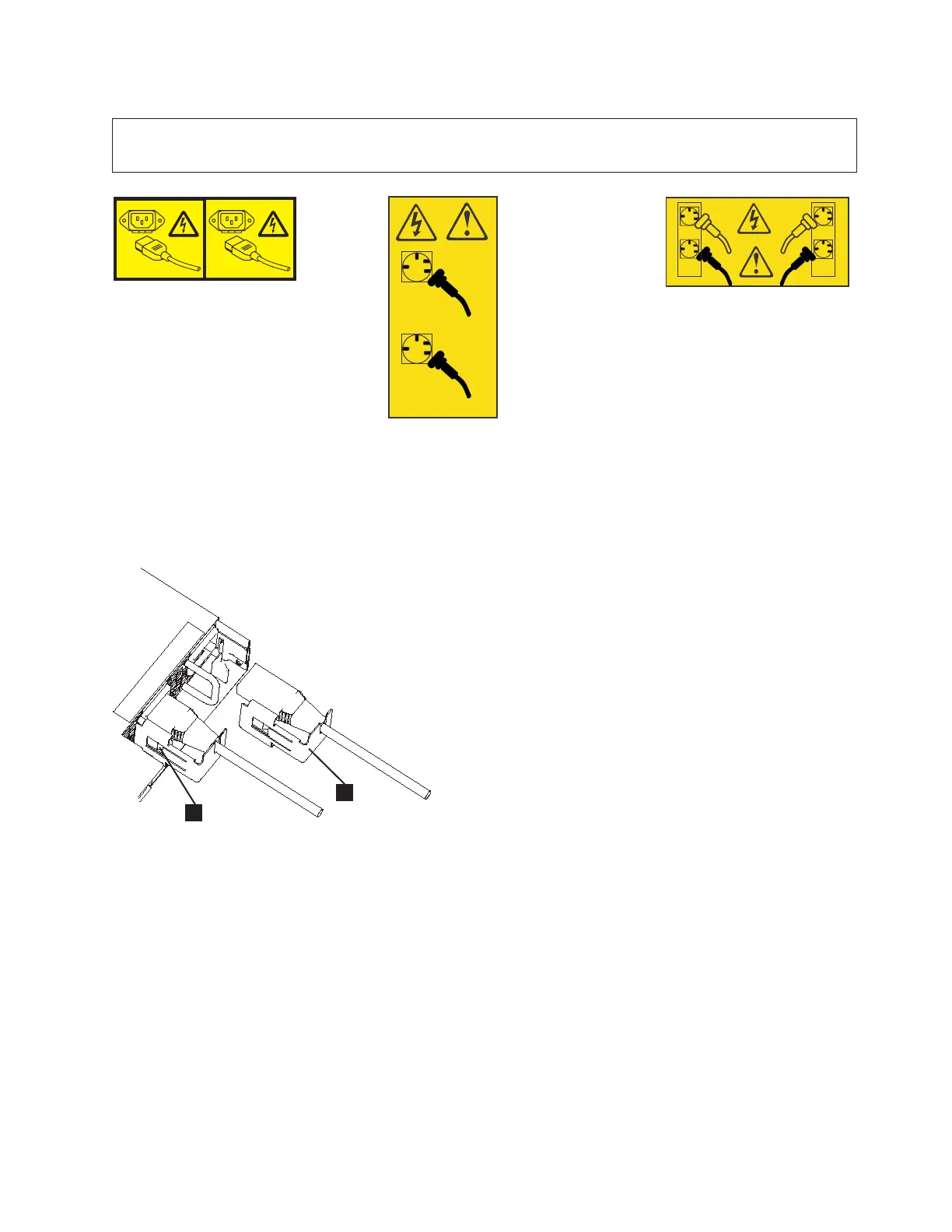

Figure 18. Cable-retention brackets
Chapter 2. Removing and replacing parts 35
|
|
|
|
|
||
|
||
|
|
|
|
|
|
|
