11. Remove the right air baffle, which is shown in Figure 285. First, pull the air baffle to the right and
then push the connector towards the back of the unit to release it from the support rail. Next, pull
the baffle forward and then upward to release the clip from the system board. Finally, lift the baffle
free.
12. Carefully remove all the memory modules and set them aside on the static-protected surface. See
“Removing the memory modules (DIMM)” on page 104.
svc00380
1
2

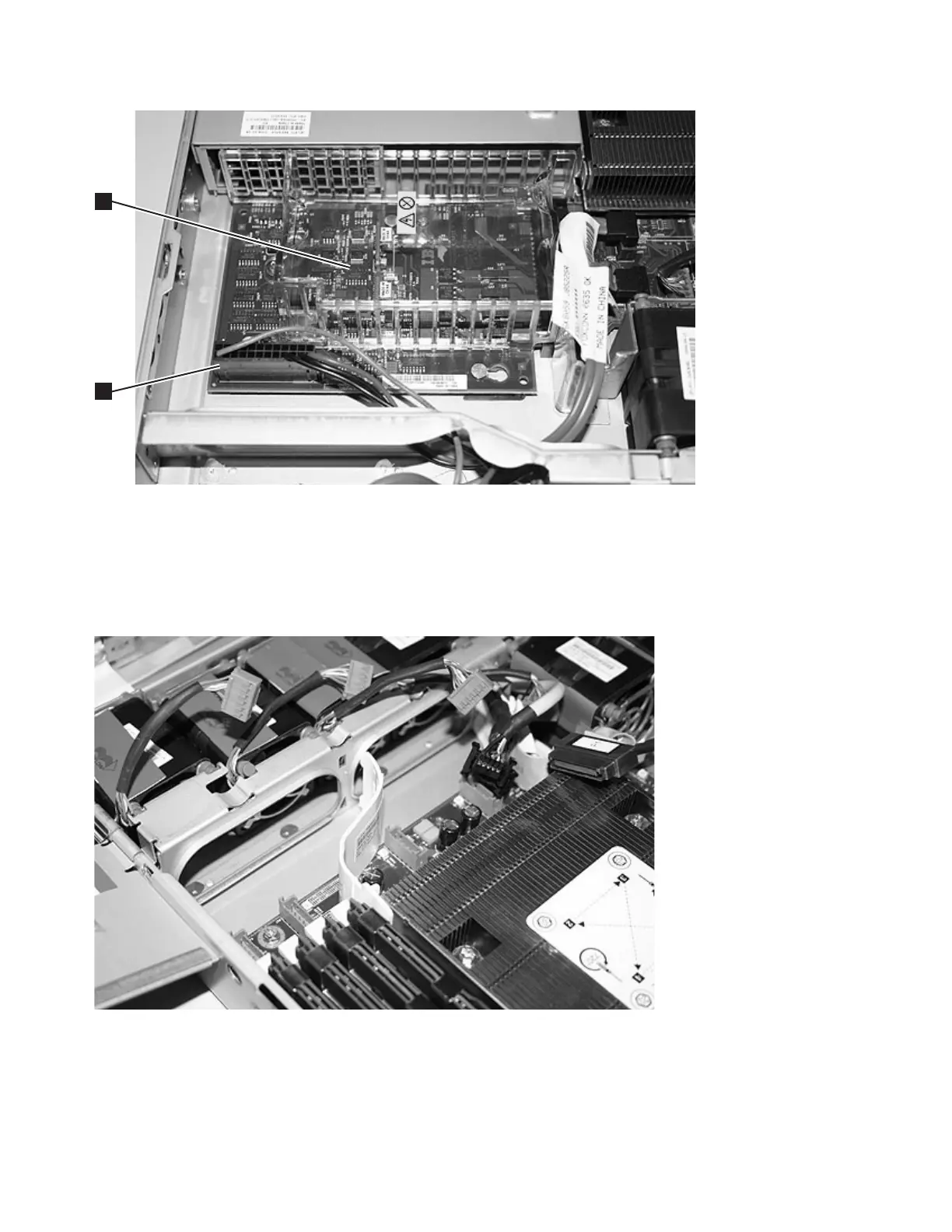

Figure 284. Disk power cable connector and power backplane on the SAN Volume Controller 2145-8G4 system board
svc00381
Figure 285. Right air baffle on the SAN Volume Controller 2145-8G4 system board
284 IBM SAN Volume Controller Hardware Maintenance Guide
