7. To ease other tasks, remove fan 2.
8. Notice how the cables are arranged within and beside the left air baffle
5
. Then remove the left air
baffle by pulling up gently.
svc00377
3
4
2
1
5

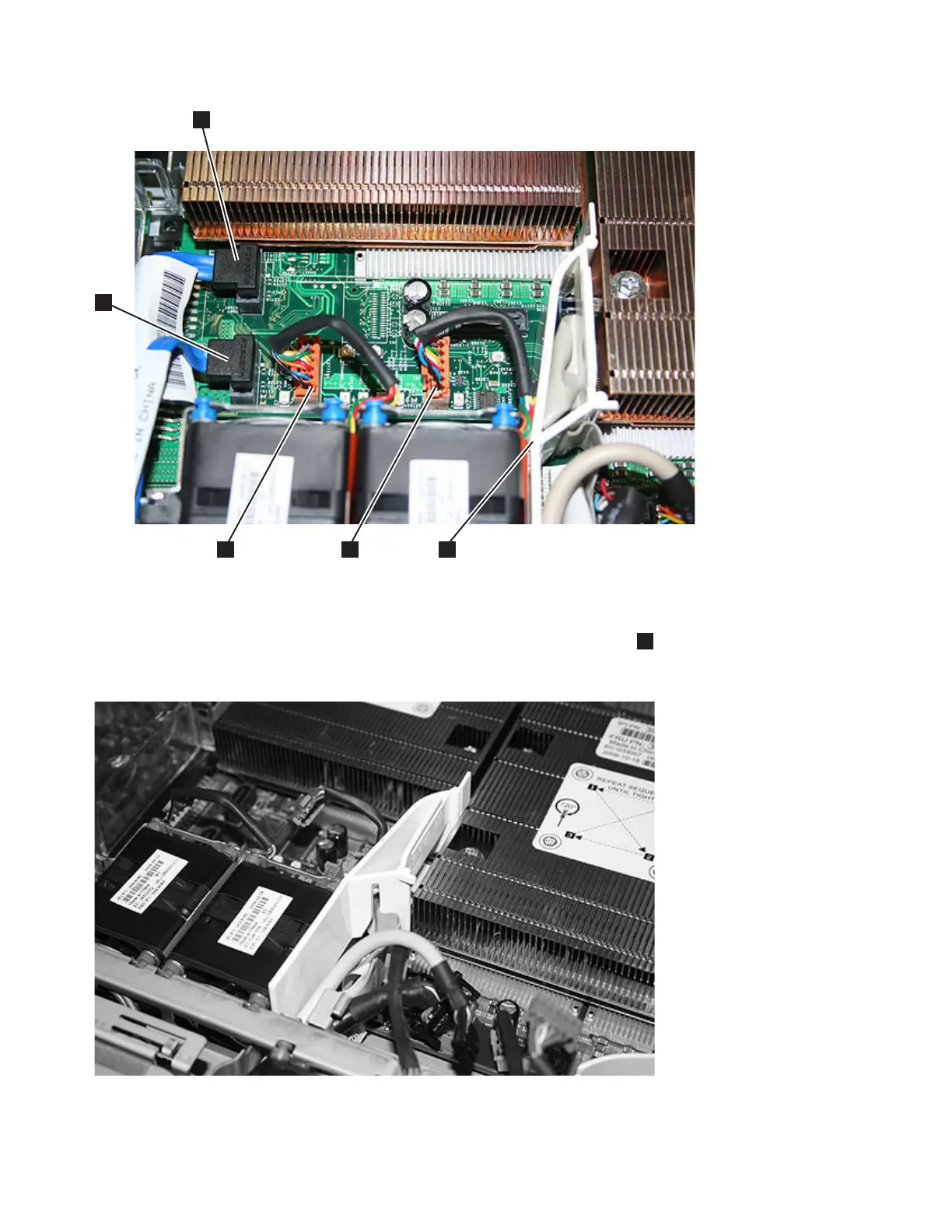

Figure 281. Connectors on the SAN Volume Controller 2145-8G4 system board
svc00379
Figure 282. Left air baffle on the SAN Volume Controller 2145-8G4
282 IBM SAN Volume Controller Hardware Maintenance Guide
