1. Verify that you have all the items that you need for installing the support rails and that you have
identified the front of each rail.
Slide rail (left)
Slide rail (right)
M6 screws (quantity 4)
2. Open the rear-slide-rail hooks, as shown in Figure 48.
Note: The maximum distance between the front and the rear EIA rails of the rack is 810 mm (31.9
in.).
Each slide rail is marked with either an R (right) or an L (left). Select one of the slide rails and pull
the rear bracket all the way back. If a thumbscrew is installed in the slide rail, remove it.
3. Install the rear end of the slide rails, as shown in Figure 49 on page 68.

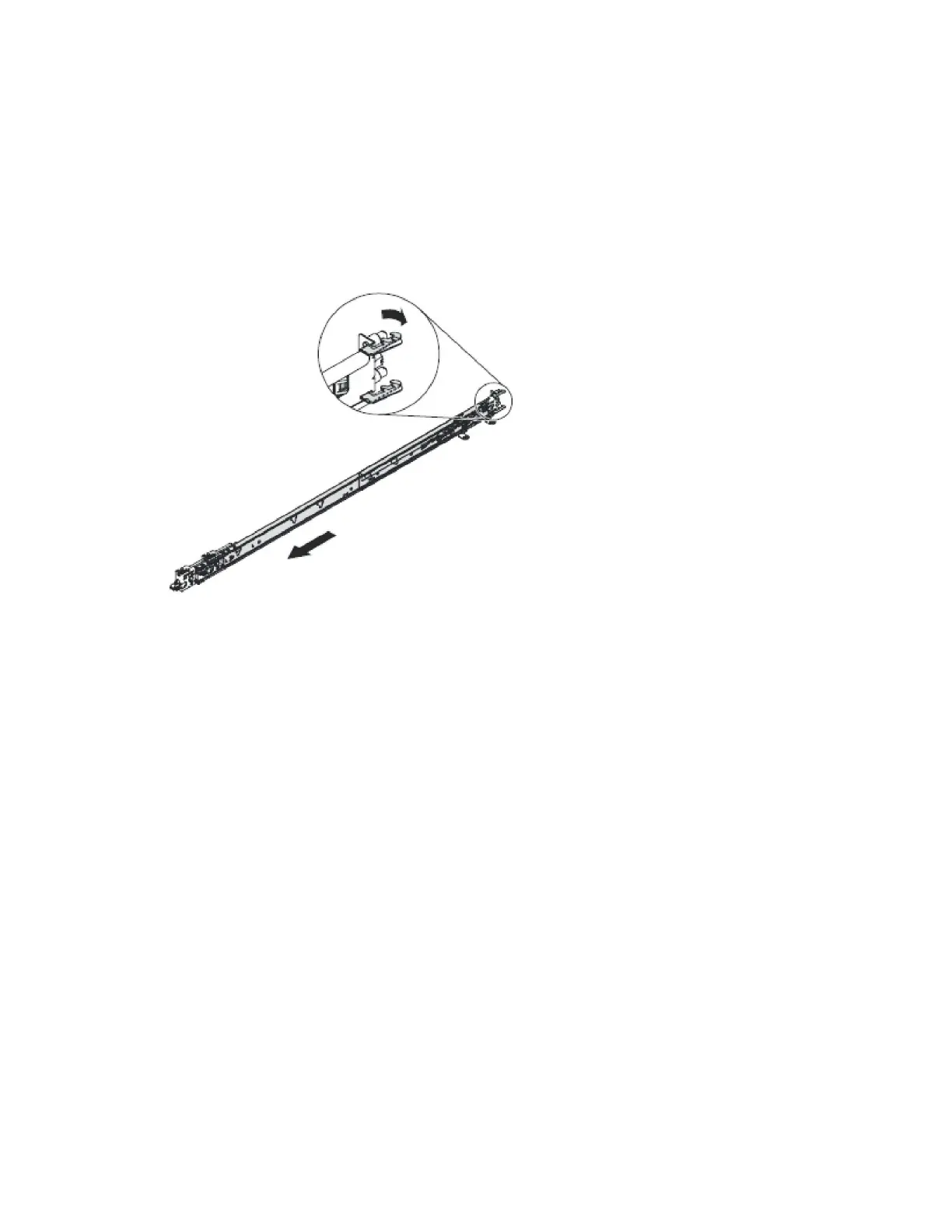

Figure 48. Opening the rear slide-rail hooks
Chapter 2. Removing and replacing parts 67
