IBM SAN Volume Controller 2145-CG8 User Manual

1
Release button
2
Dummy CD/DVD drive
4. Remove the CD interposer card (
2
in Figure 214) by unscrewing it, lifting it slightly and then
removing the cable from it.
1
Screw
2
Interposer card
3
Dummy CD/DVD drive
5. Remove fan 3, as shown in Figure 215 on page 220.
Figure 213. SAN Volume Controller 2145-8G4 dummy CD/DVD drive
svc00257
1
3
2

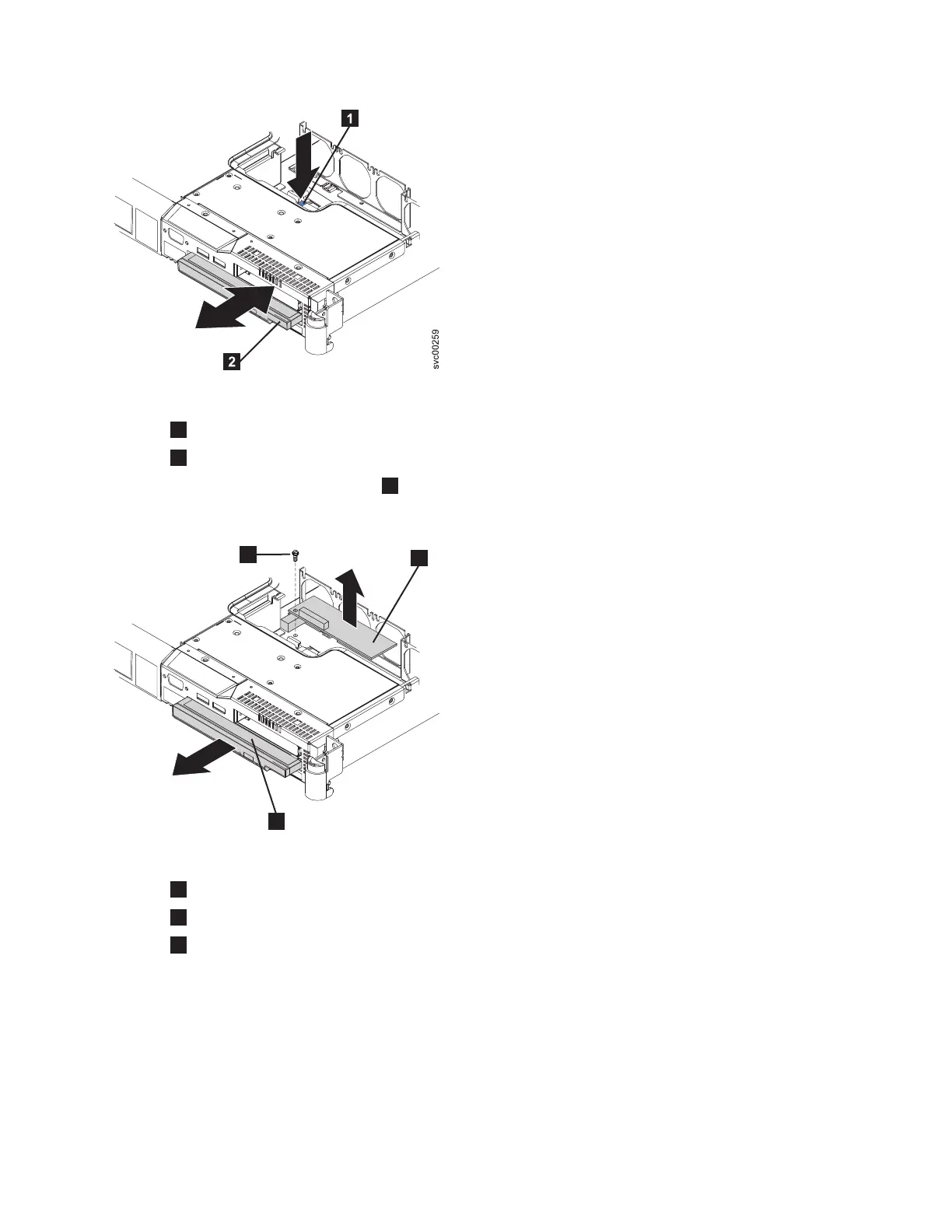

Figure 214. Removing the CD interposer card
Chapter 2. Removing and replacing parts 219
