IBM SAN Volume Controller 2145-CG8 User Manual

3. Slide the backplane into the card guides, making sure not to trap or pinch any nearby wires or
cables.
4. Press firmly until the backplane is fully seated.
5. Rotate the air deflector (
1
in Figure 126 on page 138) into place, making sure not to pinch any
cables beneath it, and press it down firmly.
6. Reconnect the SATA cables to the system board. When you look from the front, SATA 0 is the drive
number for the left bay and SATA 2 is the drive number for the right bay.
Note: Make sure that the cable drive number matches the connector number on the system board.
The cables will cross over each other, as shown in Figure 128 on page 140.
1
2
svc00482

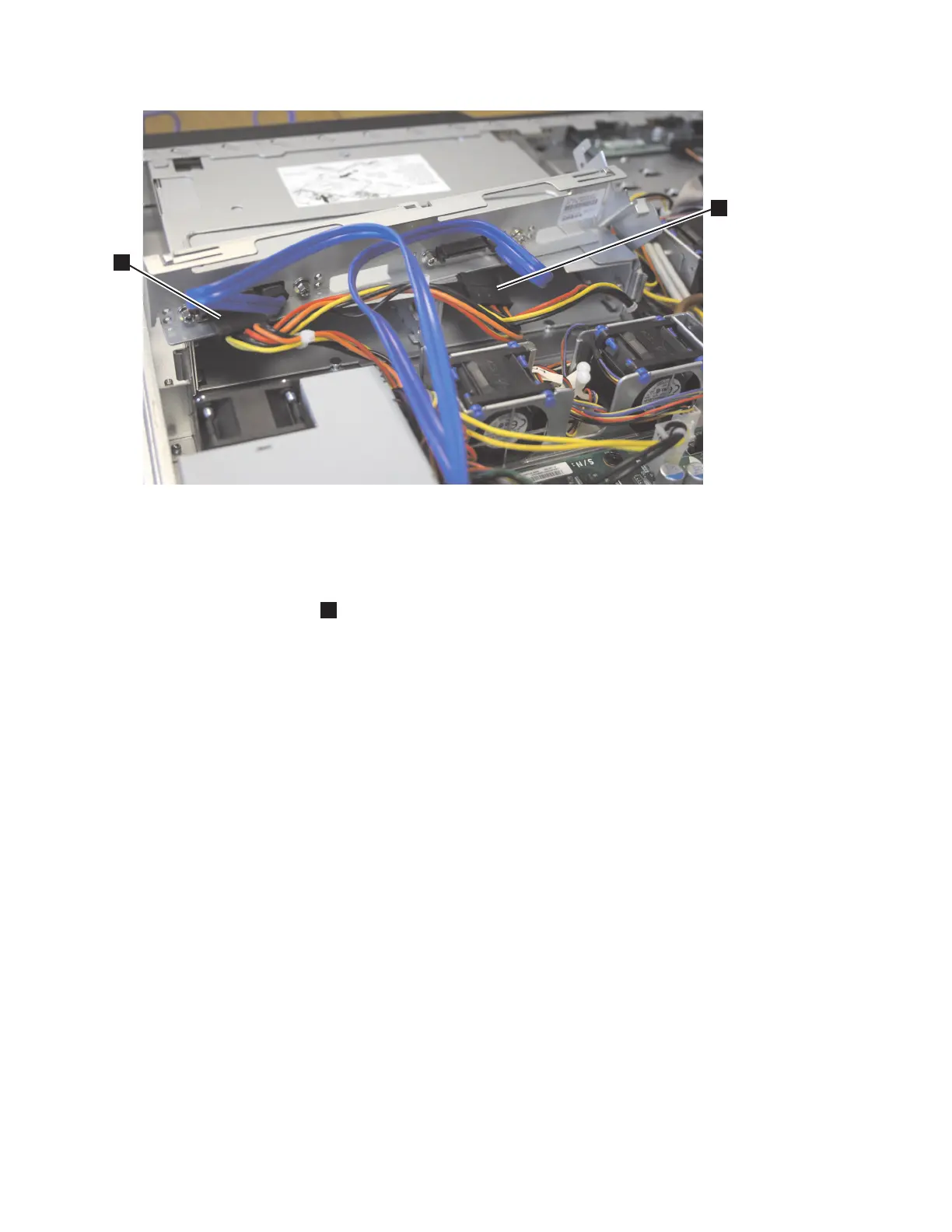

Figure 127. SAN Volume Controller 2145-8A4 power supply connectors
Chapter 2. Removing and replacing parts 139
