9.3.3 Terminal connection of DC-03F

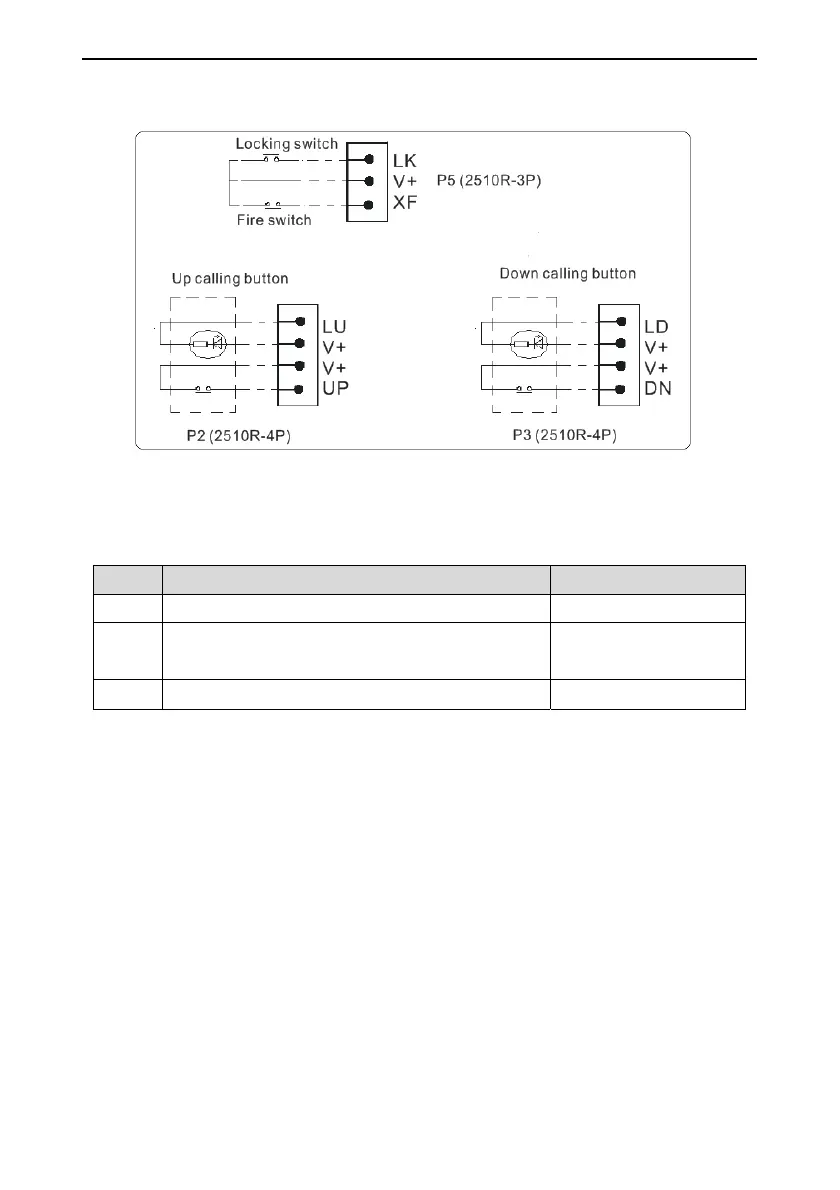

Figure 9-7 Switch connection of the calling displaying board
9.3.4 Parameters setting of DC-03F
9.3.4.1 Table of parameters
Code Definition Default value
K Address of the displaying board, range: 0~64 0
H
Function selection: lock enabling, fire enabling and
arrow selection
0
G Spare parameter 0
9.3.4.2 Address setting of the hall displaying board
If the hall displaying board is DC-03F, set the value of ‘K’ to correspond to the floor number. That is,
the K value of the bottom floor is 1 and the maximum cannot exceed 64.
When the button control of the back and front door is applied, the address of DC-03F board starts
from K=33 and the maximum address can not exceed 64.
9.3.5 Function setting of the displaying board
9.3.5.1 Definition of ‘H’
‘H’ is a hex data composing of 8 binaries. 4 low bit can be transformed into low hex bit and 4 high
bit can be transformed into high hex bit. Below are the definitions:
