INVT EC160 User Manual

User manual of EC160 elevator intelligent integrated machine Installation and wiring
22
4.1 Dimensions

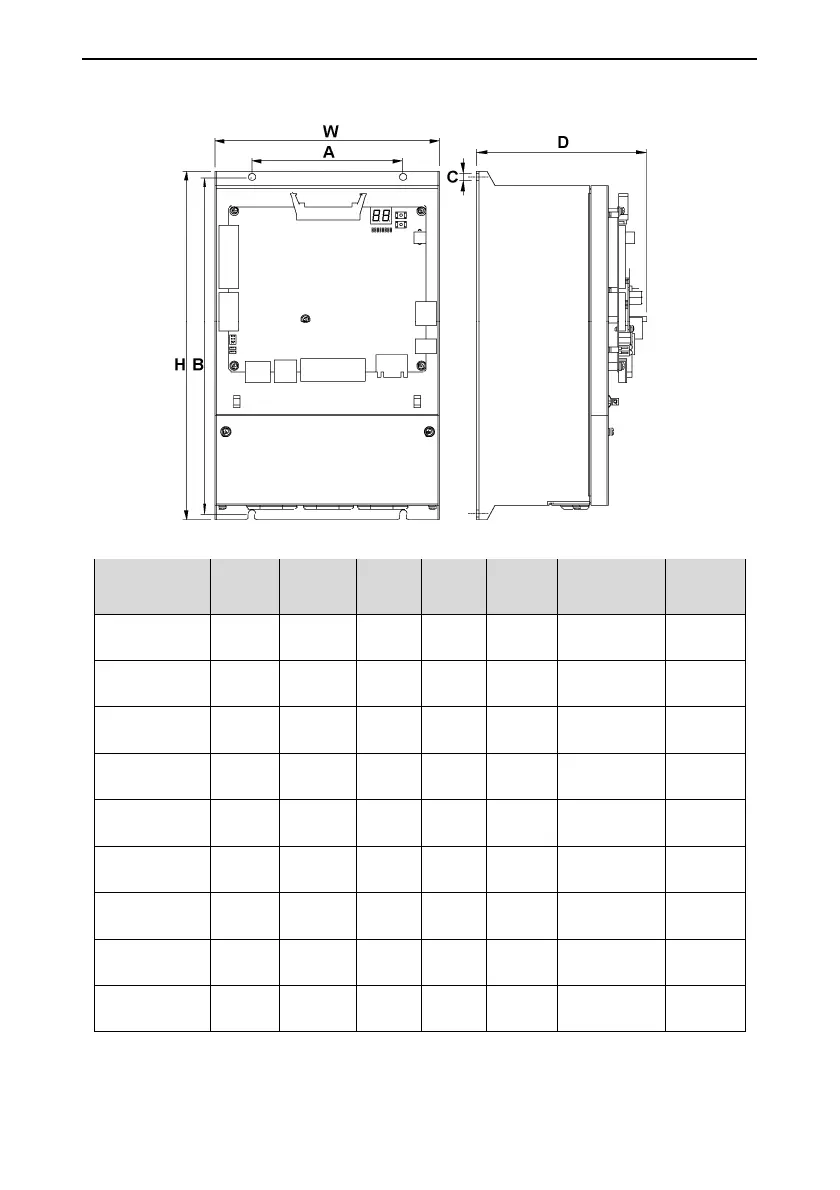

Figure 4-1 Installation dimension
Model W (mm) H (mm) D (mm) A (mm) B (mm)
C hole size
(mm)
Screw
bolt
EC160-004-2 223 347 169 150 334.5
φ7 M6
EC160-5R5-2 223 347 169 150 334.5
φ7 M6
EC160-7R5-2 223 347 169 150 334.5
φ7 M6
EC160-011-2 290 426 233 235 410
φ7 M6
EC160-015-2 290 426 233 235 410
φ7 M6
EC160-004-4 223 347 168 150 334.5
φ7 M6
EC160-5R5-4 223 347 168 150 334.5
φ7 M6
EC160-7R5-4 223 347 169 150 334.5
φ7 M6
EC160-011-4 223 347 169 150 334.5
φ7 M6
