RL78/G1H CHAPTER 7 TIMER ARRAY UNIT
R01UH0575EJ0120 Rev. 1.20 Page 199 of 920
Dec 22, 2016
7.8.2 Operation as external event counter
The timer array unit can be used as an external event counter that counts the number of times the valid input
edge (external event) is detected in the TImn pin. When a specified count value is reached, the event counter
generates an interrupt. The specified number of counts can be calculated by the following expression.
Timer count register mn (TCRmn) operates as a down counter in the event counter mode.
The TCRmn register loads the value of timer data register mn (TDRmn) by setting any channel start trigger bit
(TSmn, TSHm1, TSHm3) of timer channel start register m (TSm) to 1.
The TCRmn register counts down each time the valid input edge of the TImn pin has been detected. When
TCRmn = 0000H, the TCRmn register loads the value of the TDRmn register again, and outputs INTTMmn.
After that, the above operation is repeated.
An irregular waveform that depends on external events is output from the TOmn pin. Stop the output by setting
the TOEmn bit of timer output enable register m (TOEm) to 0.
The TDRmn register can be rewritten at any time. The new value of the TDRmn register becomes valid during
the next count period.

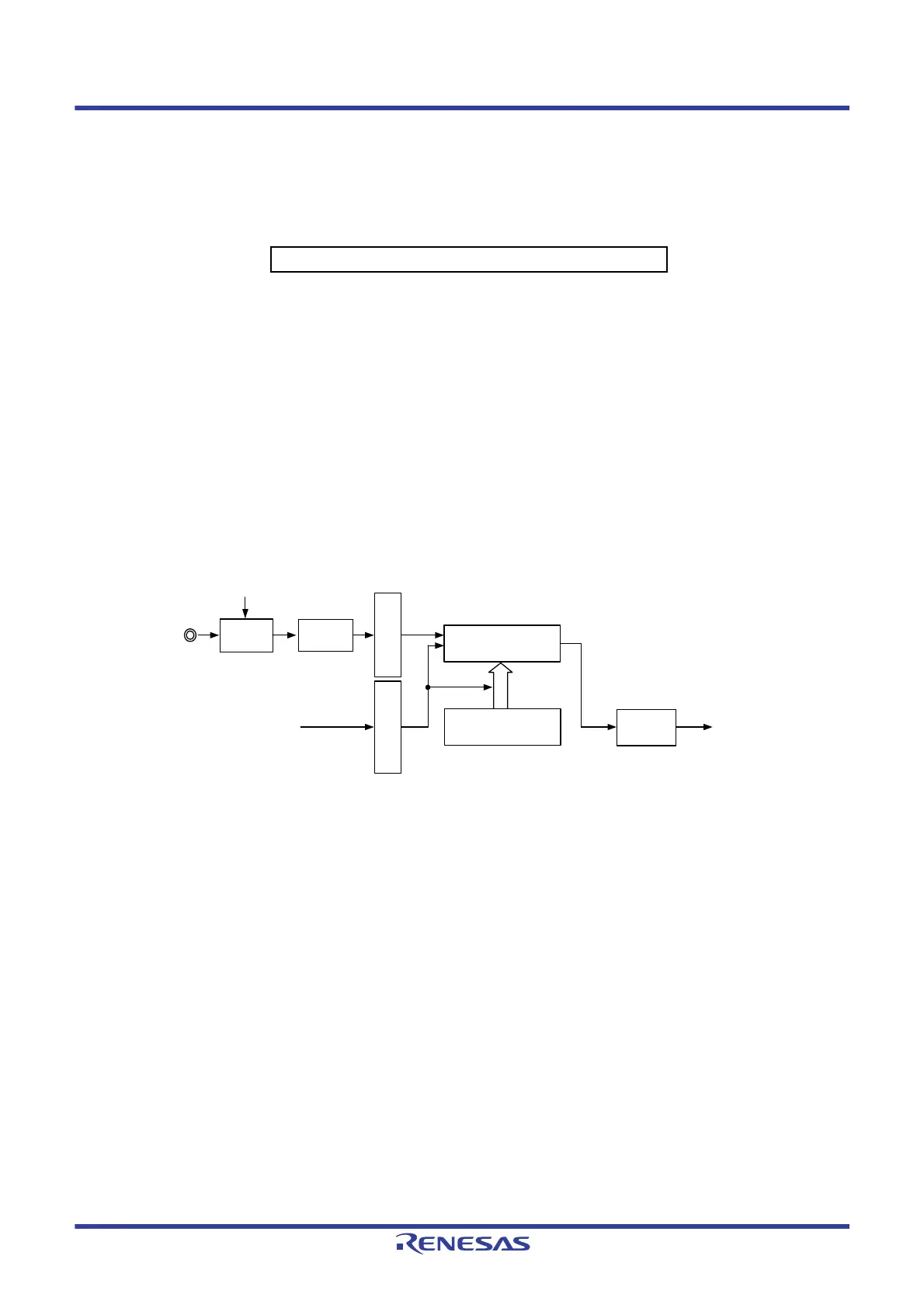

Figure 7 - 47 Block Diagram of Operation as External Event Counter
Remark m: Unit number (m = 0), n: Channel number (n = 3)
Specified number of counts = Set value of TDRmn + 1
Timer counter
register mn (TCRmn)
Interrupt
controller
Edge
detection
Interrupt signal
(INTTMmn)
Timer data
register mn (TDRmn)
TSmn
Clock selectionTrigger selection
TImn pin
Noise
filter
TNFENxx
To Next Page
