RL78/G1H CHAPTER 3 PIN FUNCTIONS
R01UH0575EJ0120 Rev. 1.20 Page 24 of 920
Dec 22, 2016

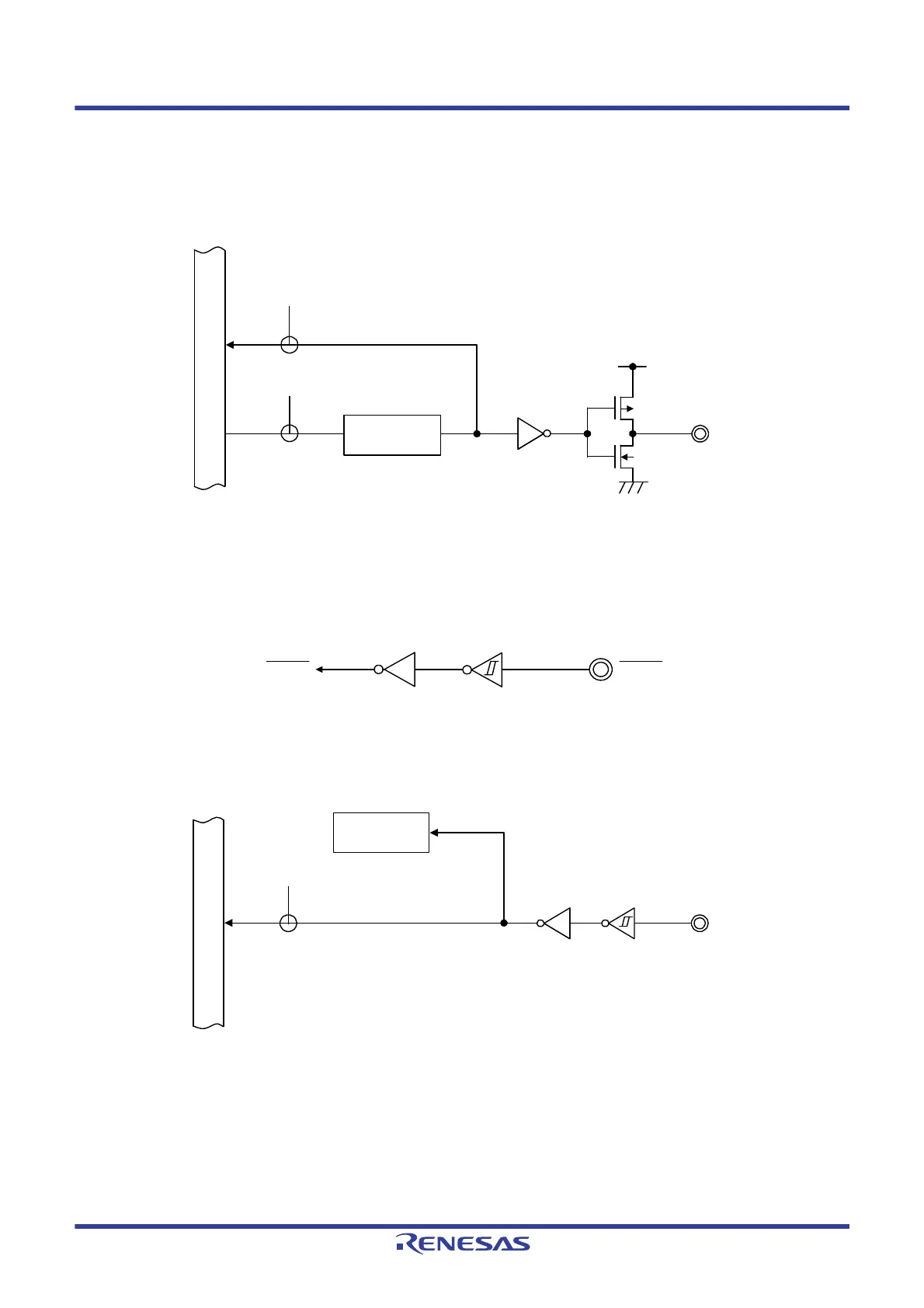

3.4 Pin Block Diagrams
For the pin types listed in 3.1 Port Functions, pin block diagrams are shown in Figures 3 - 1 to 3 - 13.
Figure 3 - 1 Pin Block Diagram of Pin Type 1-1-1
Figure 3 - 2 Pin Block Diagram of Pin Type 2-1-1
Figure 3 - 3 Pin Block Diagram of Pin Type 2-1-2
Remark Refer to 3.1 Port Functions for alternate functions.
Output latch
(Pmn)
RD
WR
PORT
Internal bus
VDD
VSS
P-ch
N-ch
Pmn
Alternate
function
Internal bus
RD
Pmn
To Next Page
