RL78/G1H CHAPTER 2 CONNECTION BETWEEN MCU AND RF TRANSCEIVER

R01UH0575EJ0120 Rev. 1.20 Page 15 of 920

Dec 22, 2016

2.5 Power Configuration

Power is supplied to both the MCU and RF unit. The RF unit includes a DC-DC converter. The power switched at

the DC-DC converter is output to the DDCOUT pin. The power is smoothed by an inductor and capacitor to step

down the voltage, and then supplied to the REGIN.

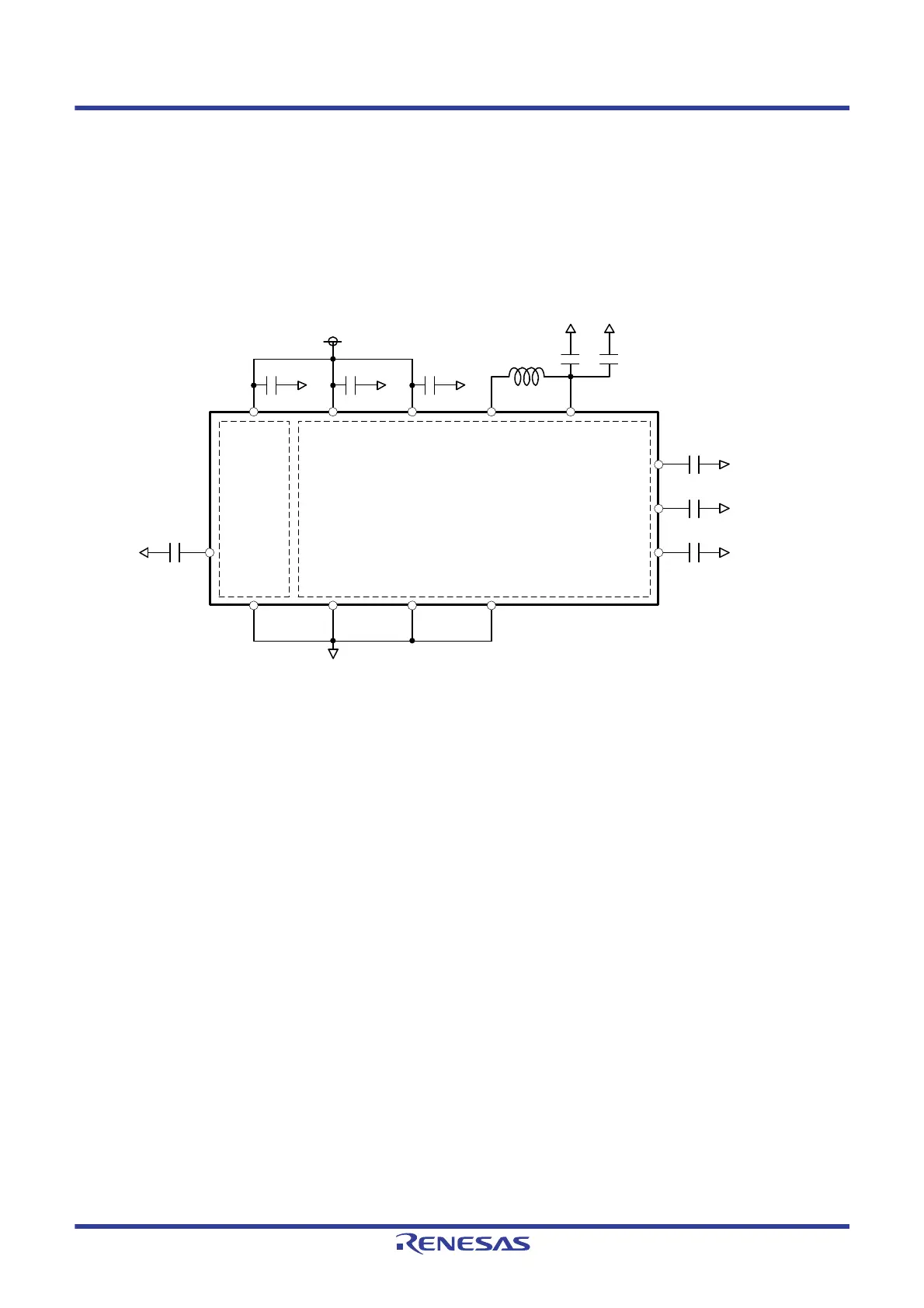

Figure 2 - 2 shows the power configuration of the RL78/G1H.

Figure 2 - 2 Power Configuration

47 μF

1 μF

* Place the entire capacitor and

inductor elements close to the pin.

1 μF

0.47 μF

10 μH

1.8 to 3.6 V

MCU

VDD VCCDDC VCCRF DDCOUT REGIN

VREGO1

VREGO2

VREGO3

VSSDDCVSS AGNDRF2AGNDRF1

REGC
