RL78/G1H CHAPTER 16 DATA TRANSFER CONTROLLER (DTC)
R01UH0575EJ0120 Rev. 1.20 Page 518 of 920
Dec 22, 2016
16.3.1 Allocation of DTC Control Data Area and DTC Vector Table Area
The DTCBAR register is used to set the 256-byte area where DTC control data and the vector table within the
RAM area.

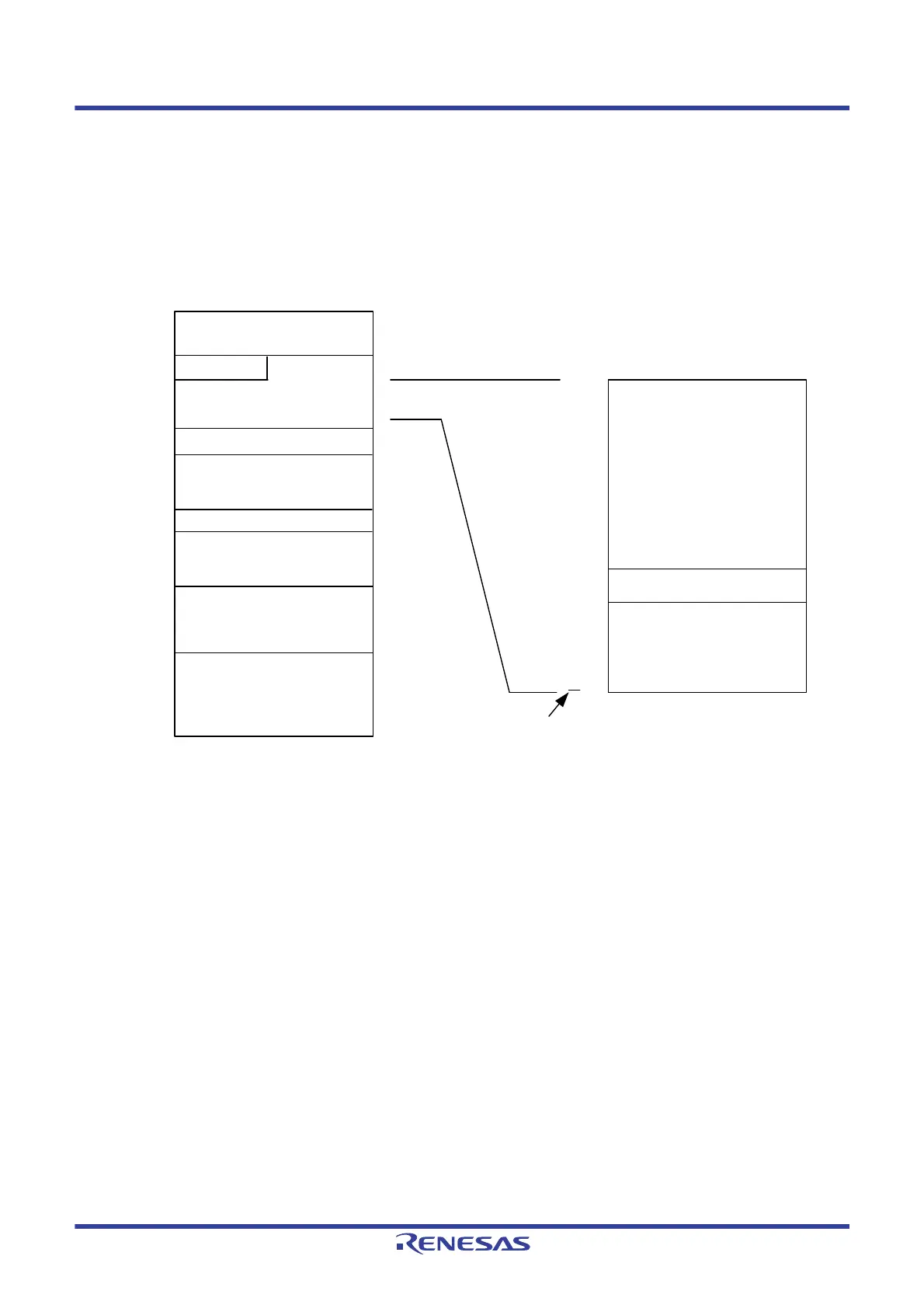

Figure 16 - 2 shows a Memory Map Example when DTCBAR Register is Set to FBH.
In the 192-byte DTC control data area, the space not used by the DTC can be used as RAM.
Figure 16 - 2 Memory Map Example when DTCBAR Register is Set to FBH
The areas where the DTC control data and vector table can be allocated differ depending on the product.
Caution 1. It is prohibited to use the general-purpose register (FFEE0H to FFEFFH) space as the DTC
control data area or DTC vector table area.
Caution 2. Make sure the stack area, the DTC control data area, and the DTC vector table area do not
overlap.
Caution 3. The internal RAM area in the following products cannot be used as the DTC control data area
or DTC vector table area when using the self-programming and data-flash functions.
R5F11FLL: F3F00H to F4309H
Caution 4. The internal RAM area in the following products cannot be used as the DTC control data area
or DTC vector table area when using the on-chip debugging trace function.
R5F11FLL: F4300H to F46FFH
F3000H
F3F00H
Extended special function
register (2nd SFR)
General-purpose
register
Special function register
(SFR)
Reserved
FFF00H
F0800H
F0000H
FFFFFH
RAM
48 Kbytes
00000H
F1000H
Data flash memory
FFEE0H
Mirror
7FFFFH
Code flash memory
512 Kbytes
Reserved
FFC00H
F
FBFFH
F
FB00H
FFB40H
DTC control data area
192 bytes
DTC vector table area
40 bytes
Reserved area
24 bytes
DTC used area
256 bytes
Value set in DTCBAR register
FFB27H
