13.5 Input Voltage and Conversion Results
The relationship between the analog input voltage input to the analog input pins and the theoretical A/D conversion
result (stored in the 10-bit A/D conversion result register (ADCR)) is shown by the following expression.
or
where, INT( ): Function which returns integer part of value in parentheses
V
AIN: Analog input voltage
AV
REF:AVREF pin voltage
ADCR: A/D conversion result register (ADCR) value
SAR: Successive approximation register
Figure 13 - 17 shows the Relationship Between Analog Input Voltage and A/D Conversion Result.

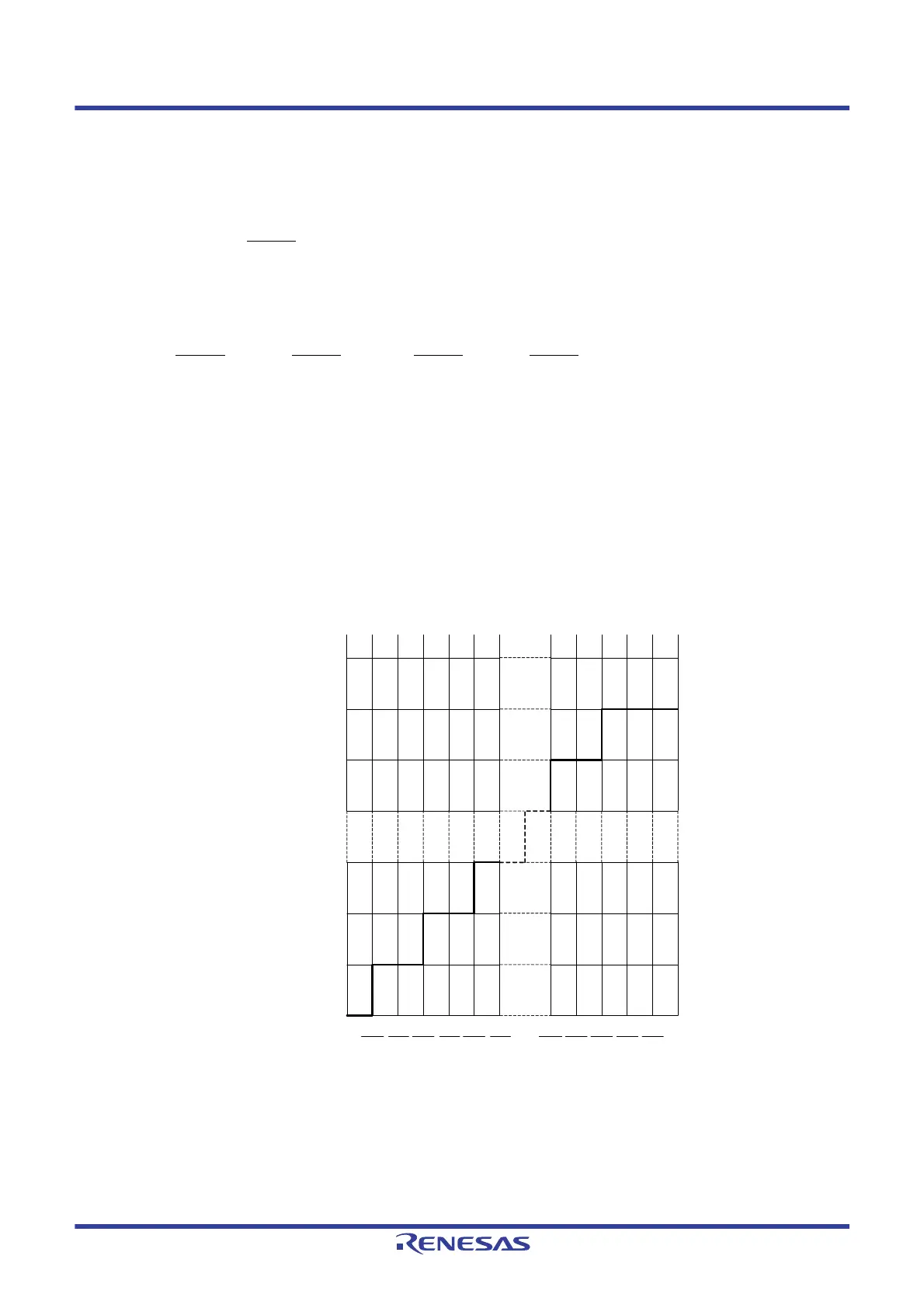

Figure 13 - 17 Relationship Between Analog Input Voltage and A/D Conversion Result
Remark AVREF: The + side reference voltage of the A/D converter. This can be selected from AVREFP, and VDD.
SAR = INT ( × 1024 + 0.5)
ADCR = SAR × 64
V
AIN
AVREF
( − 0.5) × ≤ VAIN < ( + 0.5) ×
ADCR
64
AVREF
1024
ADCR
64
AVREF
1024
1
2048
1
1024
3
2048
2
1024
5
2048
3
1024
1023
1022
1021
3
2
1
0
FFC0H
FF80H
FF40H
00C0H
0080H
0040H
0000H
A/D conversion result
SAR ADCR
Input voltage/AVREF
1
2043
2048
1022
1024
2045
2048
1023
1024
2047
2048
