Punch Unit B702 (For B804/B805)
D373/D374 70 SM

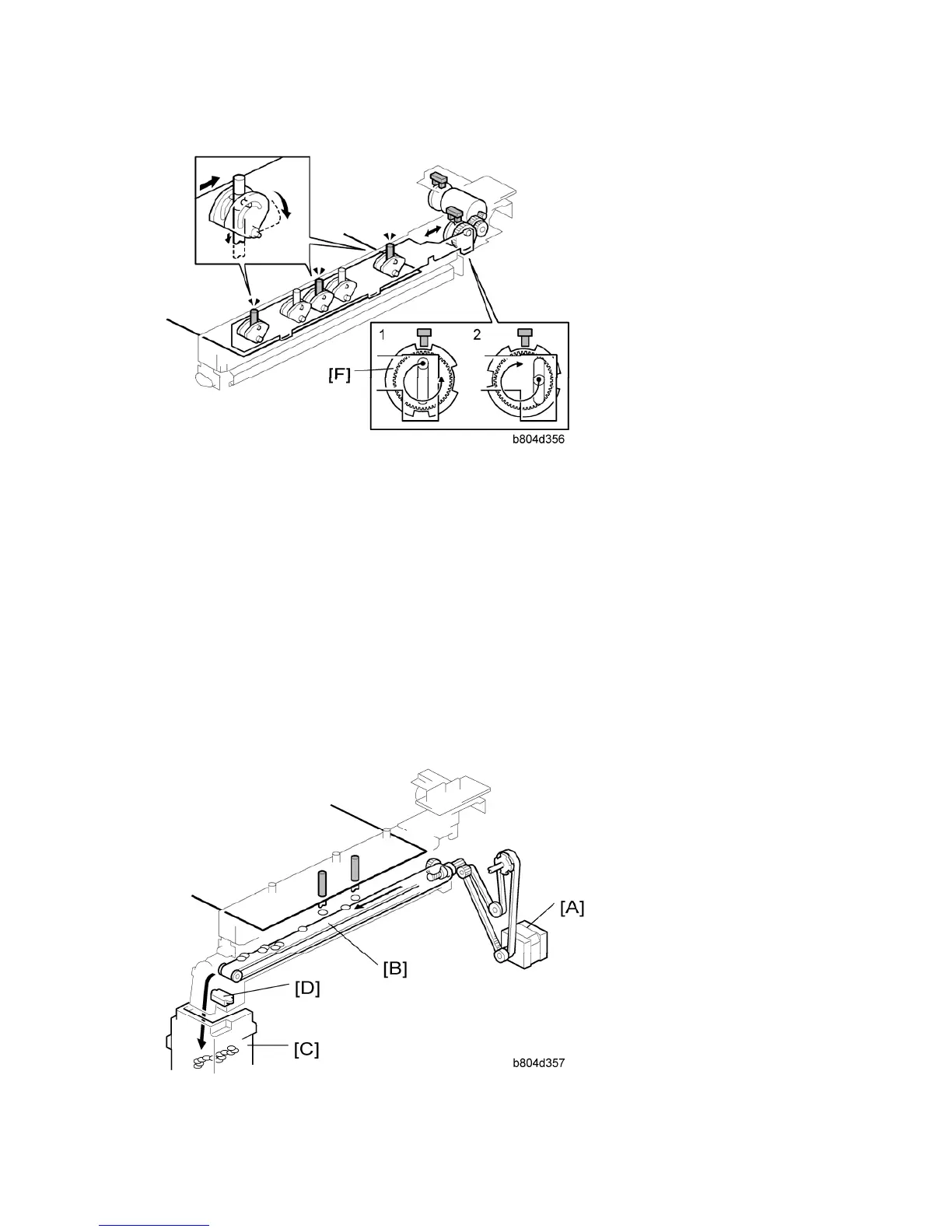

The timing for 2-hole punching [E] is different from 3-hole punching [F].
When the punch unit is at the punching position, the punch motor turns until the encoder
detects the starting position for 2-hole or 3-hole punching.
This is the ‘1’ position in the diagrams (the top diagram is for 2-hole punching, and the
bottom diagram is for 3-hole punching).
Then, the punch drive motor turns counter-clockwise to the ‘2’ position. This movement
punches the holes in the paper.
Then, the punch drive motor turns clockwise to the ‘1’ position, to be ready for the next sheet
of paper.
2.8.3 PUNCH HOPPER MECHANISM
