Timing Charts
SM 6-13 D062/D063/D065/D066
Trouble-
shooting
(7): Relay sensor ON > Registration sensor does not switch ON at the correct time.
(8): Relay sensor OFF> Registration sensor does not switch OFF at the correct time.
(9):
Registration motor ON > Fusing unit paper exit sensor does not switch ON at the
correct time.
(10):
Fusing unit paper exit sensor ON > Exit unit entrance sensor does not switch ON at
the correct time.
(11):
Exit unit entrance sensor ON> Paper exit sensor does not switch ON at the correct
time.
(12):
Registration motor OFF > Paper exit sensor does not switch OFF at the correct
time.

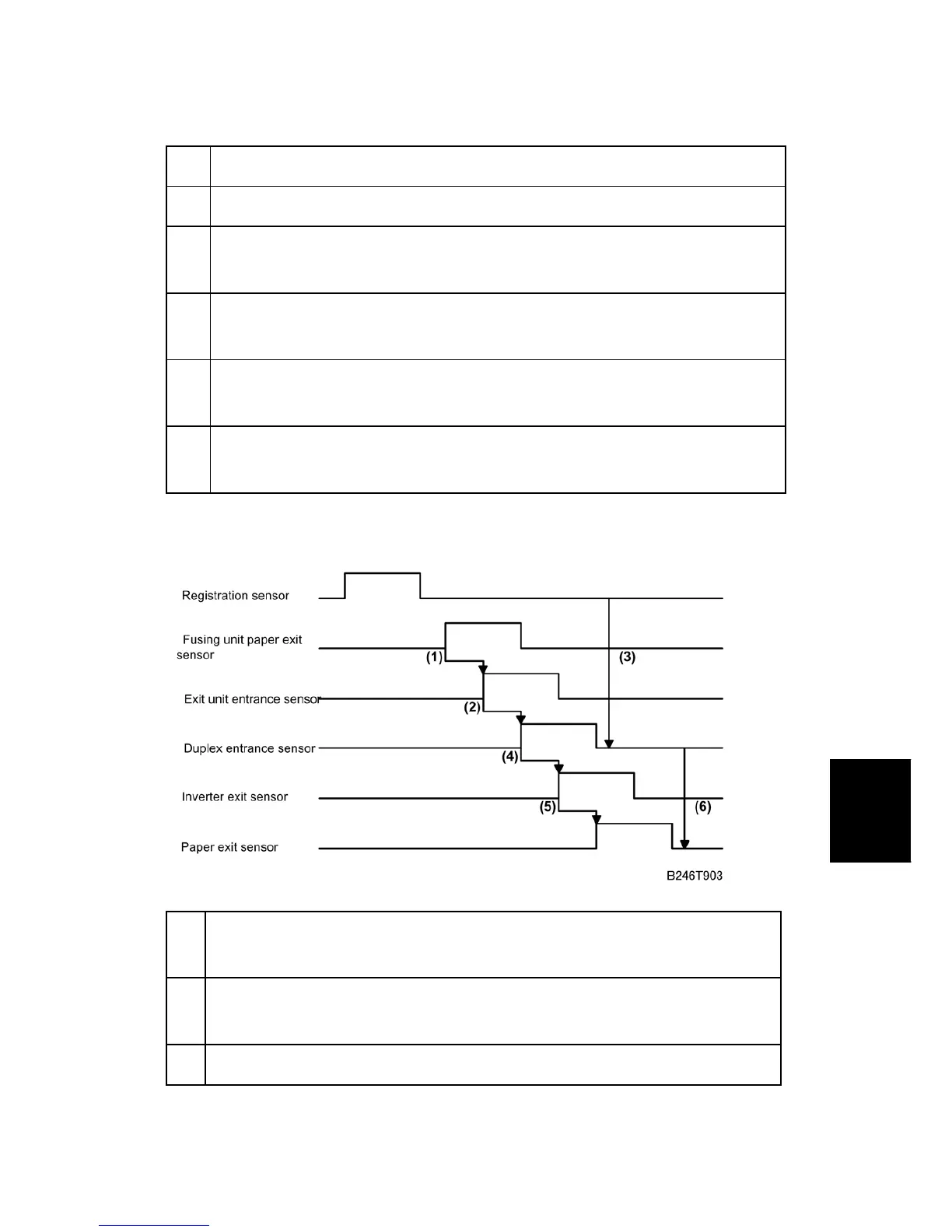

6.5.2 TRANSPORT, INVERTER, FEED OUT: FACE-DOWN
(1):
From the registration sensor to the fusing unit exit, jam detection is the same as
face-up feed out.
(2):
Exit unit entrance sensor ON > Duplex entrance sensor does not switch OFF at the
correct time.
(3): Registration sensor OFF > Duplex entrance sensor does not switch OFF at the
