Electrical Components: Main 1
SM 43 D454
Multi-Folding
Unit FD5000
D454

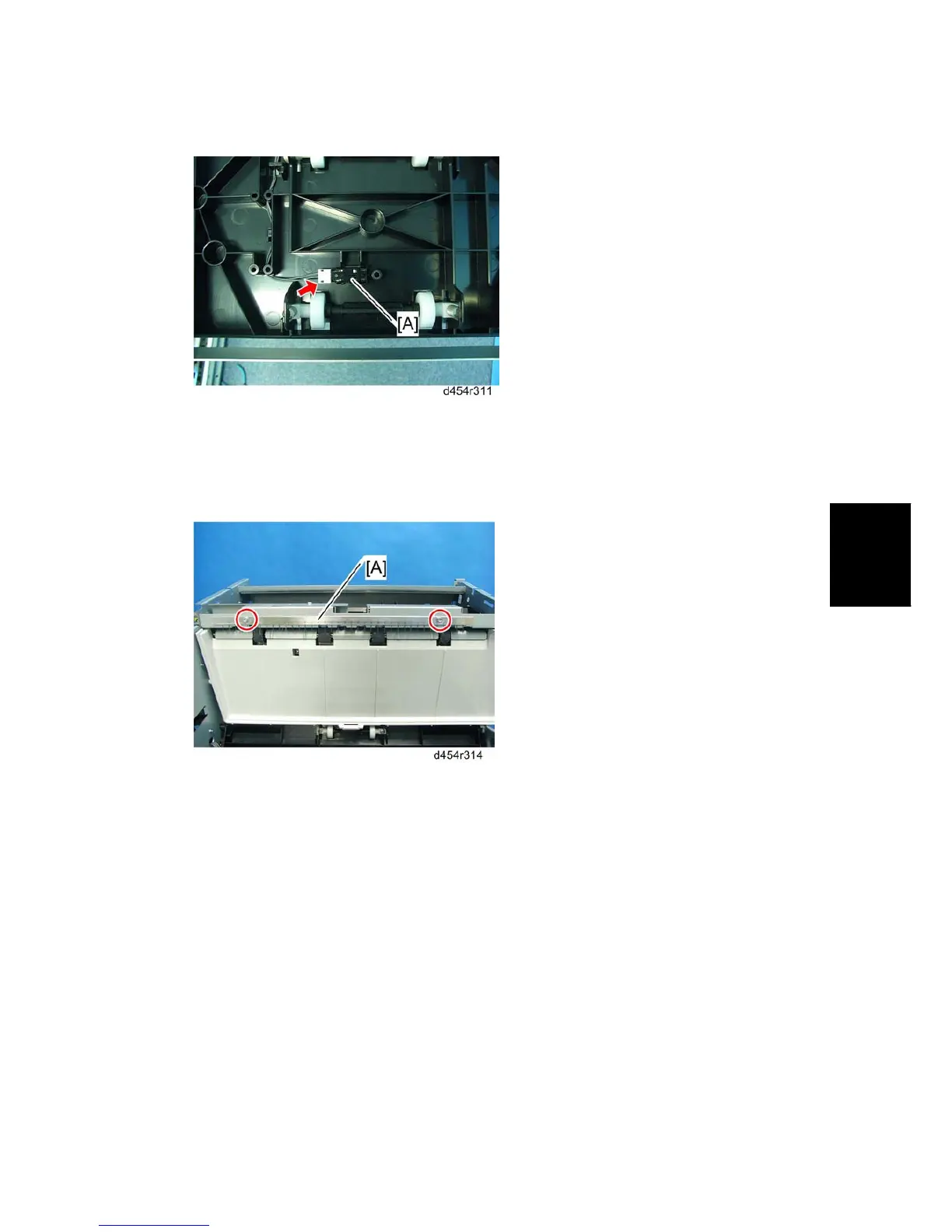

3. Horizontal path exit sensor ( [A] x 1)
1.6.6 DISCHARGE BRUSH 1
1. Top cover ( p.2)
2. Discharge brush 1 [A] ( x 2)
1.6.7 DISCHARGE BRUSH 2
1. Top tray ( p.5)
